Tools Menu
Tools Menu in ROCK IMAGER® plays an important role in maintaining optimal system performance. It provides access to various tools that directly interact with the hardware, enabling users to monitor, manage, and test various aspects of the system's functionality.
Important: Only advanced users or FORMULATRIX support are allowed to modify any settings in this menu!

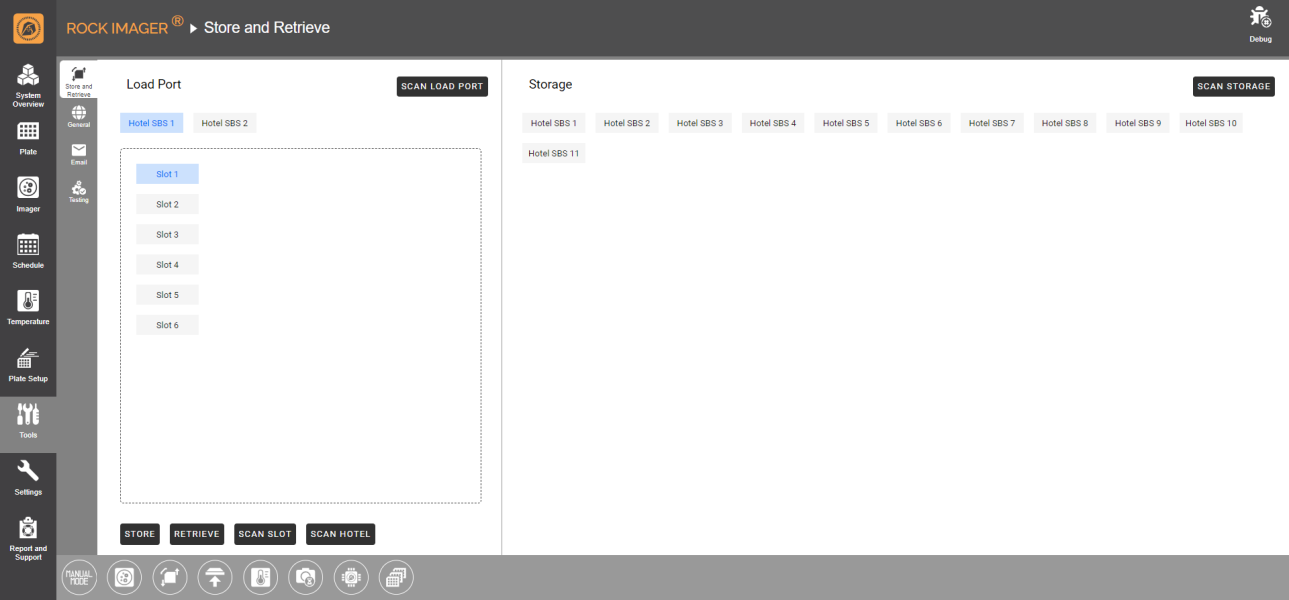

Tools Menu
The Tools menu consists of a Debug tool and four sub-menus: Store and Retrieve, General, Email, and Testing.

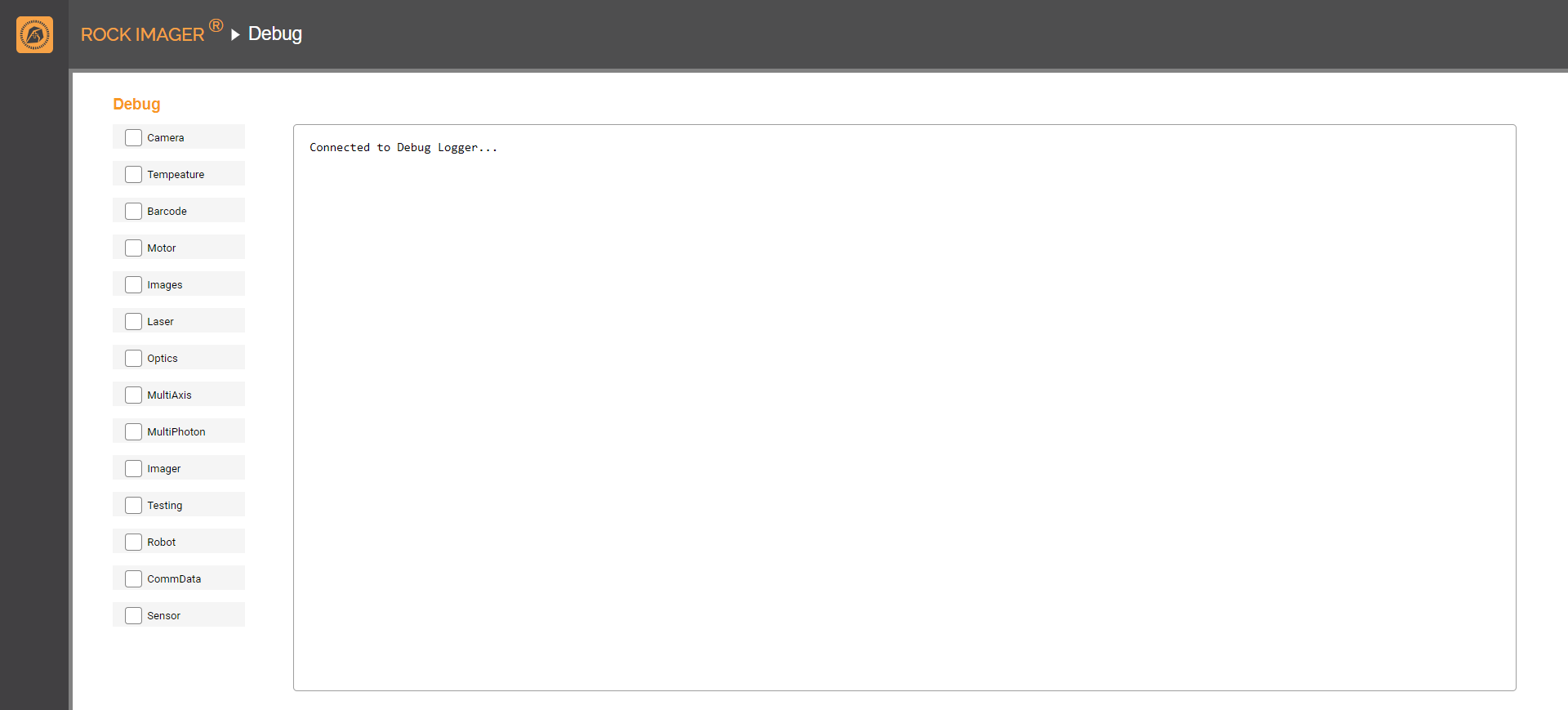

Debug Tool
Debugging is useful for monitoring “behind the scenes” activities of each available feature by displaying its log when clicked.
Debug Tool

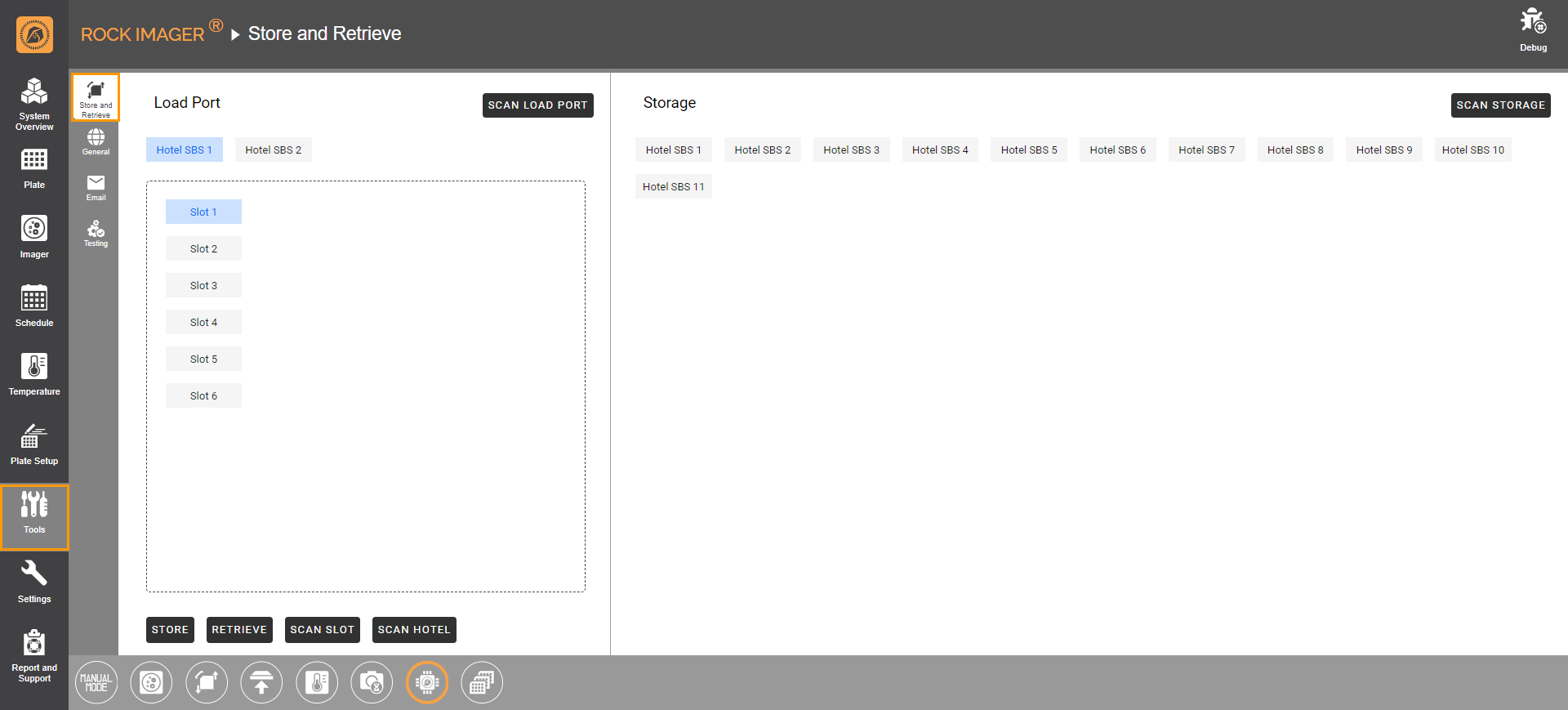

Store and Retrieve
This sub-menu manages plate movement within the system, addressing potential issues related to storing and retrieving plates.
Store and Retrieve Sub-menu

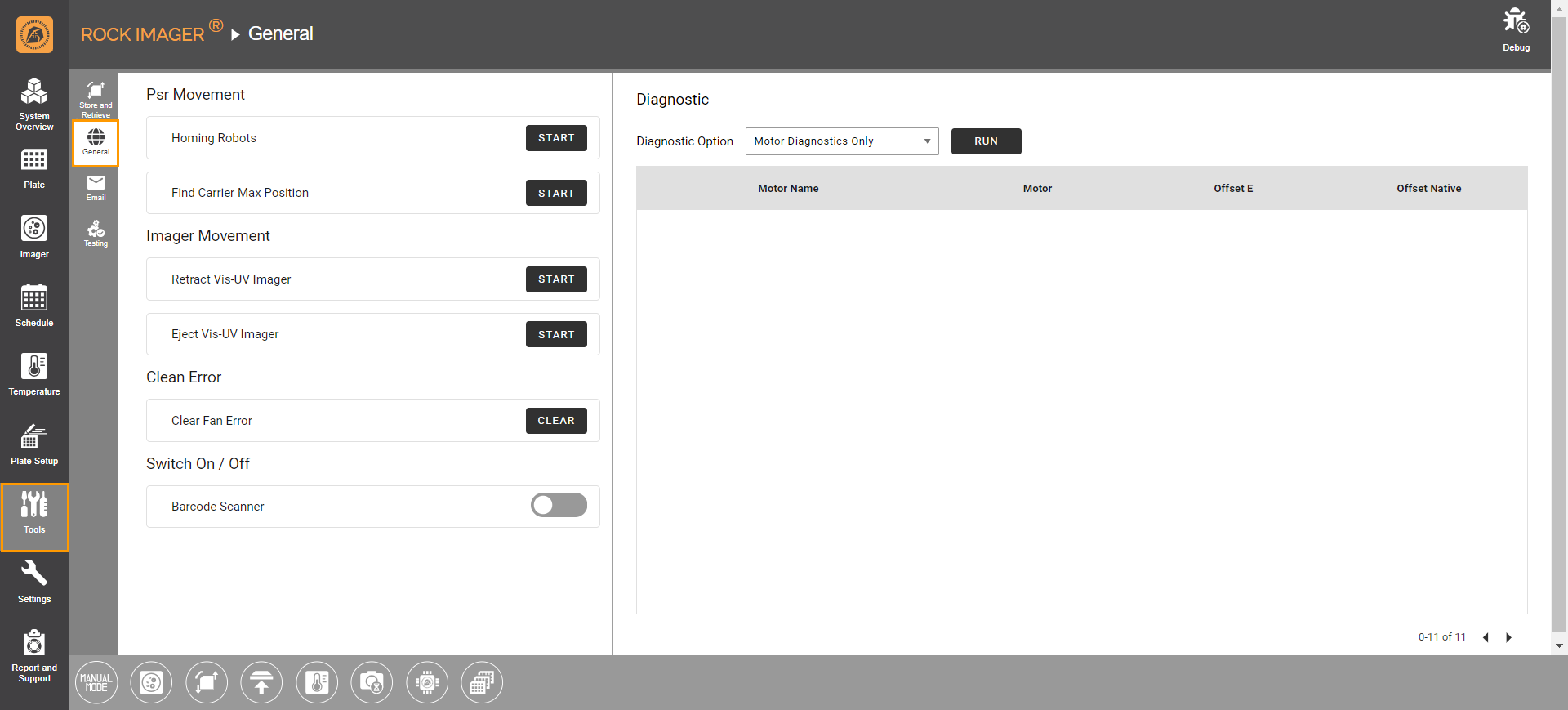

General
General sub-menu facilitates functionality testing of general tools within the system, such as:
- PSR Movement
- Imager Movement
- Clean Error
- Switch On / Off
- Diagnostic
General Sub-menu

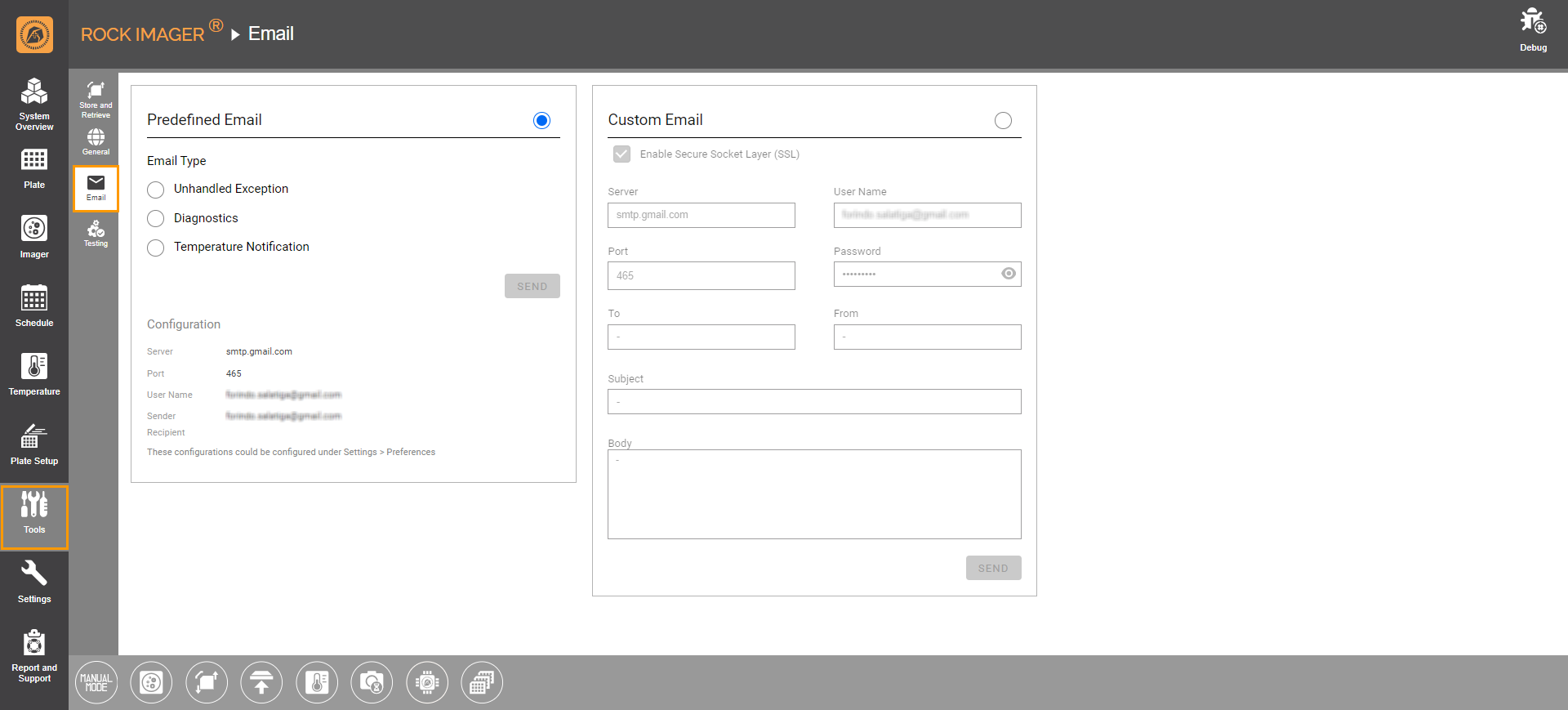

This sub-menu is used to test email functionality by sending a predefined or custom email to notify either the customer or support team of any system errors.
Email Sub-menu
Testing
Testing sub-menu verifies the functionality and performance of specific tools in the system.
Testing Sub-menu
This sub-menu comprises Imager Testing, PSR Testing, and Movement Testing tabs.
| Tab | Description |
|

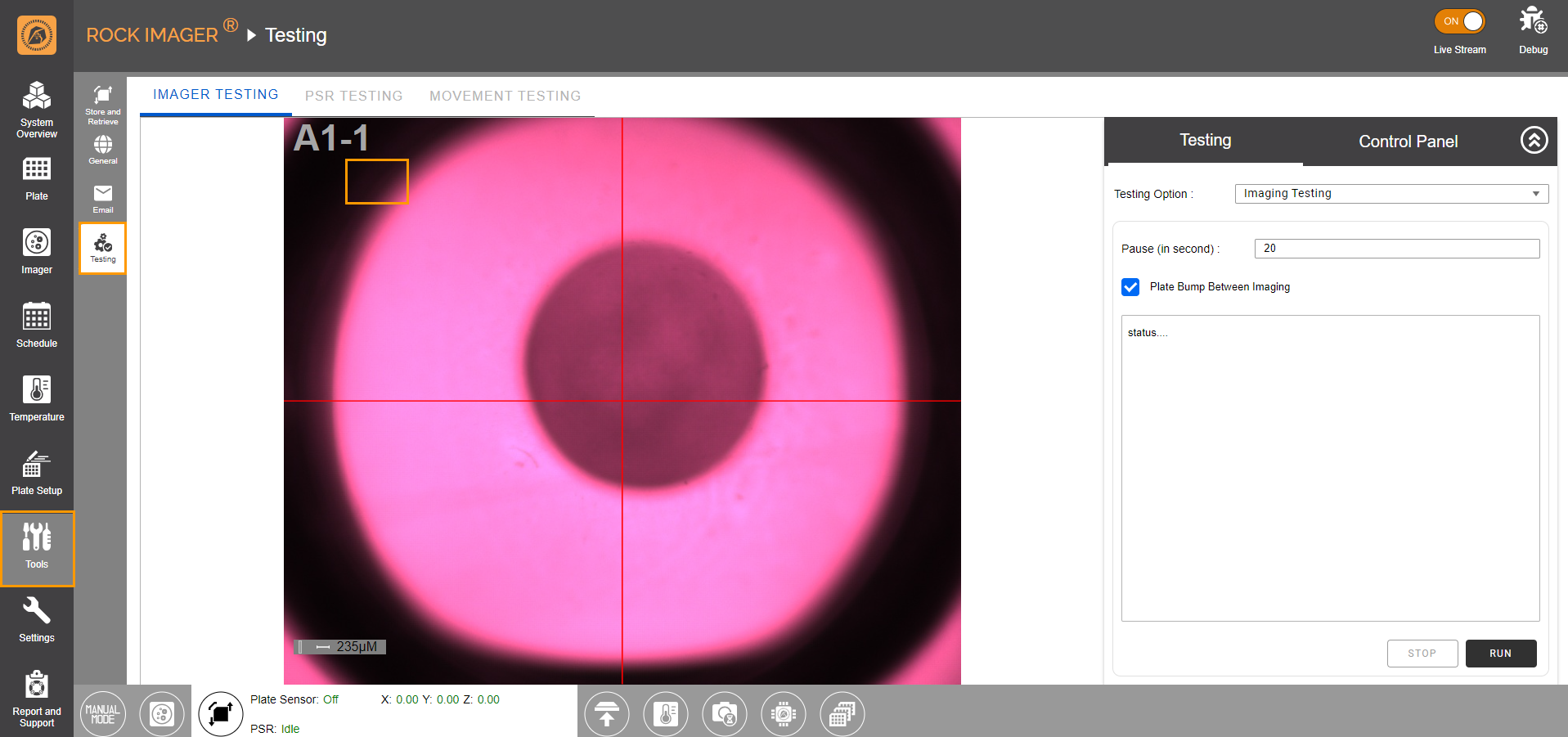

Imager Testing |
Ensures that the imager captures clear and accurate images. |
|
|

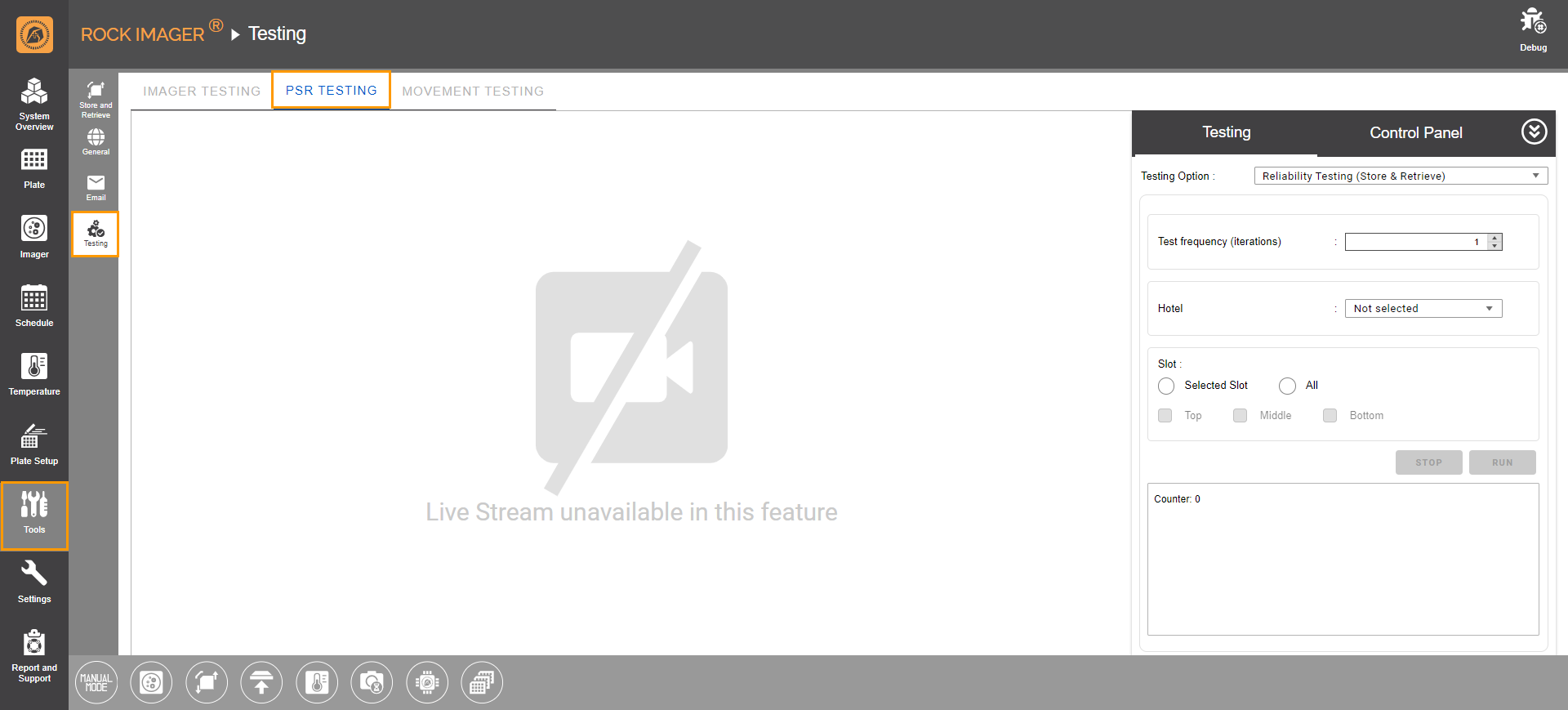

Verifies that the PSR properly retrieves and handles plates. |
|
|

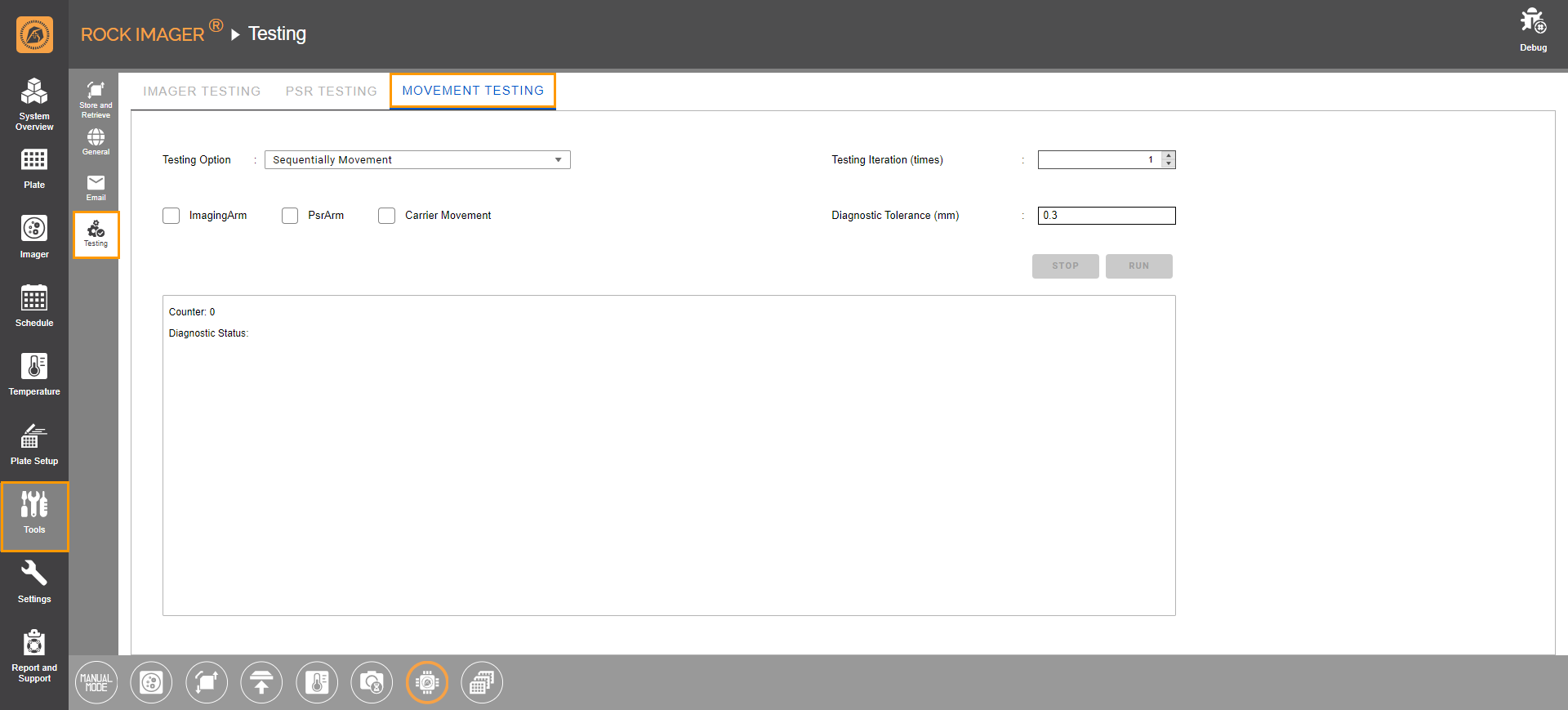

Simultaneously or sequentially tests the movement capabilities of motorized components, including the Imaging arm, PSR arm, and Carrier. |
