Specifications

Here are the specifications for your FLO i8 system:

Dimensions

• Width: 782 mm (30.8")
• Height: 874 mm (34.4")
• Depth: 660 mm (25.7")
• Weight: ~74 kg (163 lb)

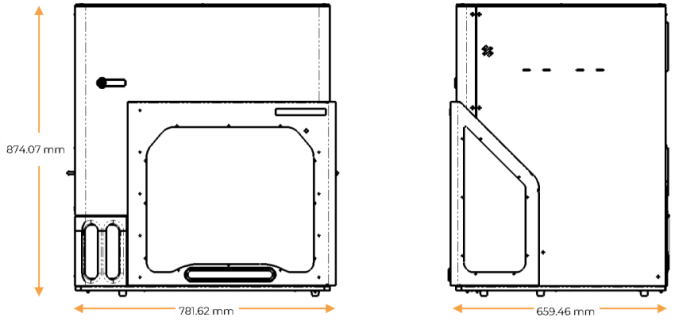

FLO i8 Front and Side Views

System Requirements

Electrical Requirements

Input

• Voltage: 100 - 240 V AC
• Frequency Range: 50 - 60 Hz
• AC Current: 5.3A/115VAC, 2.65/230VAC

Power Cord

• Power supply is available with either NEMA 5-15 (US) or CEE 7/4 (Germany/EU) power cords. FLO i8 power supply can also be used with any standard C13 appliance power cord.

Environment Requirements

• Operating Temperature: 20-30°C (68-86°F)
• Storing Temperature: 15-30°C (59-86°F)
• Operating Humidity: 85% or less
• Storing Humidity: 95% or less
• Maximum Altitude: 1600 m (5249 ft)
