Designer View

There are three ways to view your dispense design using the Mantis software: Designer View, Summary View, and Volume Error View.

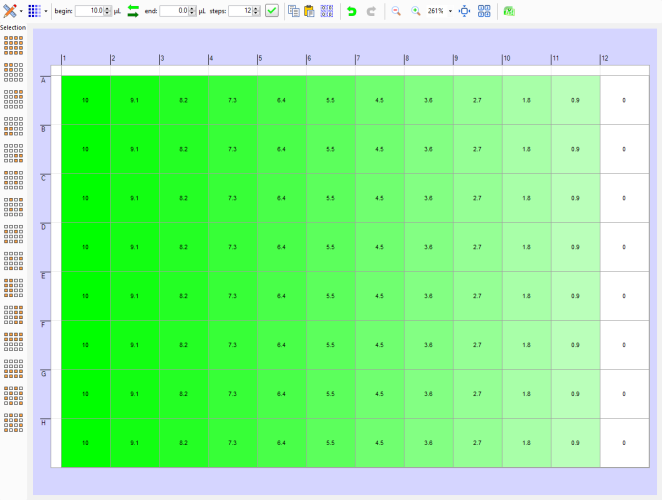

Designer View is displayed by default. Use this view to design your plate dispense.

• A green to white gradient represents the amount of liquid to be dispensed in each well.
• Pure white means nothing will be dispensed.
• The darkest green represents the most volume of liquid to be dispensed.
• The volume map shown is specific to the reagent selected in the Dispense List.

Grid-Based Custom Plate Type Designer View
