Before running a dispense, you need to prepare the hardware. If you're not familiar with the components, please see Hardware Overview.
This topic will explain how to station every possible component of the NT8. You may not have to set up each component for a dispense, so make sure to read the quick start guide before prepping your hardware to avoid unnecessary hardware setup.
This tutorial covers the following topics:
This tutorial covers the following topics:
Make sure that you have attached the sample blocks to the protein source.

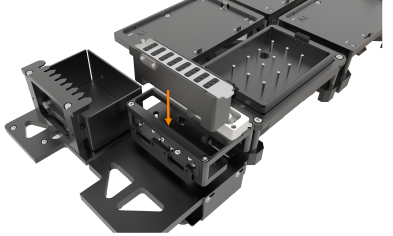

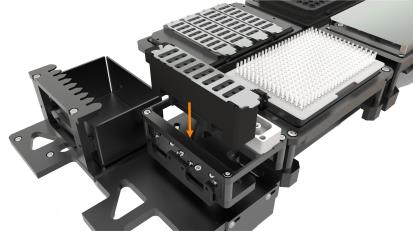

Place the protein source on the protein source station.
The LV Protein Block .......................................................................................................................The HV Protein Block

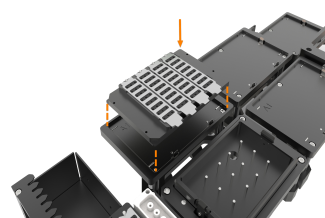

Place the Multi HV Protein Tray on Microplate Station 3.
Make sure it is secure.
The Multi HV Protein Block

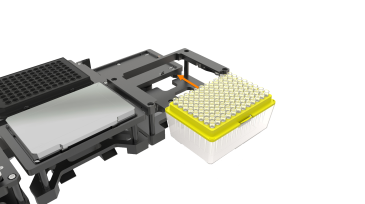

Place the LV tip caddy on the LV tip caddy station.
Make sure it is secure.
Slide the tip caddy into position carefully, so as not to dislodge any of the tips.
The LV Tip Caddy

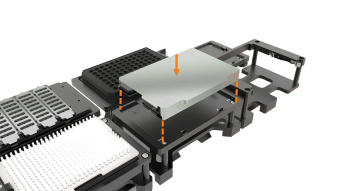

Put the reference plate on the desired microplate station.
Make sure the arrow mark position is on the top-right corner.
The Reference Plate

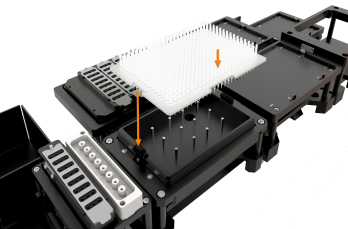

Click the button
to move the NT8's head to the left and stage back. This will allow you to slide the HV tip caddy into place.
The HV Tip Caddy
|
|
