Accessories

When you purchase NT8, you will receive an accessories kit containing the following items. You can also contact sales@formulatrix.com if you would like to purchase any of the items seen below.

Items	Images	Description
Low Volume (LV) Tips	LV Tips	LV tips are sold by cases of 10 tip boxes that contain 384 tips each, or in a master case that contains 10 cases of 10 tip boxes.
Disposable Protein Tray	LV Trays HV Trays	Disposable protein trays come in high volume and low volume versions and come in packs of 100 trays. Note: Two magnet clamps (for LV and HV protein trays) are also included in the accessories kit to secure the protein tray to the top of the protein block.
Protein Block	Protein Block High Volume (HV) Multi Source Protein Block	A replacement part for the protein block that holds protein trays. The NT8 standard kit comes with both low volume (LV) and high volume (HV) protein blocks that are capable of holding 3 μL or 13 μL of protein, respectively. Note: A High Volume (HV) Multi Source Protein Block and tips are also available as a replacement part or optional accessory to support experiments that need more protein than a standard Protein Block is designed to hold.
LCP Starter Kit	LCP Sandwich Monoolein LCP Syringe LCP Syringe Coupler	The LCP starter kit includes one monoolein, an LCP syringe coupler, six short 26 gauge needles, five LCP sandwich plates and seals, and two 100 μL syringes.
(OPTIONAL) Plate Copy Pipette Tips	Plate Copy Pipette Tips	Plate copy, or HV, tips are used for plate copy or daughter plate creation experiments.
UVP Hanging Drop Seal	UVP Hanging Drop Seal	The UVP hanging drop seal is where you dispense the solution into in a hanging drop experiment.
Reference Plate	Reference Plate	The reference plate is an aluminum plate used by the Support team to tune plate stations. It has reference holes located at each corner which are used as targets to tune drop positions. The NT8 Control Software determines all of the drop positions for your plate from these four points.
MRC 2 Well Crystallization Plate	MRC 2 Well Crystallization Plate	Two round-bottom crystallization plates are included in the accessories kit to help you get started.
HD Seal Jig Transfer	HD Seal Jig Transfer	The HD seal jig transfer is used to attach the HD seal to a microplate. It is used in hanging drop experiments.

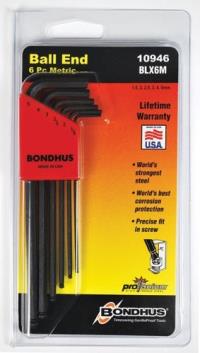

Ball Point Hex Keys	Ball Point Hex Keys	Also known as an Allen wrench, ball point hex keys are included for troubleshooting purposes. They can also be used to tighten or loosen the NT8 shipping bolts.
Power Cable	European Power Cable Australian/Chinese Power Cable American/Japanese Power Cable Swiss Power Cable British Power Cable	The power cable is approximately 15 feet long, and is used to connect power to your NT8.
USB Cable	USB Cable	The USB cable connects the NT8 to a PC.
Water Carboy	Water Carboy	The water carboy is the water reservoir for the NT8. It is used by the humidifiers and the wash station.
Waste Carboy	Waste Carboy	The waste carboy is used for liquid waste.
Wash and Waste Tubes	Wash tube Waste Tube	The wash and waste tubes connect to the wash and waste carboys and the wash and waste inputs on the back of the NT8.
LV Head and LCP Head Calibration Pin	LV Head and LCP Head Calibration Pin	The pin is used for calibrating the LV head and the LCP head.
FORMULATRIX Mouse Pad	FORMULATRIX Mouse Pad	An exclusively-designed accessory by FORMULATRIX.
