Wash Station

The wash station area is where you add the Wash Tip command and set the Wash Time. These settings are used for any dispense using the LV head.

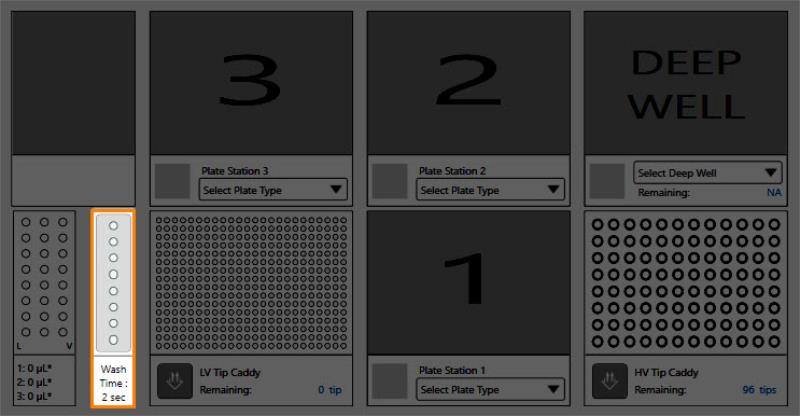

Wash Station

Make sure you have added the Pick Tip command.
Double-click the Wash Station. The Wash Tip command will then appear in the Task List panel on the right side of your screen.

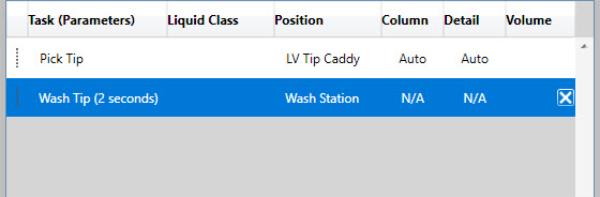

Wash Tip Command

Right-click the Wash Stationimage and select Open Advanced Options. The Task Details window appears.

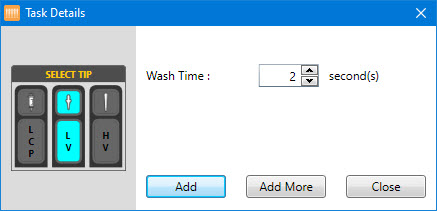

Task Details Window

Tip: If you have already added the wash command to the Task List, you can set the wash time by double-clicking the Wash Tip command in the Task List panel.
Set the wash time by typing a new value into the corresponding field, or clicking the up or down arrows to increase or decrease the wash time.
1. Add: Adds the specified settings to the Task List and closes the Task Details dialog box.
2. Add More: Adds the specified settings and then waits for you to add more commands as needed to the Task List.
3. Close: Exits the Task Details dialog box.
