Fixing Silicone Seals and Chip Leakage

You must check the chip position and the silicone seals on the tubing block and/or on the base chip, if you notice any of the following issues when using µPULSE.

• You hear a hissing sound in µPULSE.
• You see bubbles in the diaphragm when running a profile.

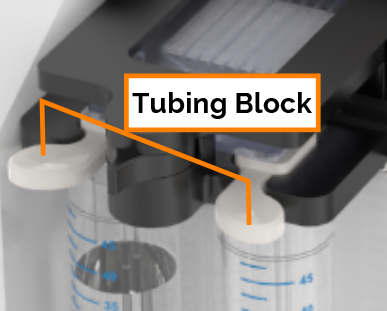

Tubing Block Position in the µPULSE Instrument

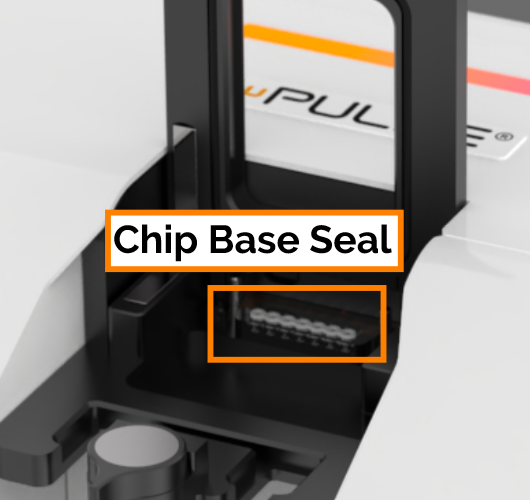

Chip Base Seal Position in the µPULSE Instrument

If you encounter any of these issues, the silicone seals might be leaking. Thus, you must replace the tubing block and/or the chip base seal. Follow the tutorial below to fix the leakage.

To replace the tubing block and the chip base seal:

1. Open the chip cover and remove the filter chip.

2. Check the silicone seals on the tubing block and on the base chip under the chip cover. Make sure the seals are not torn or detached.

3. OPTIONAL: The µPULSE device includes a spare tubing block and a replacement seal for the base chip seal. If the seal is broken, replace them with the new ones.

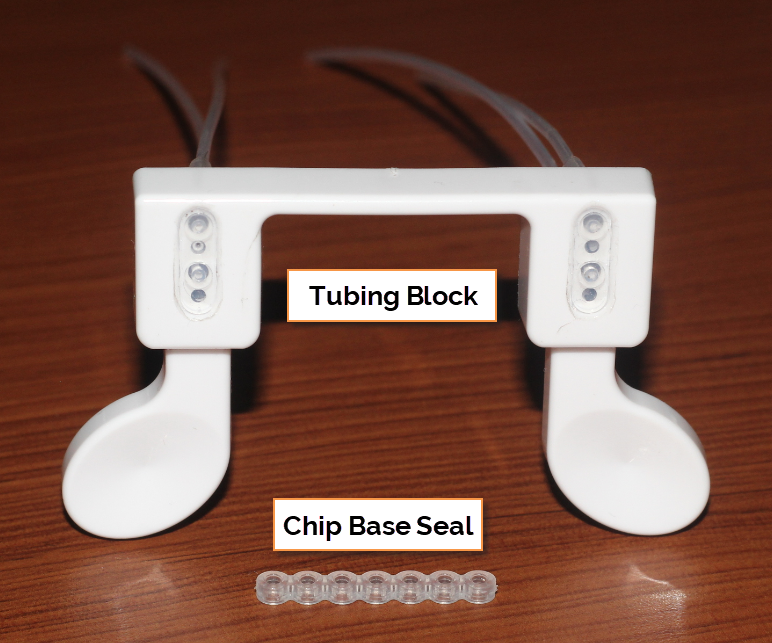

   A Tubing Block Spare and Replacement Seal

4. Reload the chip and make sure the chip position fits the inputs, and then close the chip cover.

5. Run the µPULSE instrument. If the problem persists, please contact support@formulatrix.com for assistance.
