µPULSE filter chips come with various membrane cutoff sizes: 5, 10, 30, 50, 100, and 300 kDa.

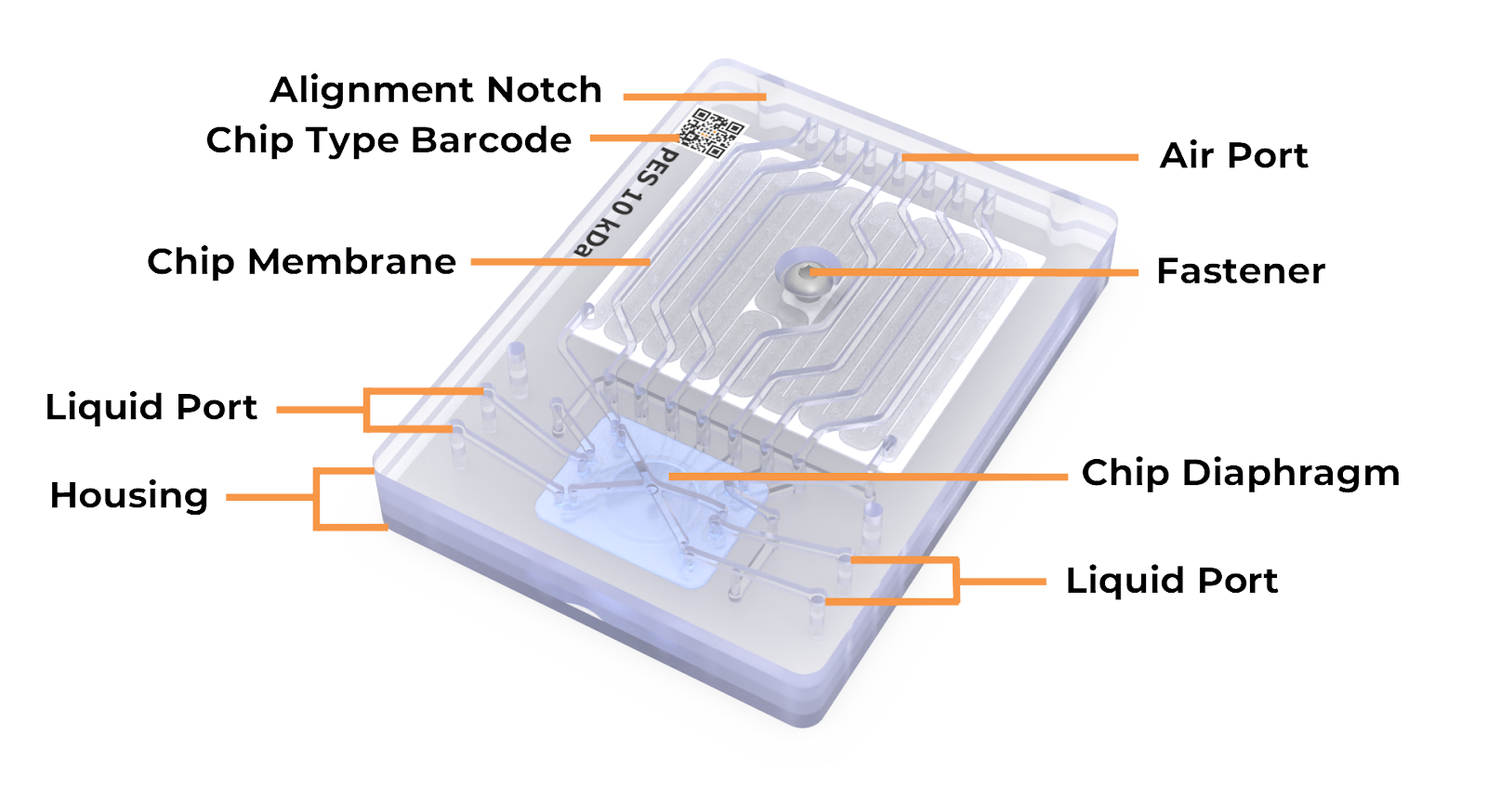

Chip Overview
Each filter chip consists of the following components:
Chip Membrane: The filtering element of the chip that separates the liquid into sample (retentate) and carrier reagent (permeate).
Chip Diaphragm: Functions to pump, as well as opening and closing the valves to direct the flow of liquid.
Chip Type Barcode: Identifies the type of chip.
Liquid Port: Seals to the transfer tubing to connect the liquid(s) to the chip.
Air Port: Channels that allow air to flow into the chip, actuating the diaphragm to control the movement of liquid.
Alignment Notch: Ensures correct chip positioning during installation, preventing it from being installed incorrectly.
Housing: The outer structure of the chip encapsulates and protects the internal components.
Fastener: Used to secure the integrity of the chip.
Note: Filter chips can be purchased from the FORMULATRIX online store at https://wcm.formulatrix.com/.
|
|
