Creating a Screen Layer

A screen layer is a layer defined by a screen lot. Each screen layer can only have one screen lot.

To create a screen layer:

1. Open an experiment OR create a new one.

2. On the experiment page, go to the Canvas menu and open the Design submenu. Click the Add Layer button on the top bar and select Screen Layer.

   Note

   You can add a screen layer automatically by adding a screen from the Explore tab in the side panel.

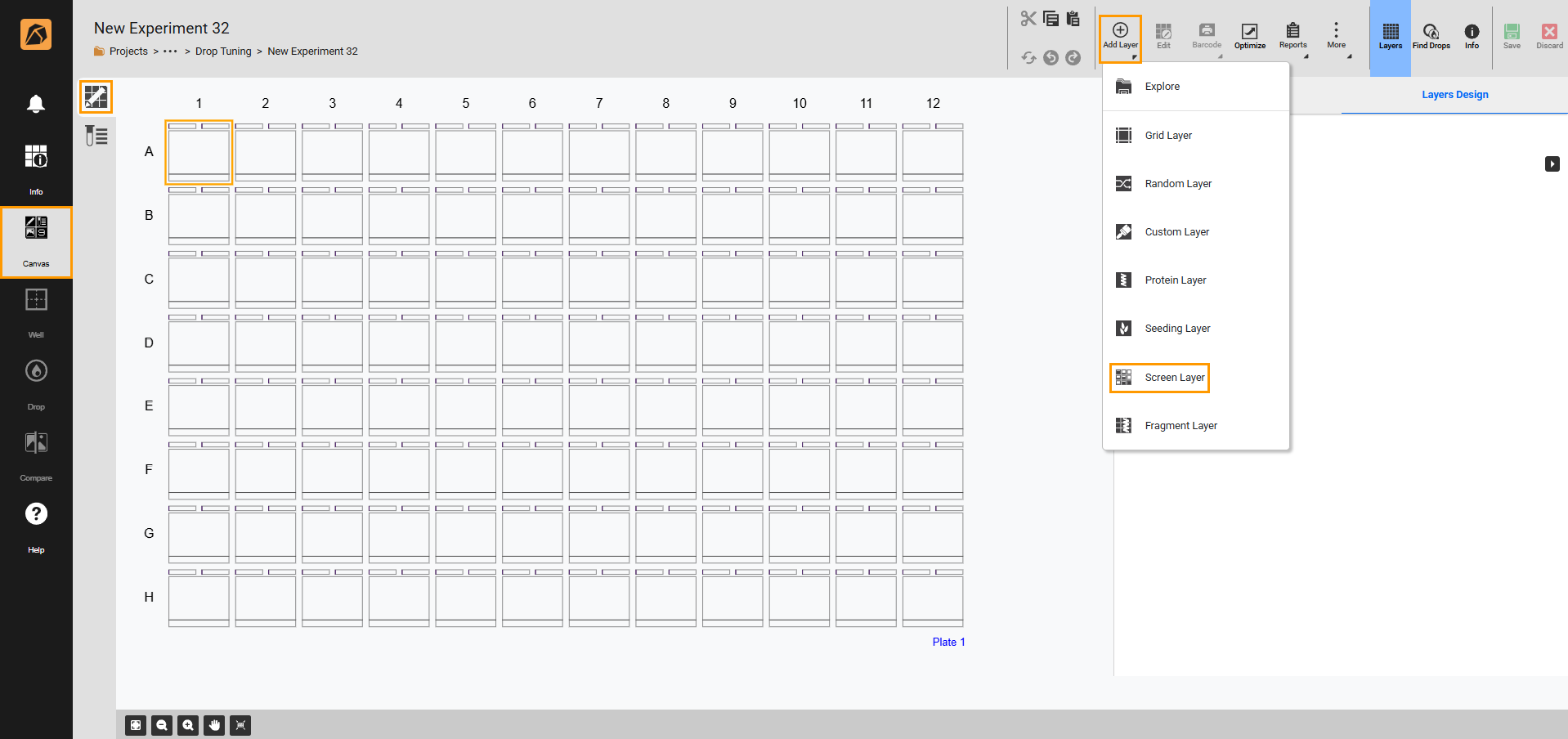

   Selecting Screen Layer

3. Select a screen layer area accordingly.

   1. To select all wells, click any well on the canvas.

   2. To select some wells, click and hold the left button of your mouse while dragging it over some desired wells.

4. Select a screen from the Select Screen side panel. By default, ROCK MAKER will show all screens from your ROCK MAKER database.

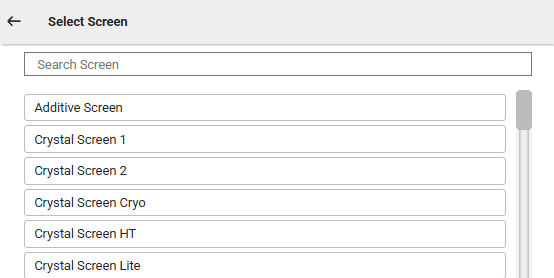

   Selecting a Screen

5. A panel to edit the screen will appear.

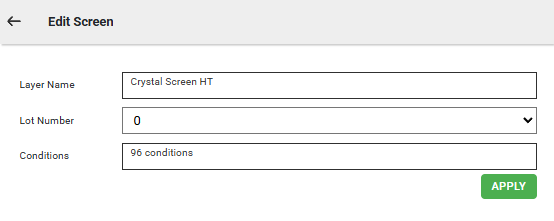

   Editing a Screen

   • Click the Layer Name field to select another screen.

   • Select a lot number in the Lot Number dropdown menu.

     Note

     The Conditions field will be automatically filled.

     Click Apply

6. In the available panel (the Screen subtab), you will see the Edit and Delete buttons. You can use them to edit or delete the screen you select.

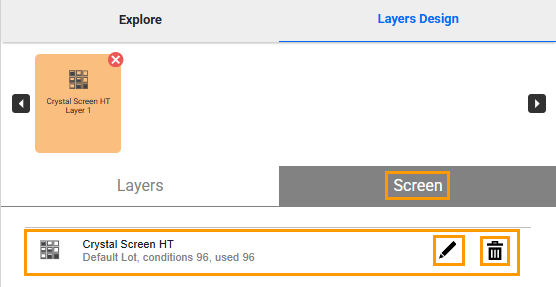

   Screen Subtab

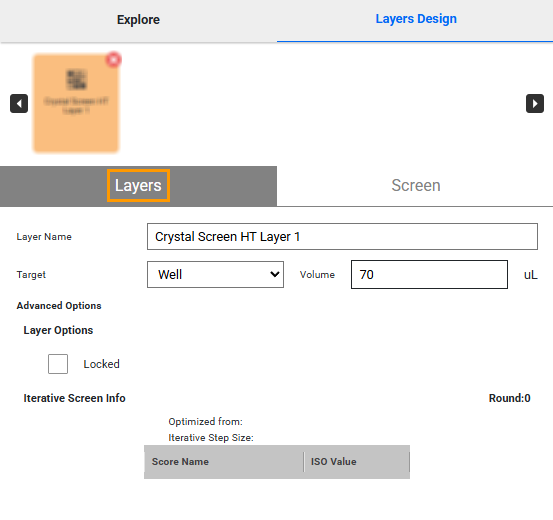

7. Go to the Layers subtab and complete the layer information.



   Layers Subtab

   • Type a name in the Layer Name field or use the default name.

   • Select a target from the Target dropdown menu.

   • Type a volume in the Volume field.

   • Tick the Locked checkbox in the Layer Options field.

8. On the toolbar, click Save .
