Creating a Seeding Layer

When you already have a seed, you can apply it to a layer. This is what we call a seeding layer.

To create a seeding layer:

1. Open an experiment OR create a new one.

2. On the experiment page, go to the Canvas menu. Then, click Add Layer on the top bar and select Seeding Layer.

   Note

   You can add a seeding layer automatically by adding a seed from the Explore tab in the side panel.

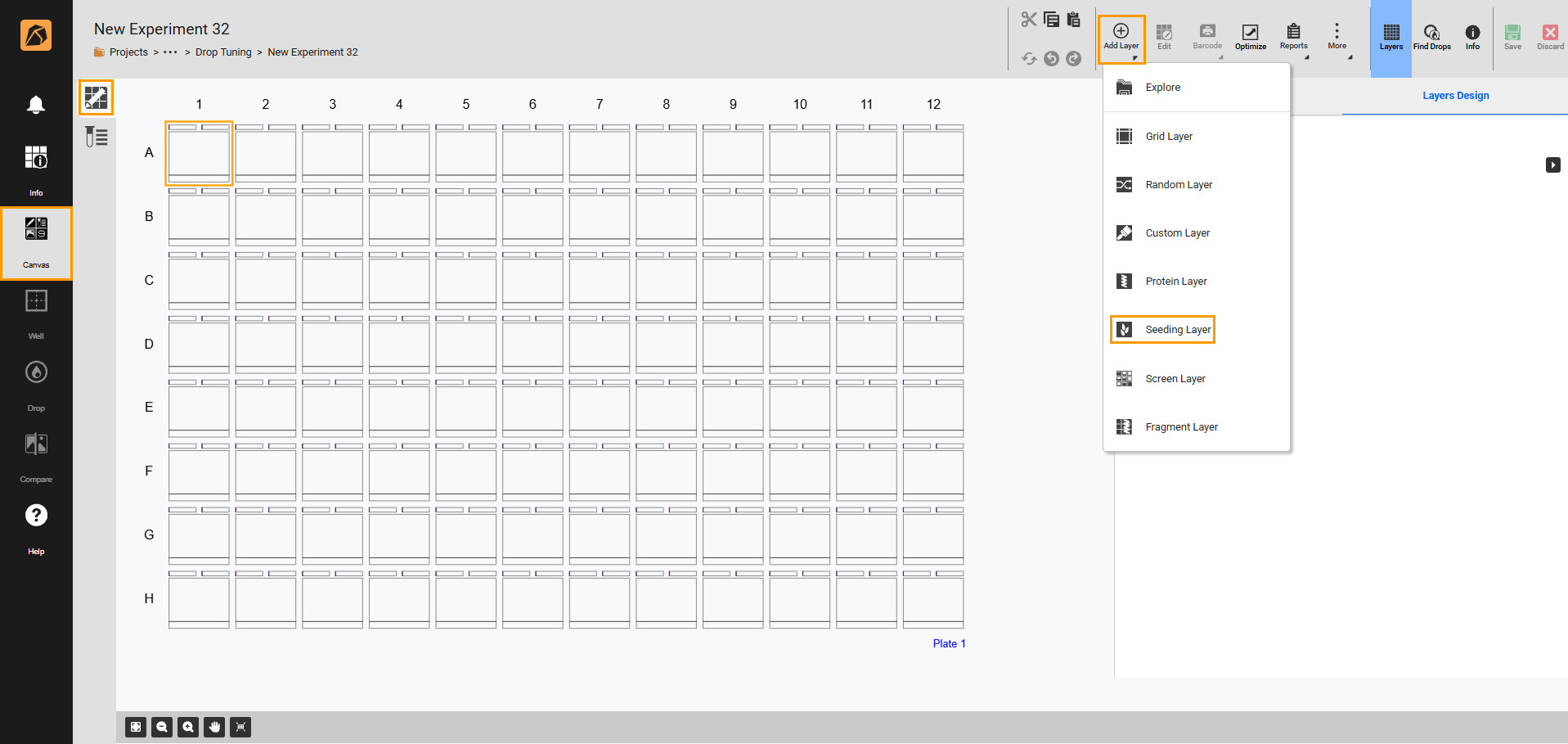

   Selecting Seeding Layer

3. Select a seeding layer area accordingly.

   1. To select all wells, click any well on the canvas.

   2. To select some wells, click and hold the left button of your mouse while dragging it over some desired wells.

4. The Select Seed side panel will appear. Then, select a seed.

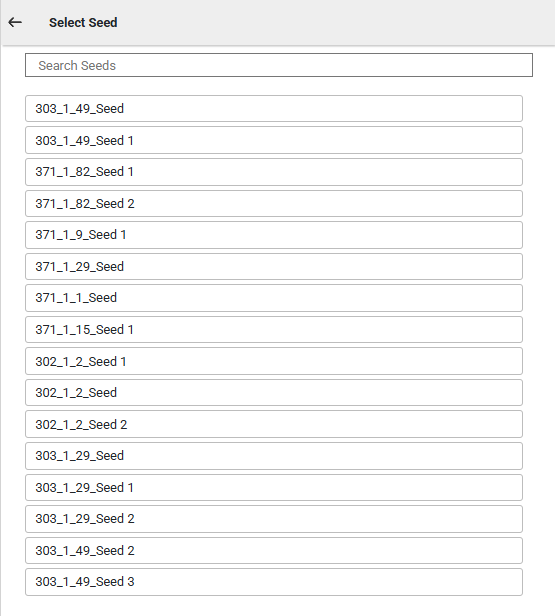

   Choosing a Seed

5. Adjust the seed settings in the Edit Seed panel.

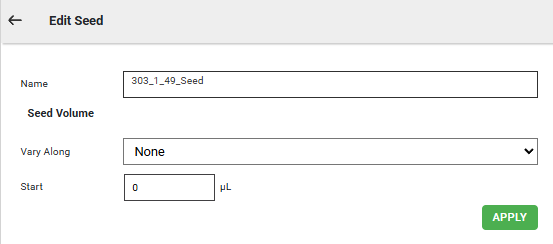

   Adjusting Seed Settings

   • Click the Name field to change the seed.

   • Select a seed volume variation from the Vary Along field.

   • Type a start seed volume in the Start field.

   Then, click Apply.

6. To modify a seed setting, click the Edit or Delete buttons in each seed box in the Seed subtab.

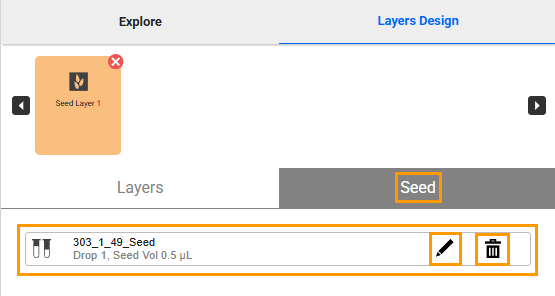

   Seed Subtab

7. Go to the Layers subtab in the Layers Design tab and do the following:

   • Type a name in the Layer Name field or use the default name.

   • Select a target from the Target dropdown menu.

   • If necessary, lock the layer by clicking the Locked checkbox.

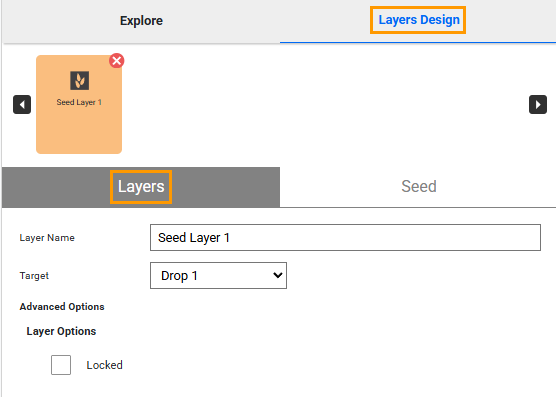

   Layers Subtab

8. Click Save on the top right toolbar.
