Creating a Screen

ROCK MAKER has a library of commercial screens that can be added to your experiments. These screens are available in 96 deep well blocks with a capacity of 2ml per well. In addition to using commercial screens in your experiments, ROCK MAKER allows you to create a personal screen.

At the moment, you can create a screen from scratch, but soon you will be able to convert an experiment to a screen.

To create a screen:

1. Open the Explore menu. Go to the Nodes panel and select Screens or Projects .

   Note

   If you select Projects , you need to open a project to enable the Screens option in the NEW button .



   Screens and Projects Nodes

2. Click NEW and select Screens to open the New Screen tab.

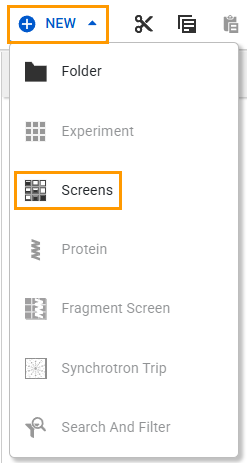

   Selecting Screens

3. Go to the Info menu and fill out your screen information. Read Info Menu to find out more.

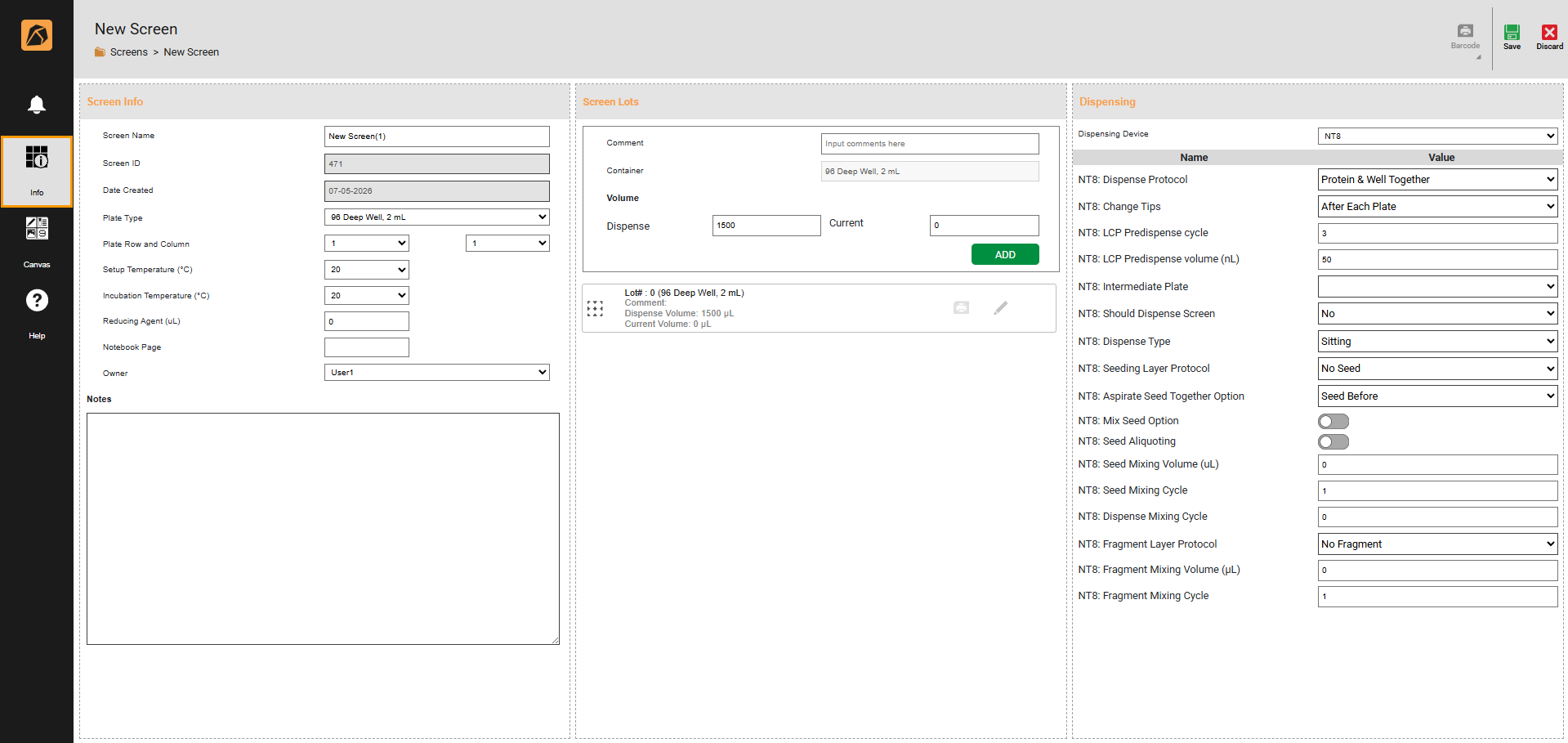

   Filling Out Screen Information in Info Menu

4. Go to the Canvas menu, click the Design submenu, and select a layer type from the Add Layer options.

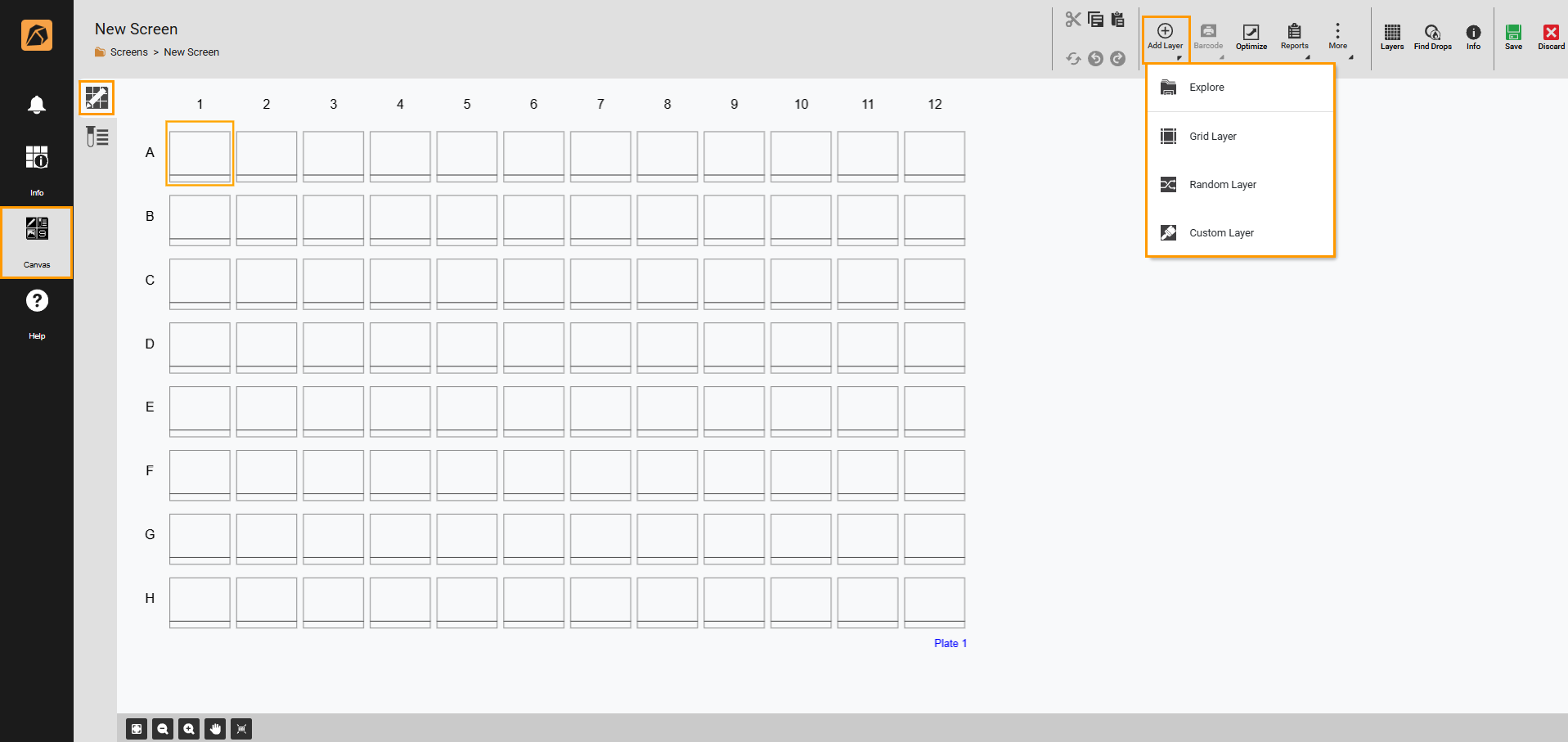

   Selecting a Layer Option

   Note

   You can add a screen from the Explore tab in the side panel to automatically create a custom layer.

5. Select the layer area accordingly:

   1. To select all wells, click any well on the canvas.

   2. To select some wells, click and hold the left button of your mouse while dragging it over the desired wells.

   Each layer requires different steps. Go to a corresponding layer to find out more.

   • Grid Layer

   • Random Layer

   • Custom Layer

6. Click Save if everything is set.

Post Condition:

By default, each screen has 1 lot.

To view the screen lot, click a screen from the Explore menu and you will see a panel appear on the right side. Click on the top right bar of the panel to display the lot information as the example below:

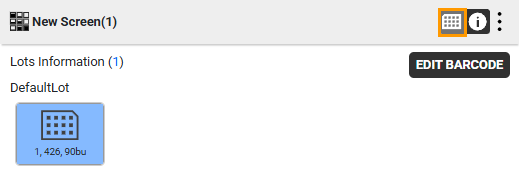

Screen Lot Information

To add a screen lot, go to Adding a Screen Lot.
