Design Submenu

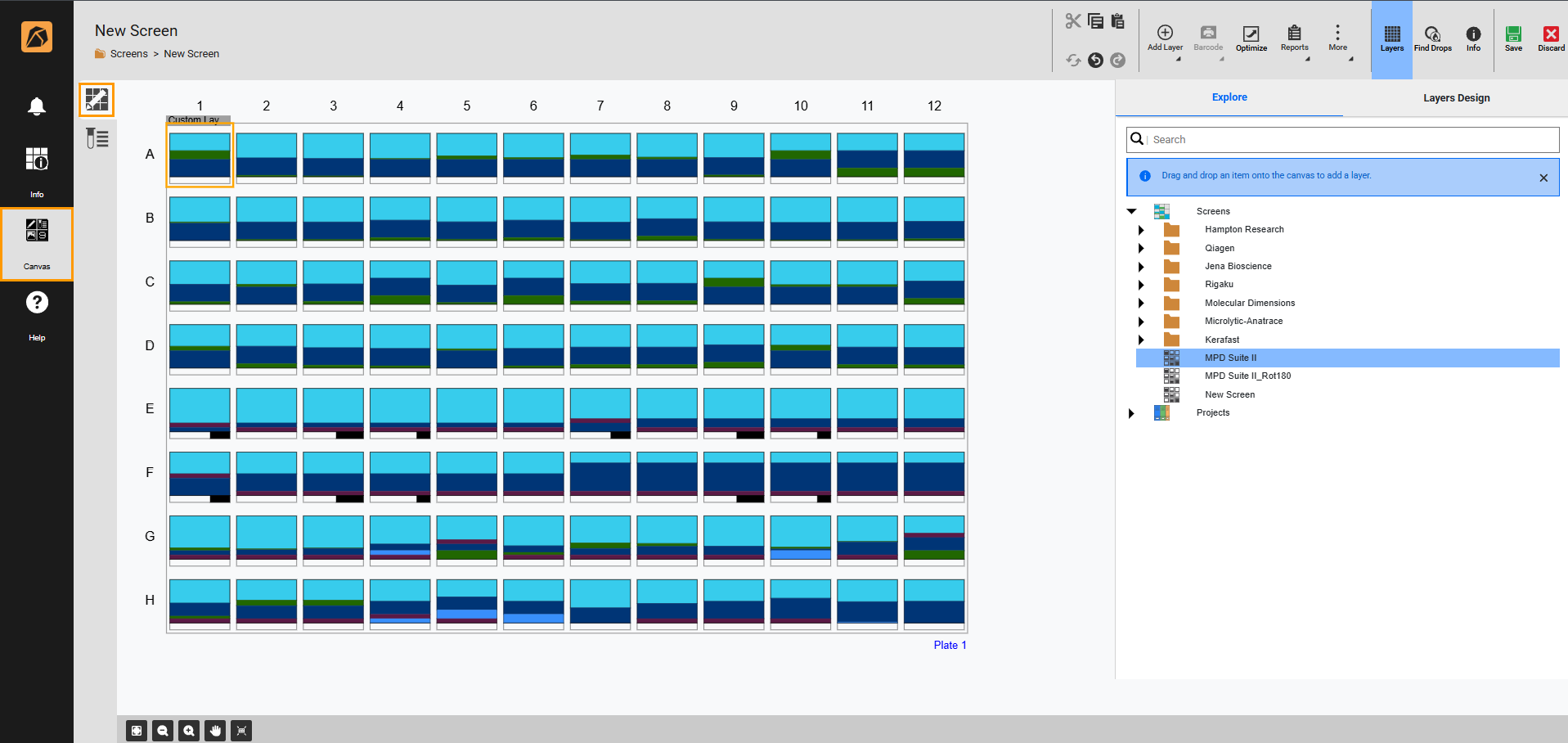

Design submenu can be accessed from the navigator bar on the left of the screen experiment page. This is where you design your screen by creating layers and specifying layer parameters on the Layers Design tab in the side panel. It gives you a visual representation of your plate, highlighting different ingredient types in different colors based on their volumes.

Design Submenu

Top Bar Buttons

Button	Icon	Description
Combo Action		Allows you to cut , copy , paste , refresh , undo , and redo settings.
Add Layer		Enables you to add Grid Layer, Random Layer, or Custom Layer.
Barcode		Allows you to print: An experiment barcode . Experiment info .
Optimize		Allows you to optimize existing screens.
Reports		Allows you to generate a Design report, which is a screen result analysis with a screen data summary in a printable format.
More		Allows you to select Rotate Canvas, Import XML Screen, Import Fluidigm Screen, Import Text File, Export XML Screen, or Export Selected Well (TXT).
Layers		Allows you to: Create a layer by dragging a screen, fragment screen, protein, or seed into wells or drops, or by double-clicking them through the Explore Tab. Modify the layer settings, such as naming the layer, selecting the target, and other related settings in the Layers Design tab. To find out more, go to Layers Overview.
Find Drops		Allows you to highlight wells of interest using different search criteria, such as ingredient, well number, or label.
Info		Enables you to access information about a plate in detail.
Save		Allows you to save your screen.
Discard		Enables you to discard screens and changes.

Bottom Bar Buttons

Button	Icon	Description
Best Fit		Allows you to adjust the display of your screen page to fit your window.
Zoom Out		Allows you to zoom out your software window.
Zoom In		Allows you to zoom in your software window.
Pan Image		Allows you to pan the area while zooming in.
Fit to Plate		Allows you to adjust the display of your screen page to fit your plate.
