Info Menu¶

Info menu is where you set up your screen information, screen lots, and dispensing robot. It is the default view when you create a new screen.

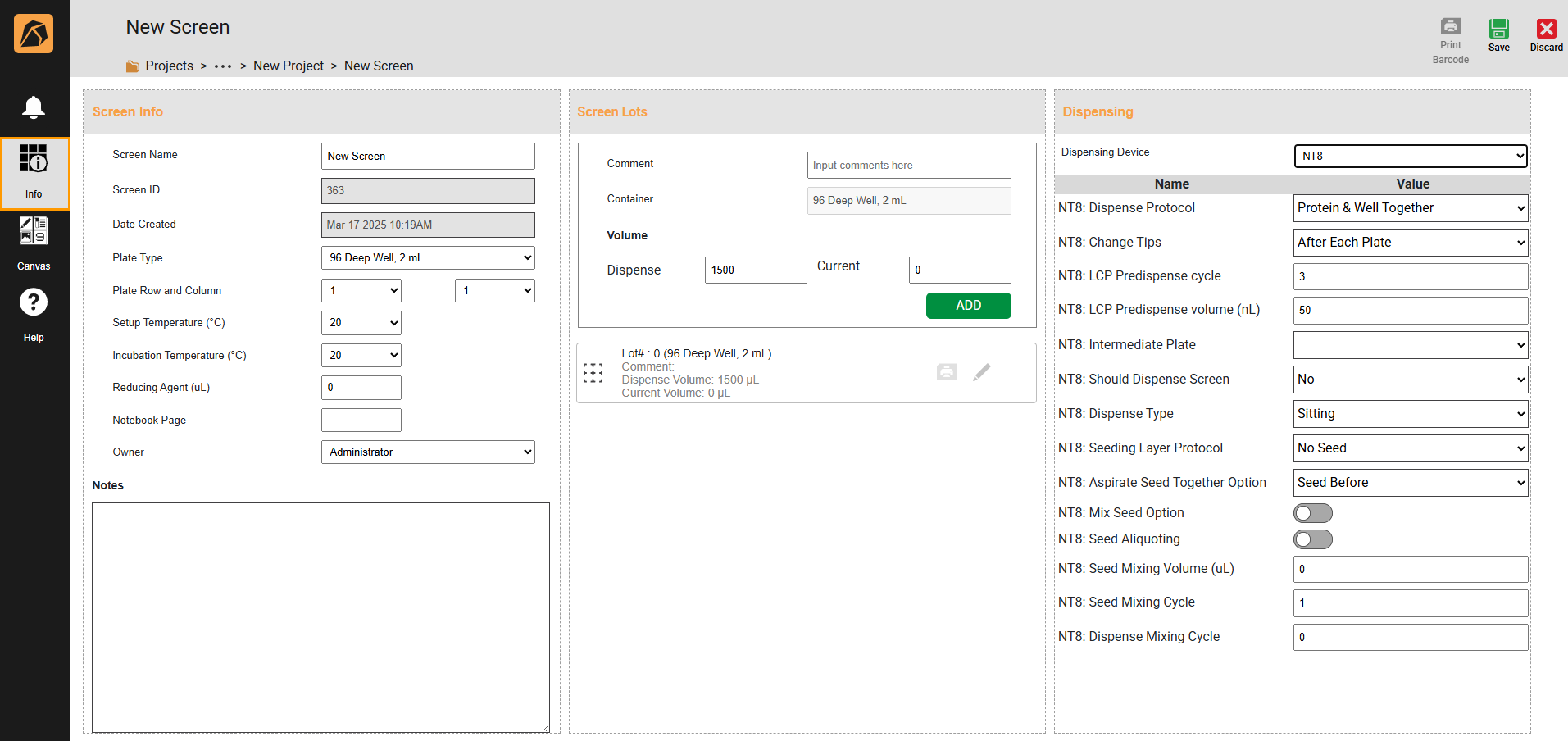

Info Menu

The Info menu covers the Screen Info, Screen Lots, and Dispensing sections.

Top Bar Buttons¶

Button	Icon	Description
Print Barcode		Allows you to print your screen barcode.
Save		Allows you to save your screen.
Discard		Allows you to cancel a new screen and discard screen changes.

Screen Info Section¶

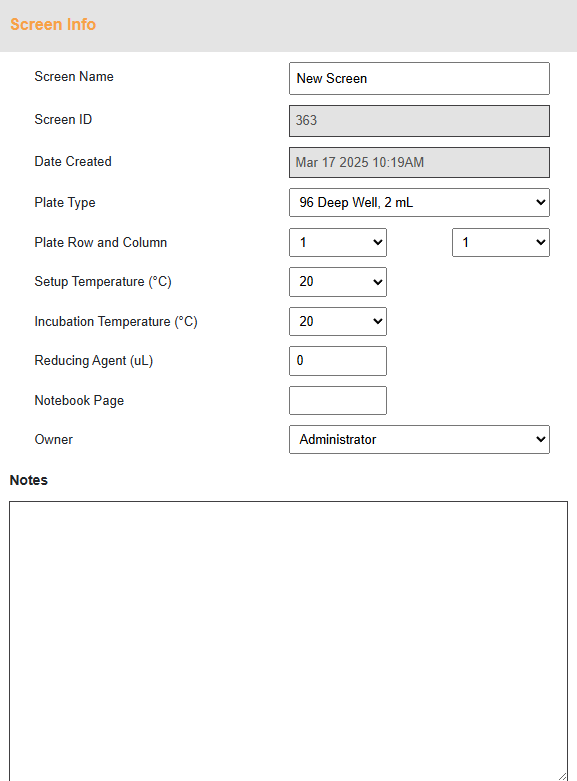

Screen Info Section

Field	Description
Screen Name	Allows you to type a screen name or use the default name.
Screen ID	Automatically generates a screen ID.
Date Created	Automatically generates the creation date and time of a screen.
Plate Type	Allows you to select a plate. Note The Plate Type field will be unselectable if you only have one plate option.
Plate Row and Column	Allows you to define the row and column of your plate. Note This field will be unselectable if your screen has been dispensed.
Setup Temperature (°C)	Allows you to select the temperature at which your plate is set up.
Incubation Temperature (°C)	Allows you to select the temperature at which your plate is stored to grow crystals.
Reducing Agent (μl)	Allows you to type a value of the reducing agent to add to a screen (if necessary).
Notebook Page	Allows you to type the page in your notebook referring to the same screen (if necessary).
Owner	Allows you to select an owner of the screen.
Notes	Allows you to type a note.

Screen Lots Section¶

A lot you can modify using and print its label using is available by default.

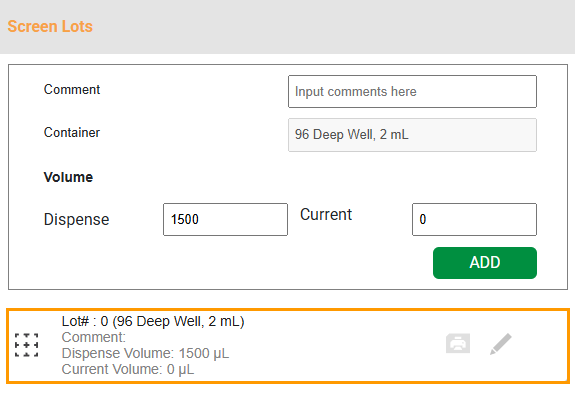

Default Screen Lot

You can add more lots by completing the available fields.

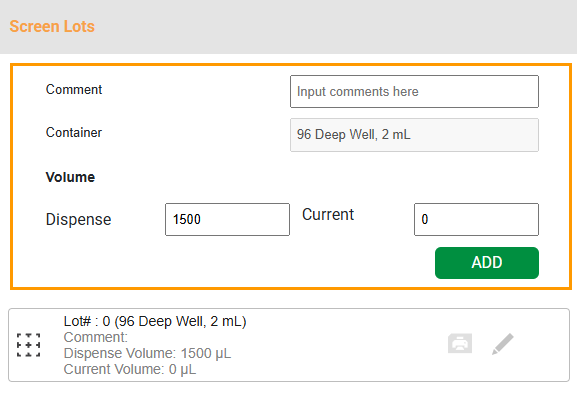

Screen Lots Section

Field	Description
Comment	Allows you to type a comment (if necessary).
Container	Automatically displays a container type based on the plate type you define.
Volume	Displays the dispense and current volumes in the provided boxes.

The added screen lot will appear below the default screen lot. For easy access, three buttons are available in each added lot. The button is for label printing, button for editing, and button for deletion.

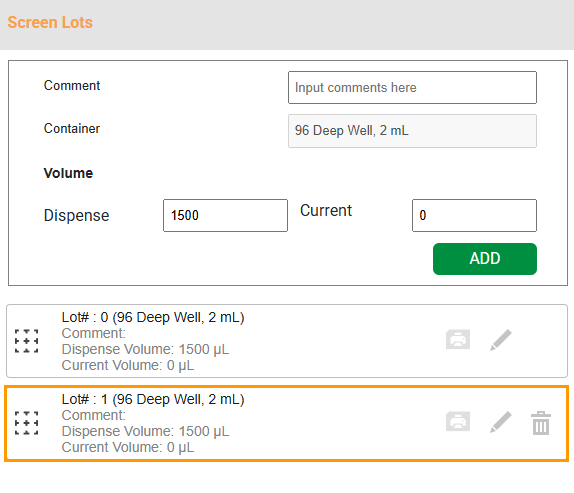

Added Screen Lot

Dispensing Section¶

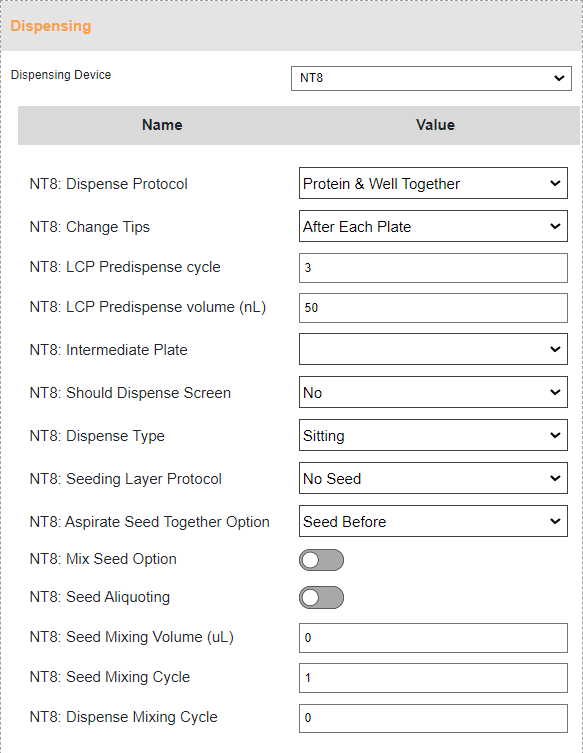

Dispensing Section Example

Field

Description

Dispensing Device

Allows you to select a dispensing device from the Dispensing Device dropdown and modify its settings.

Note

The information below the Dispensing Device field corresponds to the dispensing device you select.
