Canvas Menu¶

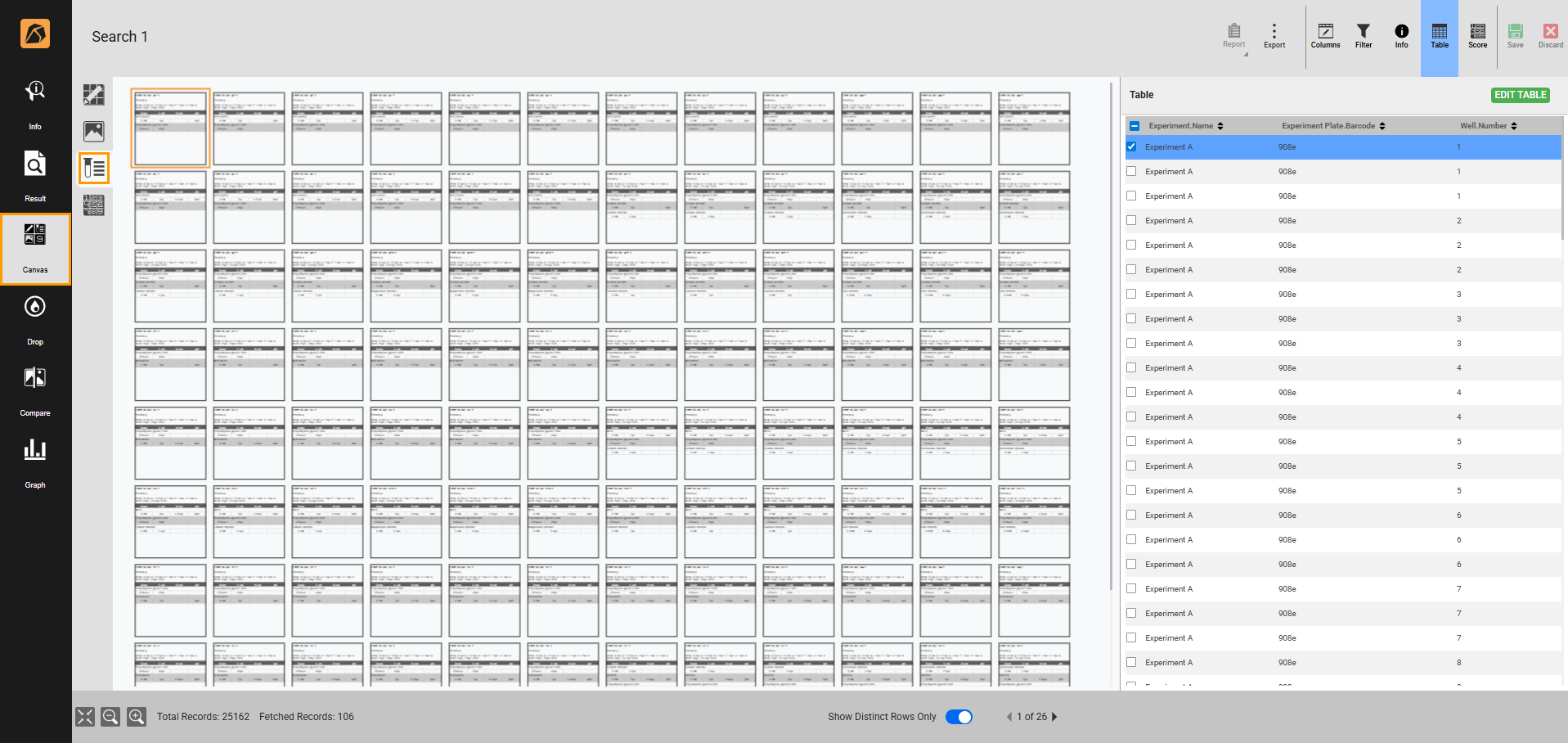

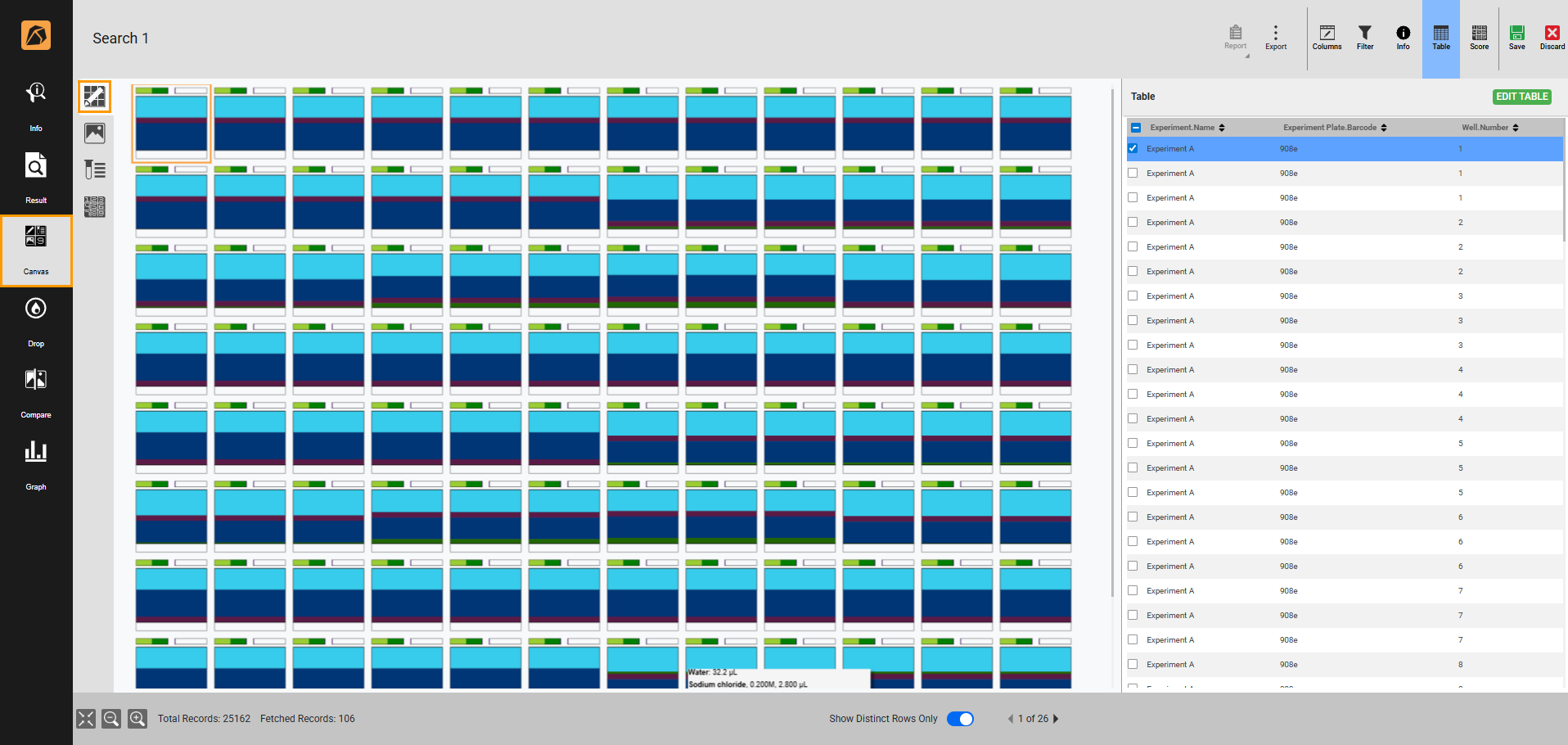

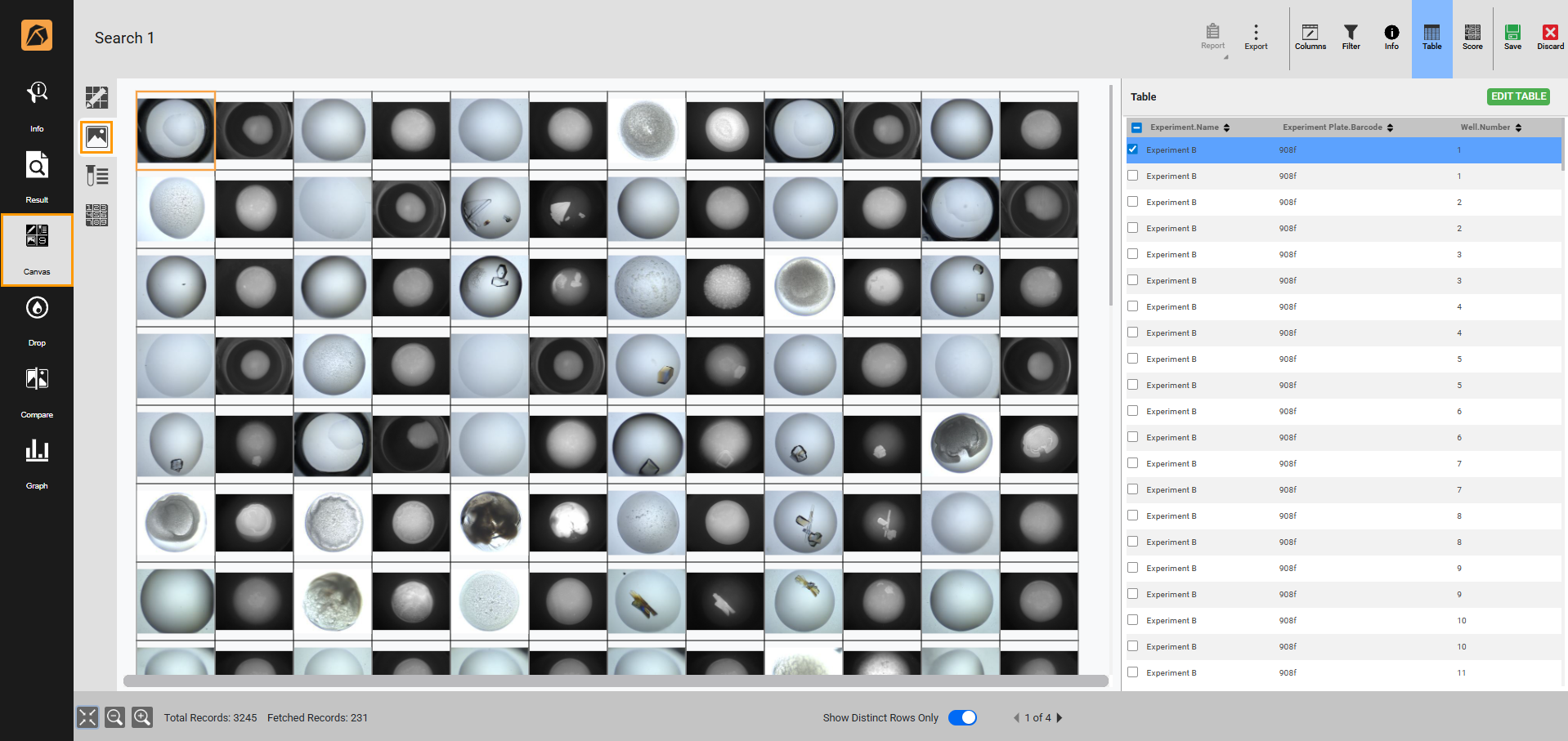

The Canvas menu enables you to view search results in different ways using the following submenus:

Each submenu in the Canvas menu includes the following buttons.

Button	Description
Export	Exports search results to an Excel or Text file.
Columns	Opens the Customize Columns panel to define the result table’s headers. Read more about Using Customize Columns Panel.
Filter	Opens the Filter panel to refine the result table’s data. Read more about Using Filter Panel.
Info	Opens the Information panel to display the well, protein, additive, and crystal information of a selected result. Read more about Using Information Panel.
Table	Opens the Table panel displaying all search results in the form of a table. Selecting more than one well in the panel opens the Compare menu, where you can compare up to four images. Read more about Using Table Panel.

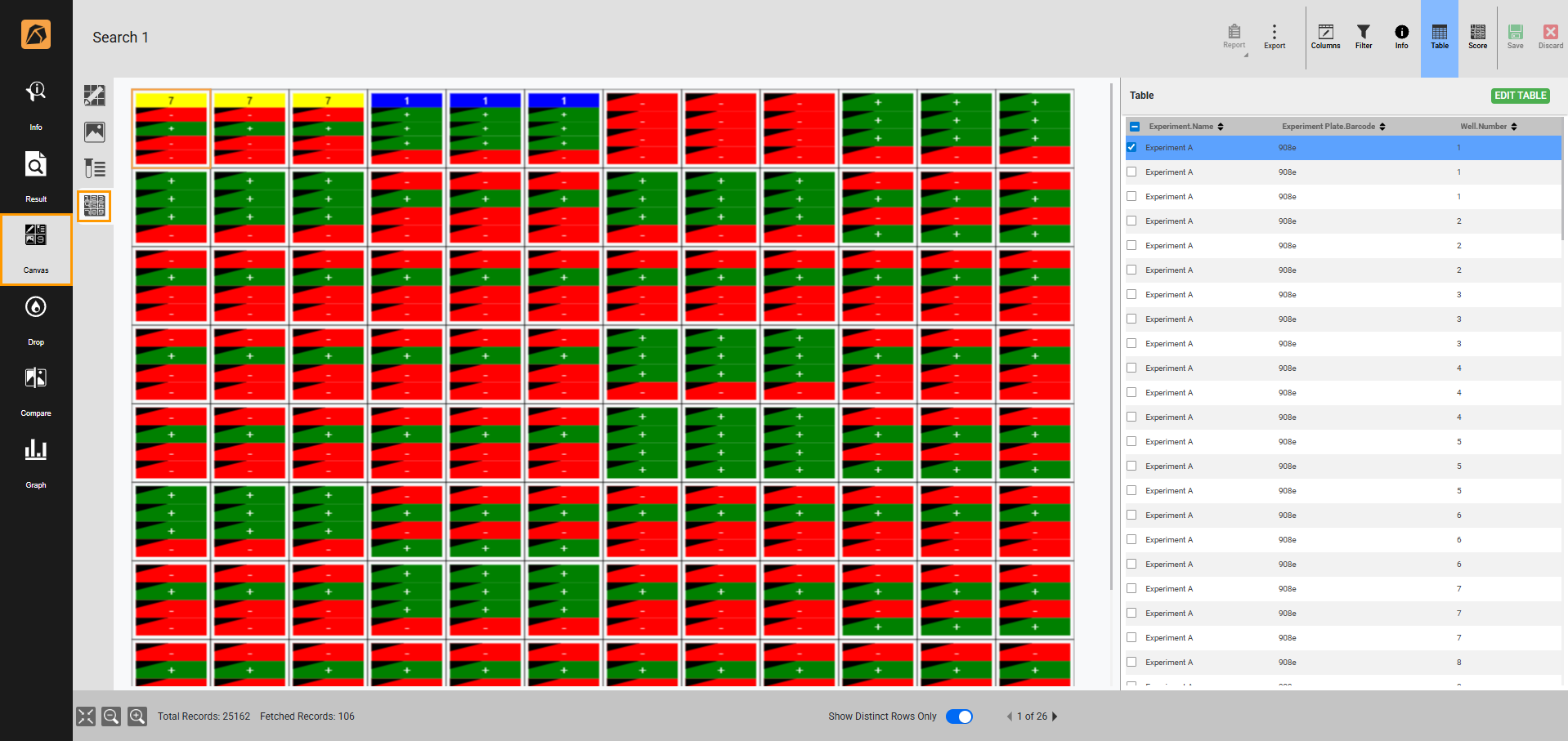

Score	Opens the Score panel to score images.
Save	Saves changes in: Wells in the Design submenu. Drop images in the Image submenu. Well ingredients in the Ingredients submenu. Image scores in the Score submenu.
Discard	Discards changes.

The bottom bar in each submenu comprises the following buttons and fields.

Button/Field	Description
Best Fit	Adjusts the Canvas area display to fit your screen.
Zoom Out	Zooms out the Canvas area.
Zoom In	Zooms in the Canvas area.
Total Records	Displays the total number of search results.
Fetched Records	Displays the number of search results per page.
Show Distinct Rows Only	Shows or hides duplicate data.
[] of []	Displays the current page number and the total number of pages. Each page displays up to 1000 results.
