Graph Menu¶
The Graph menu provides a visual representation of your search results, comprising the command bar and the graph area.
Important
The Graph menu is only accessible for the Well Drop search target.
Graph Menu
Command Bar¶
Located on the top right of the window, the Command Bar includes the following buttons.
Button |
Description |
Save Chart |
Allows you to download the graph as a JPG file with the default name of DataAnalysis - [Category]. |
Filter |
Allows you to refine the search results by applying filters using the Filter panel. Updating the filters here will apply the filters not only to the graph, but also to the results table. |
Info |
Displays the well, protein, additive, and crystal information of a selected well. |
Save |
Allows you to save changes in the Info menu. |
Discard |
Enables you to discard changes in the Info menu. |

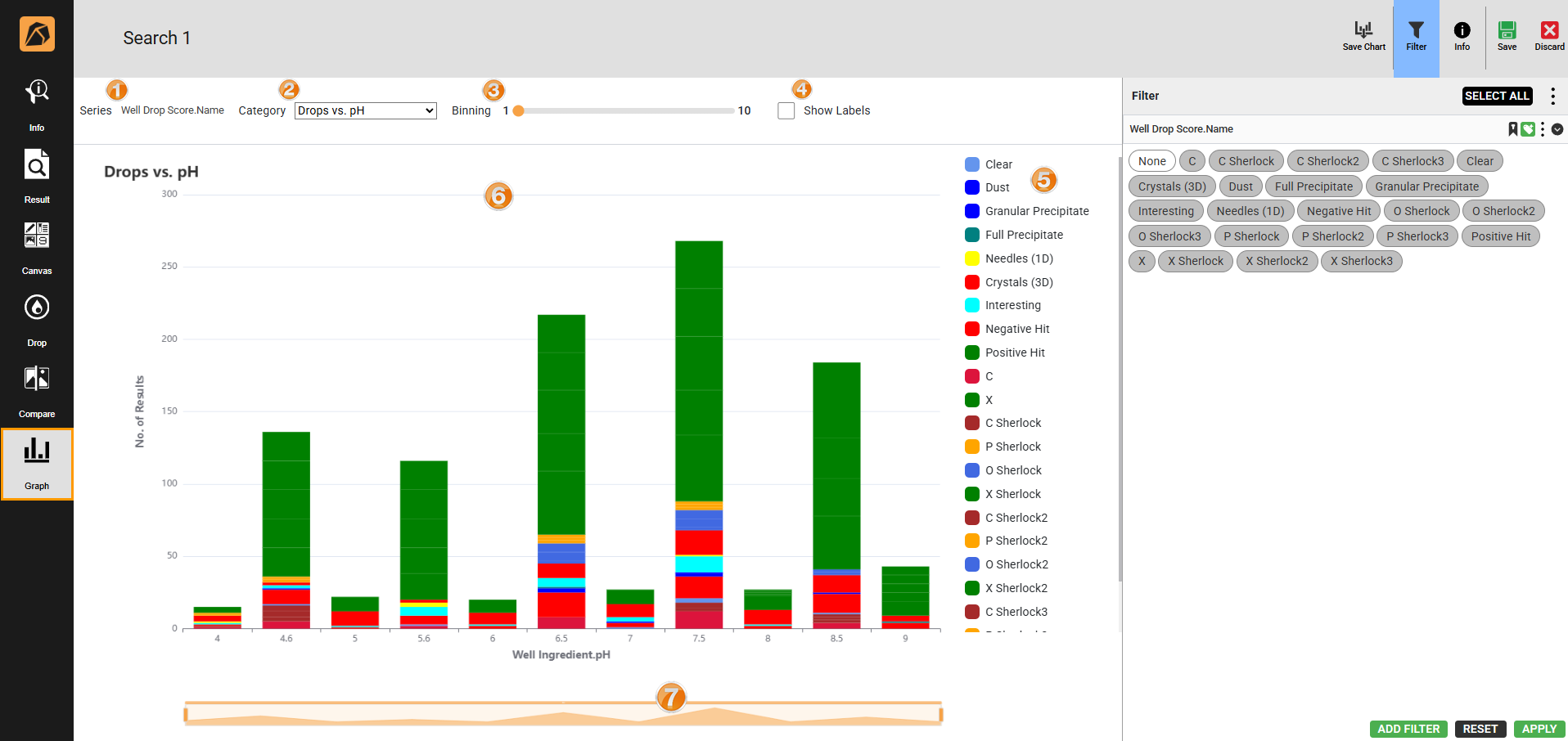

Graph Area¶
This area displays an interactive graph that visualizes your data based on your search parameters and filters. You can easily manipulate the chart as per your needs using search parameters or chart filters.
The Graph Area contains the following components:
Graph Area
Field |
Description |
|
Displays Well Drop Score.Name, which refers to existing well drops and their scores. |
|
Allows you to select from 4 pre-defined charts. The list of options remains dynamic based on your selected search parameters:
|
|
Important This feature is only available for Drop vs Concentration and Drop vs pH options. Defines the X-axis range within a 1-10 scale. |
|
Displays individual values against each stacked bar as labels. |
|
Lists the scores from the search results. Clicking a score in the Legend removes it from the graph once applied from the Filter panel, which mirrors the Legend. |
|
Visualizes search results as a stacked bar graph, where each color represents a score in the Legend. Hovering over a bar displays its information in a tooltip. |
|
Adjusts the graph zoom to increase focus on a particular area of the chart. |
