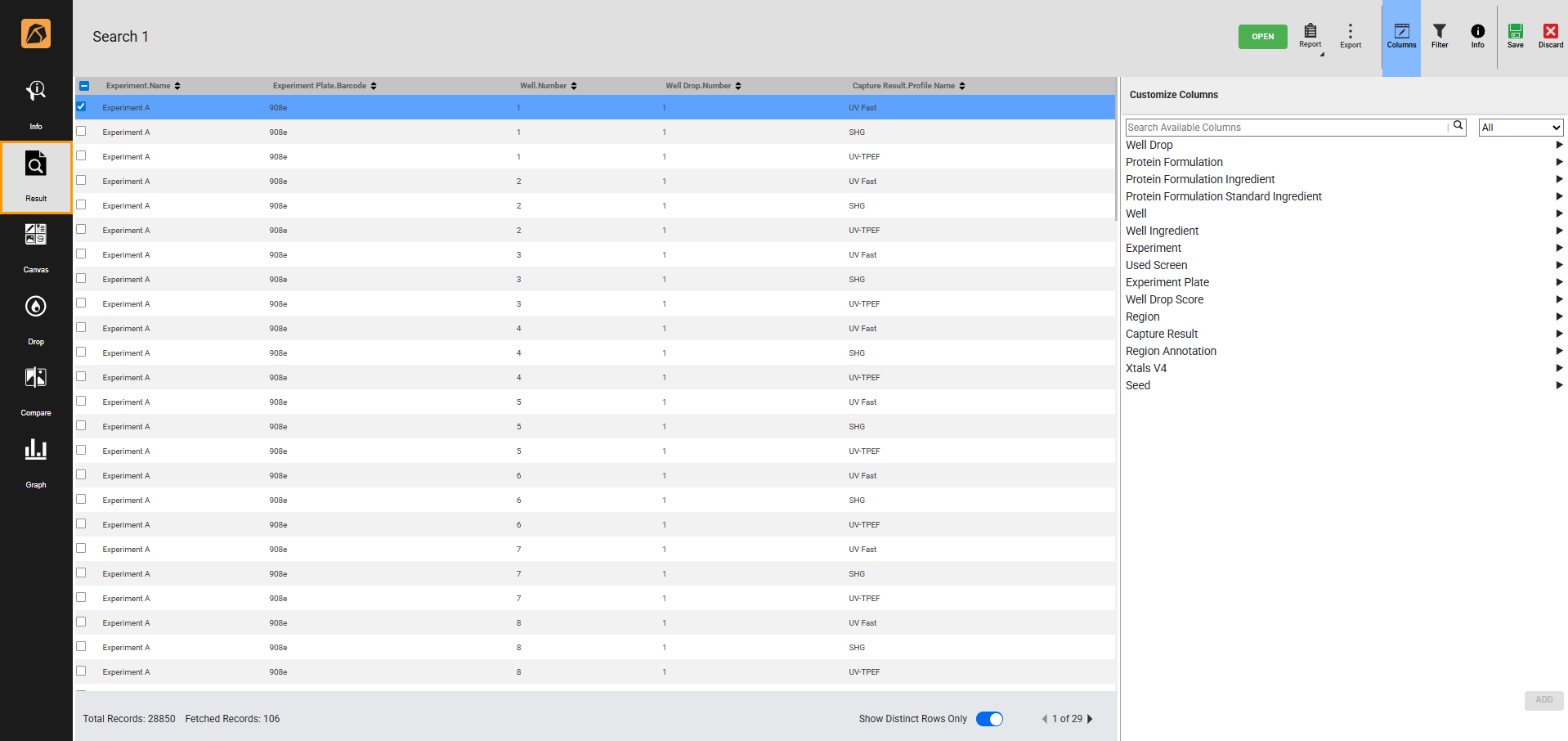

Result Menu¶
The Result menu displays all results from selected search targets and query parameters defined in the Info menu.
Result Menu
You can use each button in the top bar to:
Button |
Description |
|---|---|
OPEN |
Open a selected experiment from the result list. |
Report |
Generate the search results into a PDF file. |
Export |
Export search results to an Excel or Text file. |
Open the Customize Columns panel to define the result table’s headers. Read more about Using Customize Columns Panel. |
|
Open the Filter panel to refine the result table’s data. Read more about Using Filter Panel. |
|
Open the Information panel to display the well, protein, additive, and crystal information of a selected result. Read more about Using Information Panel. |
|
Save |
Save the changes you make in the Customize Columns or Filter panel. |
Discard |
Discard changes. |
The bottom bar comprises the following fields.
Field |
Description |
|---|---|
Total Records |
Displays the total number of search results. |
Fetched Records |
Displays the number of search results per page. |
Show Distinct Rows Only |
Shows or hides duplicate data. |
[] of [] |
Displays the current page number and the total number of pages. Each page displays up to 1000 results. |
Below is the overview of each panel.

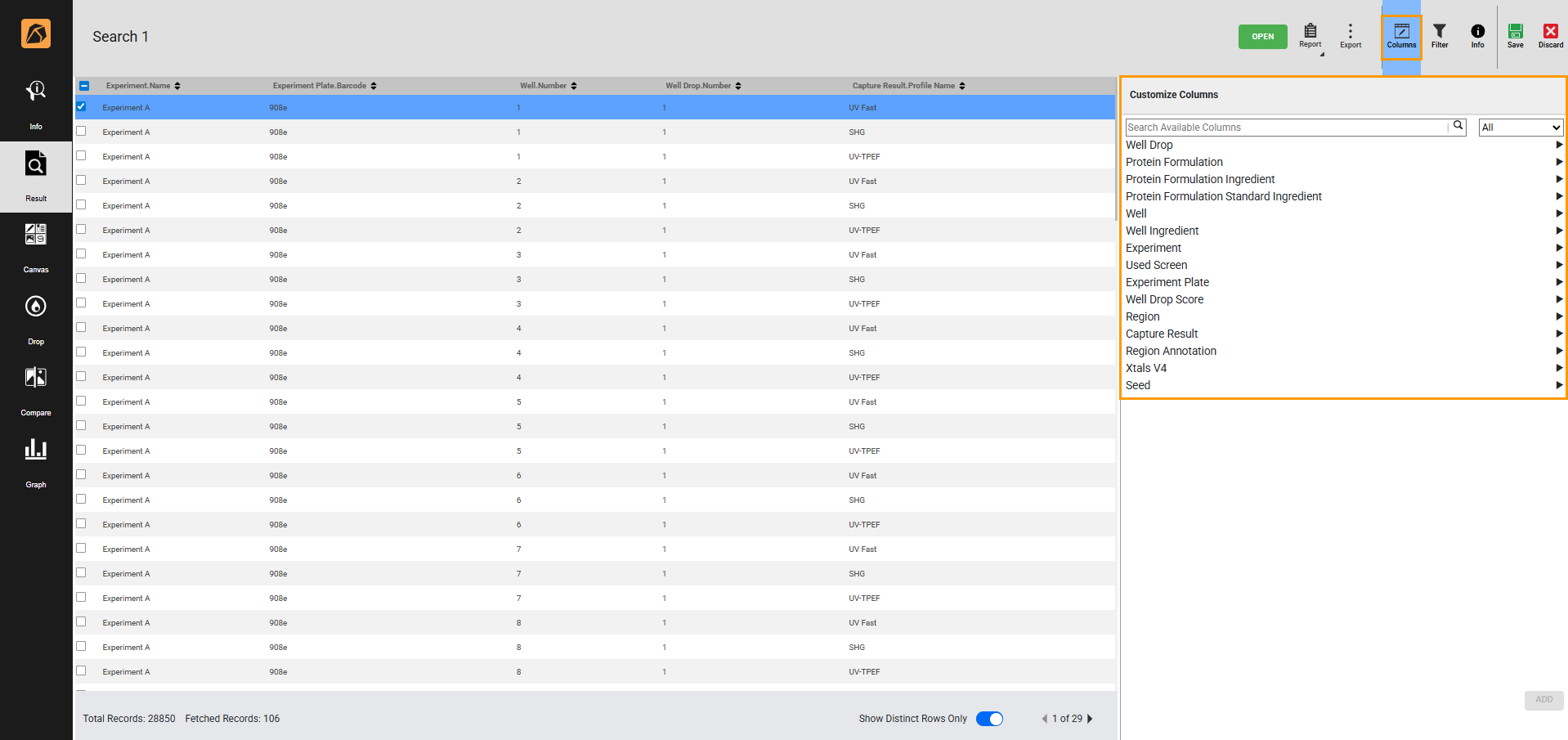

Customize Columns Panel¶
The Customize Columns panel–accessible from the Columns button–enables you to define the headers of the result table.
Customize Columns Panel
This panel displays all parameters in the ROCK MAKER database. Those you select appear in the result table’s headers.
Important
Parameters with gray checkboxes are mandatory and can’t be deselected.

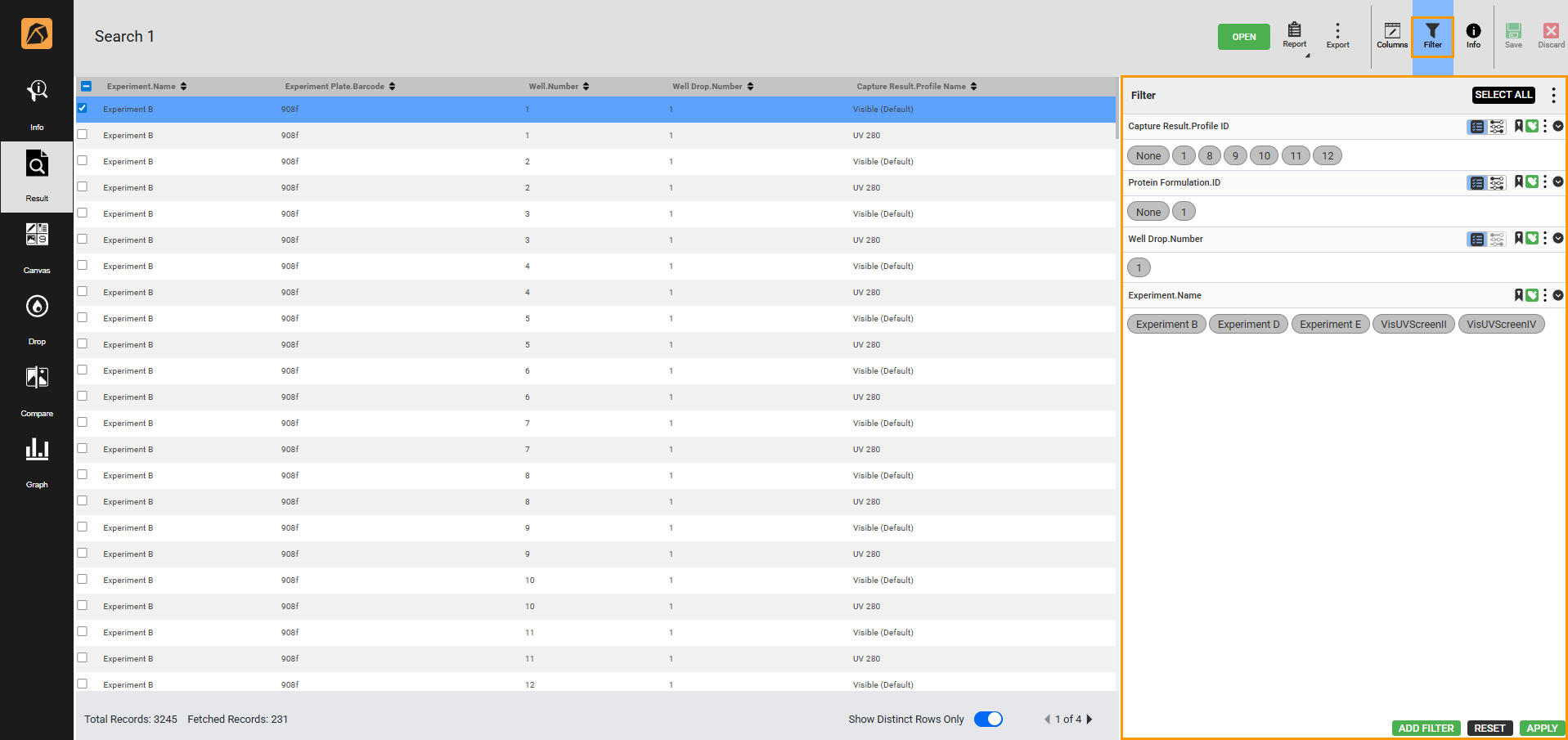

Filter Panel¶
The Filter panel–accessible from the Filter button–enables you to refine results based on the selected parameter(s). Selecting the parameter(s) in the Filter panel affects the results displayed in the table.
Filter Panel
Below are the buttons in the Filter panel and their functions.
Select All: select all parameters in the panel.
More
: enable or disable Distinct Rows and enable or disable the filter.ADD FILTER: add a filter(s).
RESET: reset the filter.
APPLY: apply changes in the panel.
Read more about Using Filter Panel.

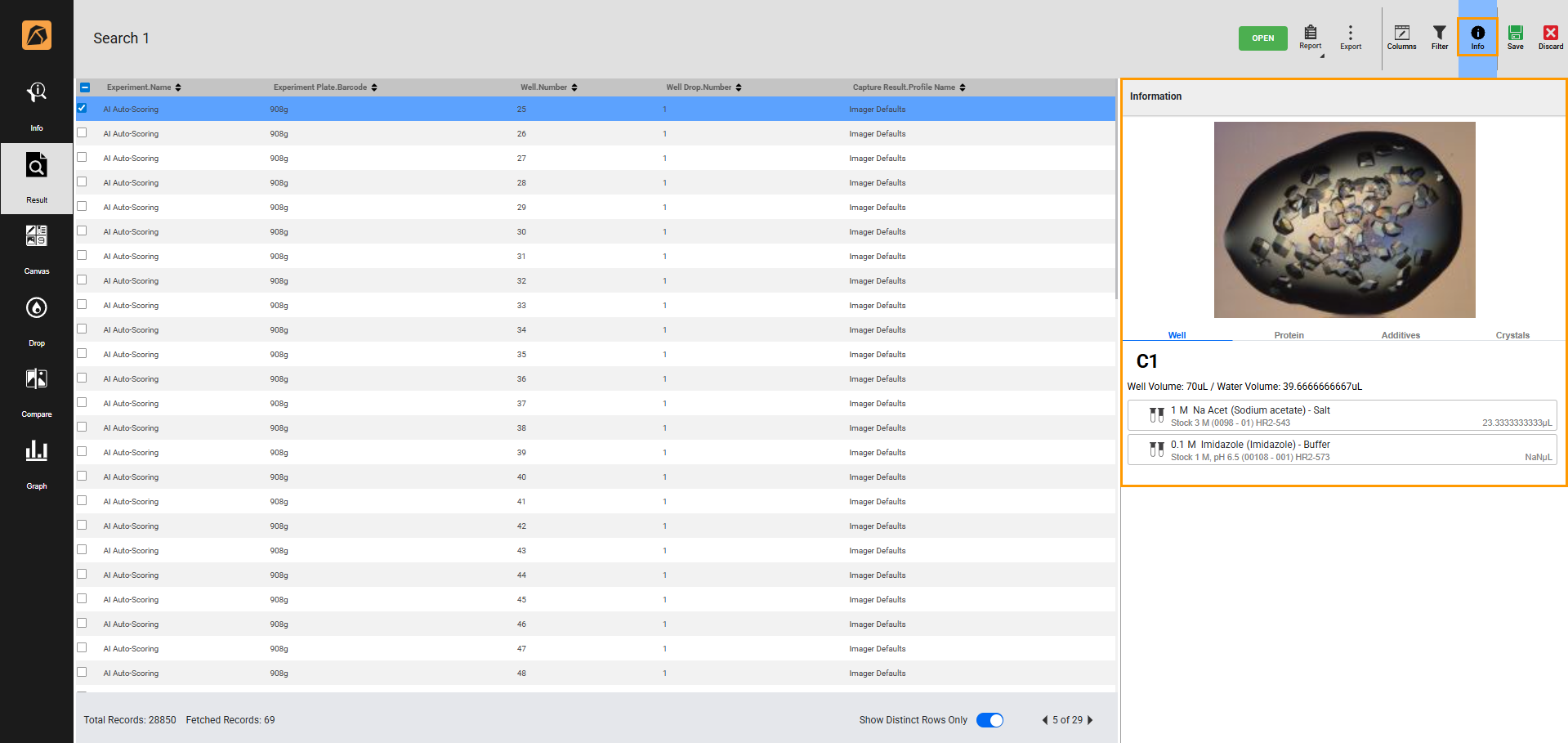

Information Panel¶
The Information panel–accessible from the Info button–enables you to view the information of a selected row in the result table. The panel comprises Well, Protein, Additives, and Crystals tabs.
Information Panel
Each tab in the Information panel displays the following information.
Well: the details of the selected well.
Protein: the protein information of the drop(s).
Additives: the additive information of the drop(s).
Crystals: the crystal information of the drop.
