Defining Image Management Task Filters¶
You need to define filters before executing an image management task.
To define the image management task filters:
Open the Setup menu and select the Imaging submenu.
Imaging Submenu
In the Imaging submenu, click the Image Management Task tab.
Image Management Task Tab
In the Task Option subtab, click the Load File dropdown and select an image management task.

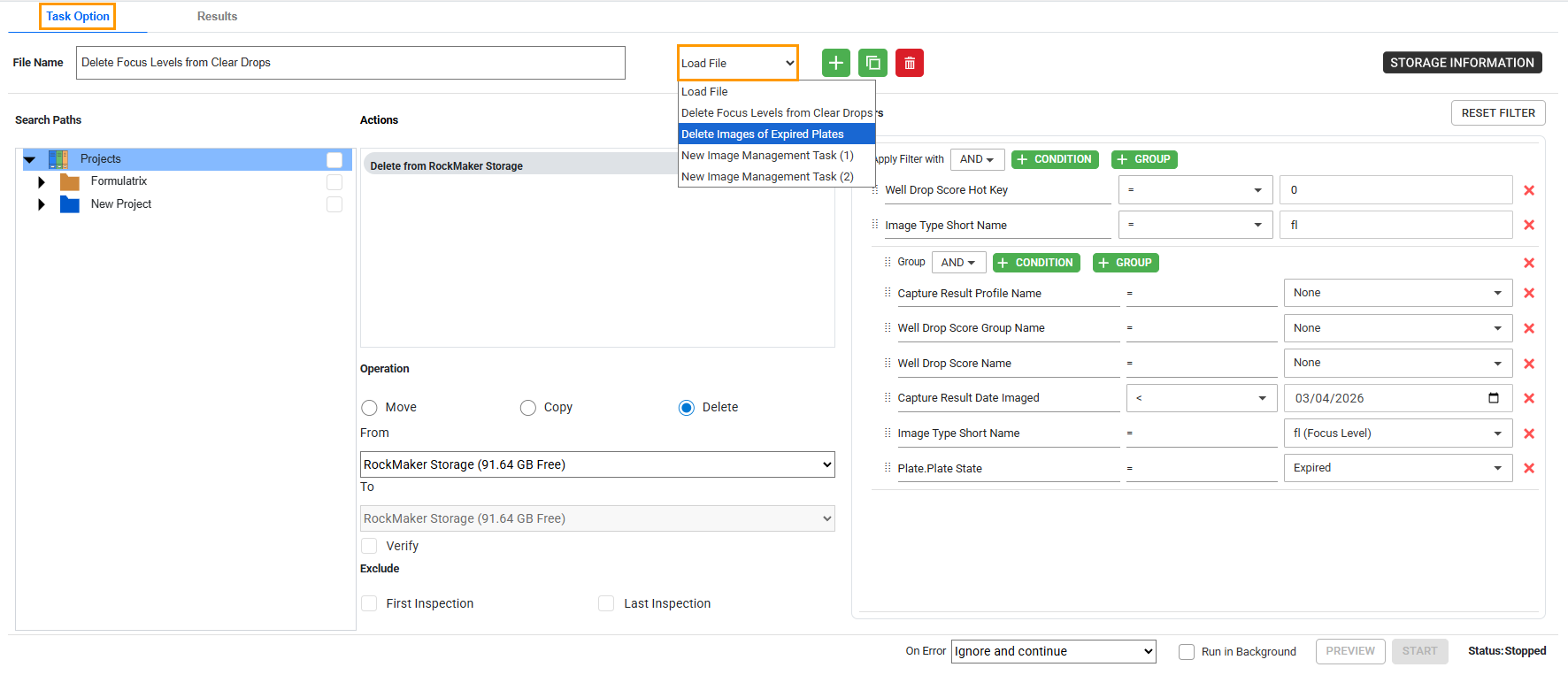

Selecting an Image Management Task
In the Search Paths section, select a folder/project/experiment(s) where the target images are located.

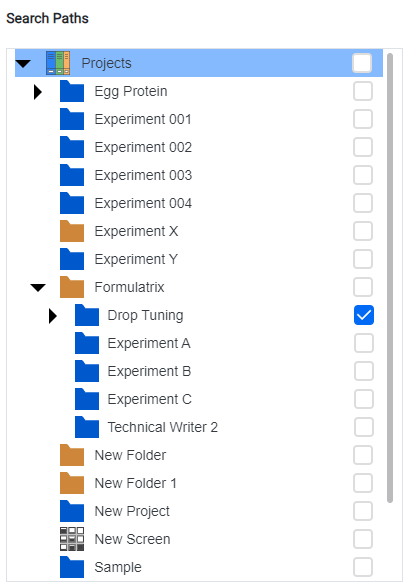

Search Paths Section
In the Actions field, click
and select an action. ROCK MAKER automatically displays the selected action in the box below the Actions and Operation fields.

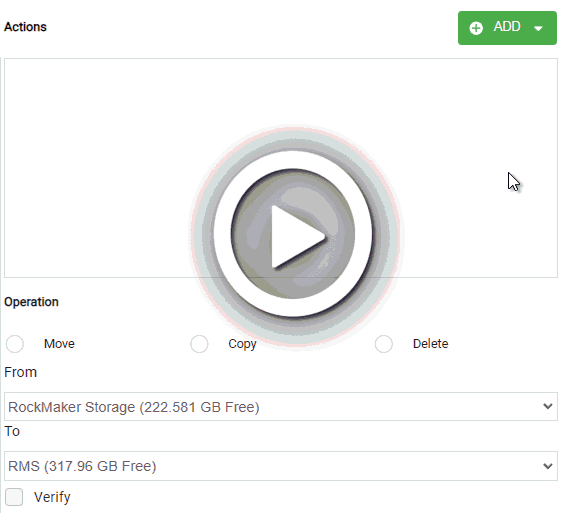

Selecting an Action
Note
The Operation field allows you to edit the selected action based on the active row in the Actions field.

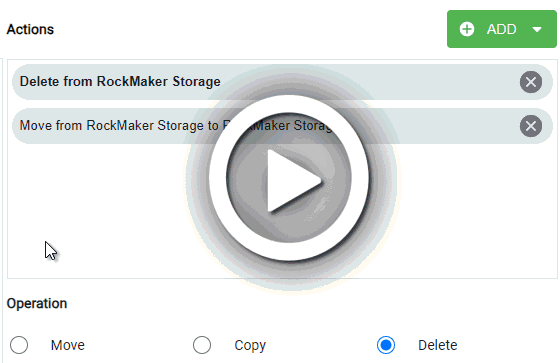

Editing an Action
Depending on the action you add, do one of the following.
If the selected action is Move or Copy, select the original storage in the From dropdown and select the target storage in the To dropdown.
If the selected action is Delete, the To dropdown will be disabled.

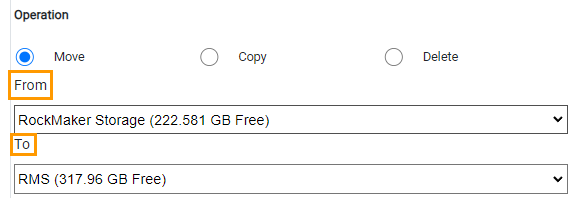

From and To Dropdowns
The following steps are optional.
Tick the Verify checkbox below the To dropdown field to prompt ROCK MAKER to compare the copy and original files to make sure they are identical before deleting the original files. This helps prevent data corruption.

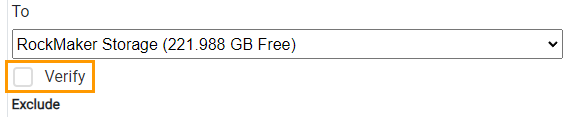

Verify Checkbox
Exclude the first and/or last inspection in the Exclude field.
Exclude Field
Define the filters in the Filters field to specify the results.
Select the combinator in the Apply Filter with: OR or AND.
Click
to add a filter(s) from the Filter dialog box.
Filter Dialog Box
In the dialog box, select a filter(s) from the BASIC or ADVANCED tab to define more specific results. The selected filter(s) will appear in the Filters field.

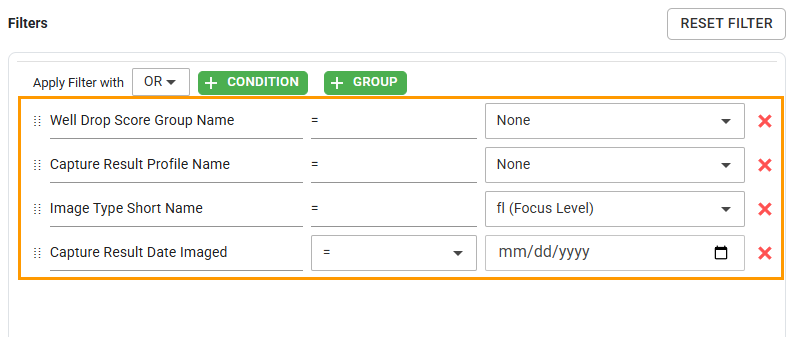

Selected Filters in Filters Field
Click
to delete a filter,
to move a filter up or down, and
to clear filter settings.
If everything is set, click
on the top right bar.
