Sending Images to Autoscores

Note

As long as you activate the autoscoring model(s), all images from the imager system are automatically scored. You can use this feature

• if you want to score the unscored images from the previous inspection.

• if you want to score the scored images from the previous inspection with the newly selected autoscoring model.

To score imaged experiments, send them for autoscoring using either:

• The Explore menu.

• The experiment page.

Sending Images from the Explore Menu

To send images from the Explore menu:

1. Open the Explore menu and click an experiment.

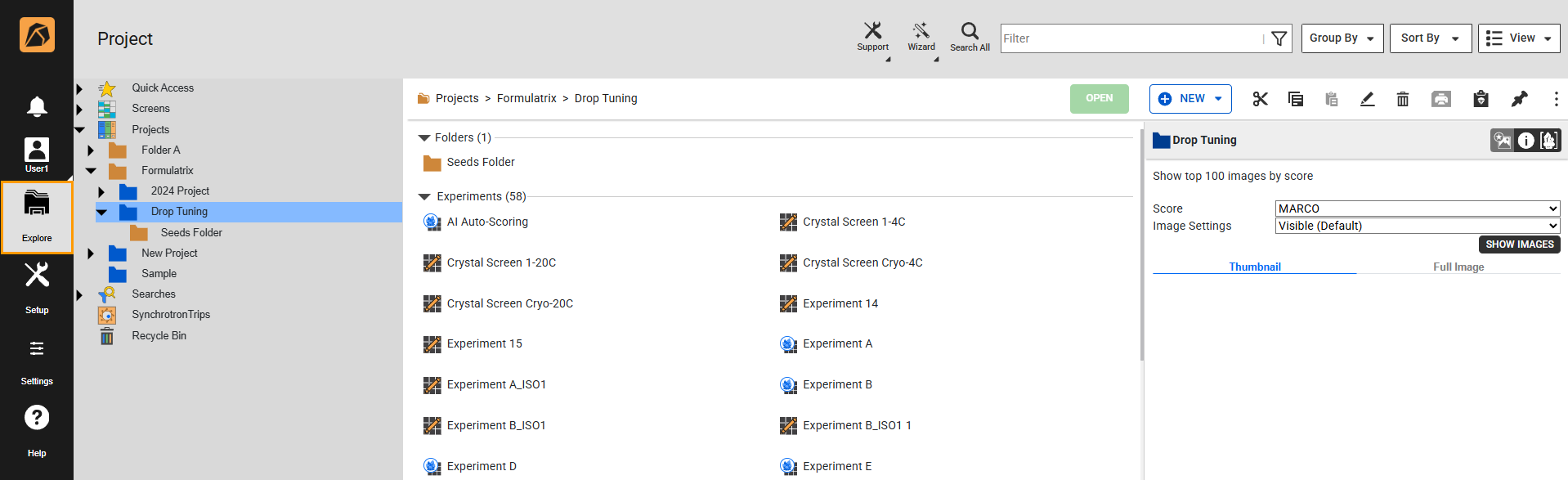

   Explore Menu

2. Go to the Administrative Tools section and click . Then, select Send to Autoscore.

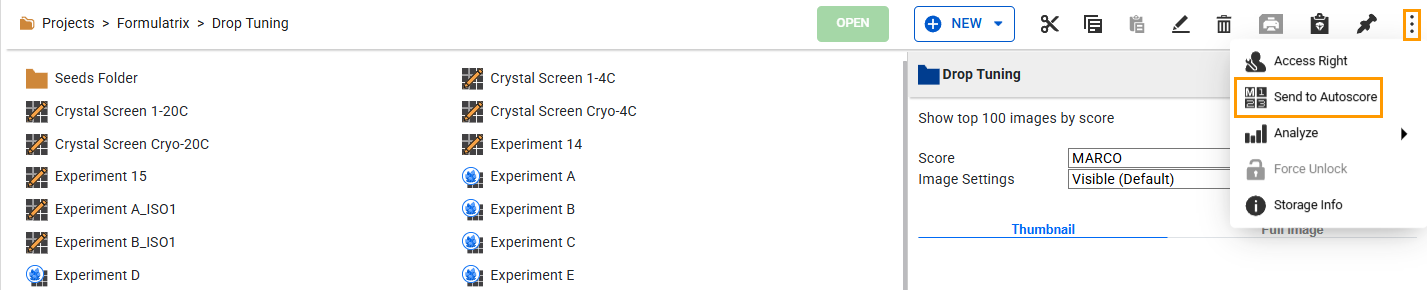

   Send to Autoscore Option

Sending Images from the Experiment Page

To send images from the experiment page:

1. Open an experiment.

2. On the top right bar, click Score .

3. In the Score panel, go to the Auto Score tab and click SEND INSPECTION.

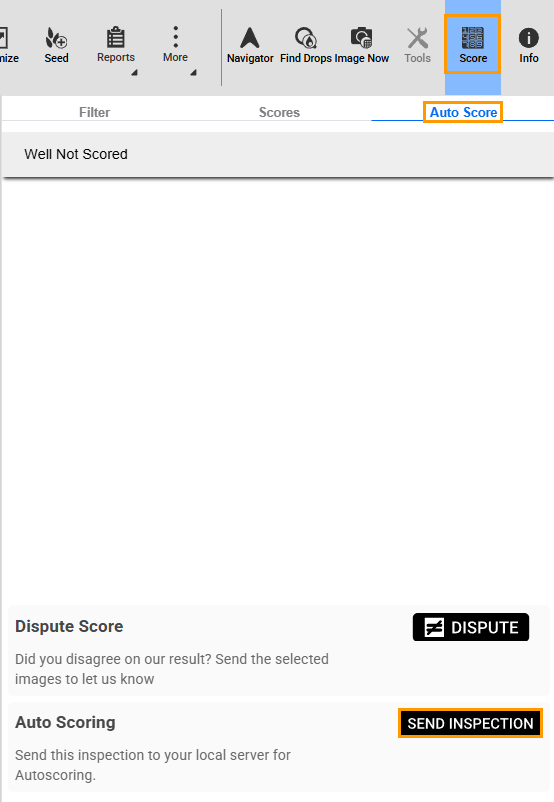

   Auto Score Tab in the Score Panel

The scores appear in the top right corner of each image. In the example below, three autoscoring models are displayed: Sherlock3.1, Sherlock4, and Sherlock2. The displayed autoscore result is based on the autoscoring model(s) you activate in the Global Preferences submenu.

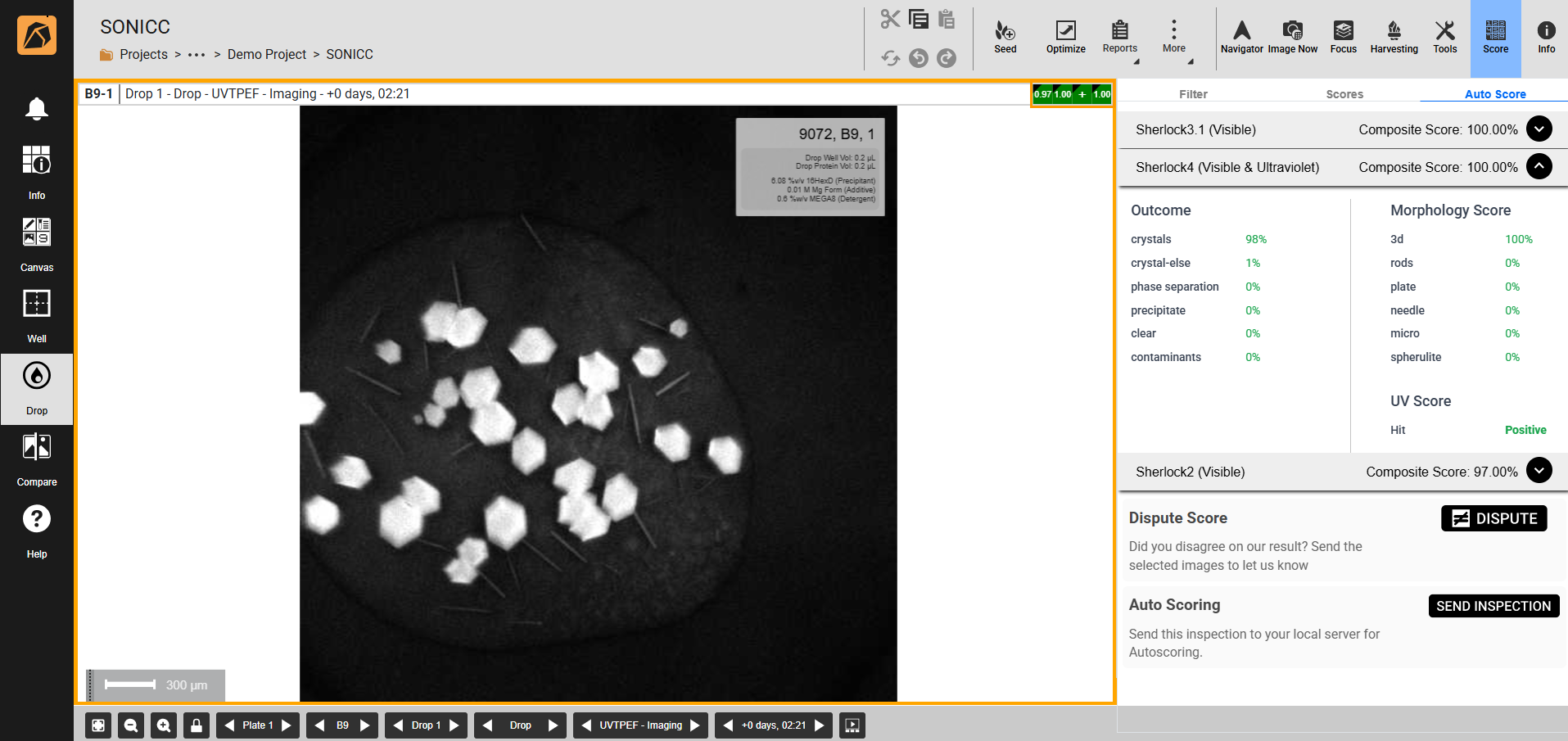

Autoscore Results
