Lubricating the O-rings

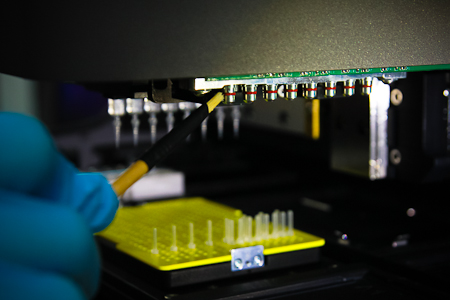

The NT8 O-ring is a small red or black rubber circle (colors may vary depending on your NT8 series) on the NT8’s plate copy head that create air-tight seals around each of the eight nozzles.

Note: O-rings are only found on the plate copy head; if you did not purchase this option these instructions do not apply to you.

If you are noticing an aspirate or dispense volume problem when attempting to copy a plate, you should lubricate the O-rings as part of a troubleshooting effort. Otherwise, the O-rings should be lubricated every six months.

The estimated time required to grease the NT8 O-ring is 3 minutes.

Before you begin, please make sure that there are no High Volume tips attached to the NT8’s plate copy head.

Prerequisites

The NT8 is powered off and unplugged.

What You Will Need:

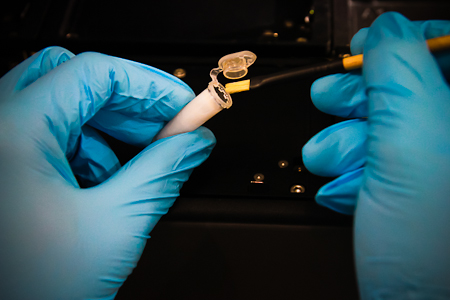

A small paint brush (shipped in your accessory kit).
Grease (shipped in your accessory kit).
A deep well block filled about half way with water colored with food dye.
A daughter plate.
A High Volume tip caddy with 8 HV tips.
