Settings Menu
Settings menu is where the hardware customization and testing take place. Here, the support team set up the Vector Editor, Storage, Imager, System Backup, and Preferences before testing them to ensure the instrument runs well.
Important: Although accessible by the admin and support team, only the FORMULATRIX support team should modify this menu.
Settings Menu
Vector Editor
Vector Editor sub-menu manages vector files to define the precise coordinates of hotel positions and facilitate various PSR motions in performing auto calibration, plate movement, and other related tasks within the system.

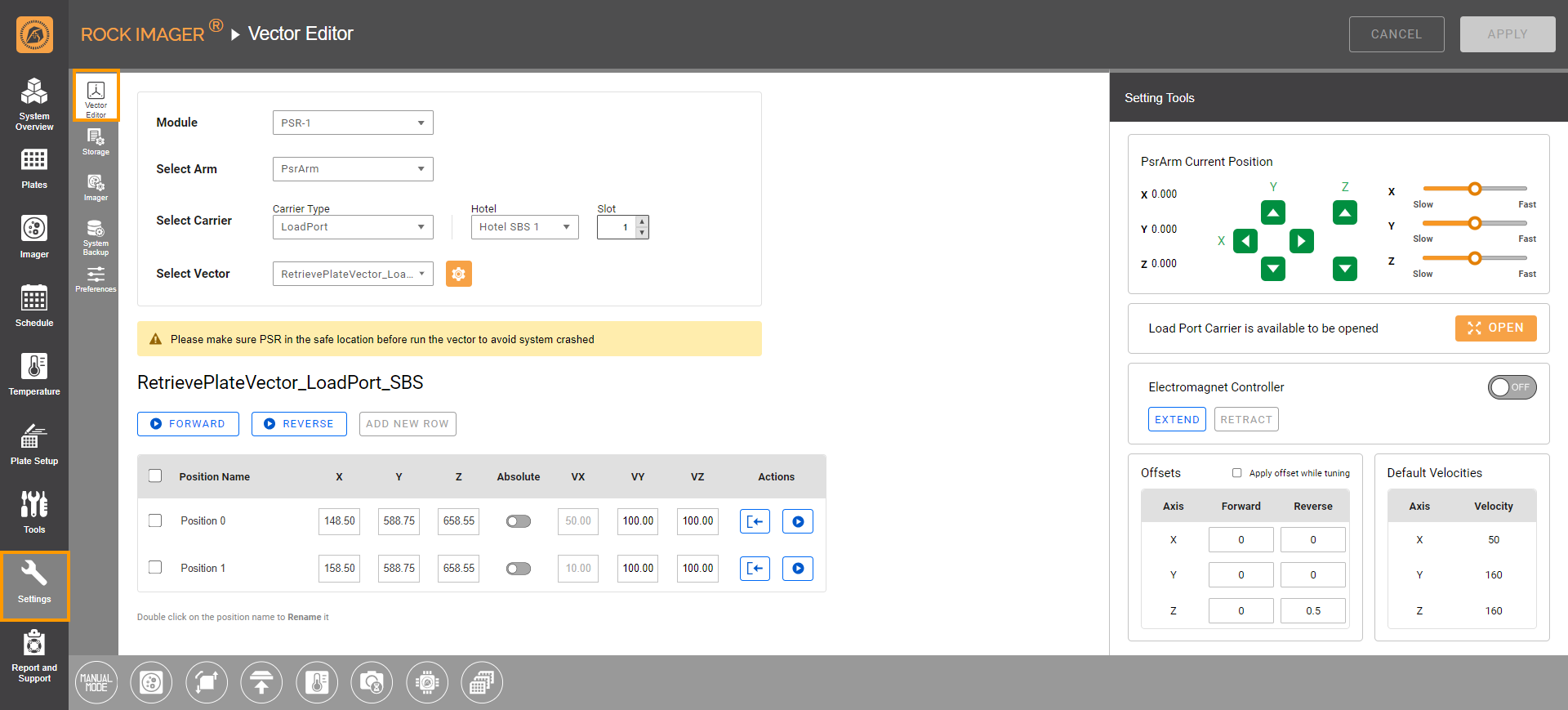

Vector Editor Sub-menu
Storage
Storage sub-menu facilitates the calibration and adjustment of storage positions in the system.

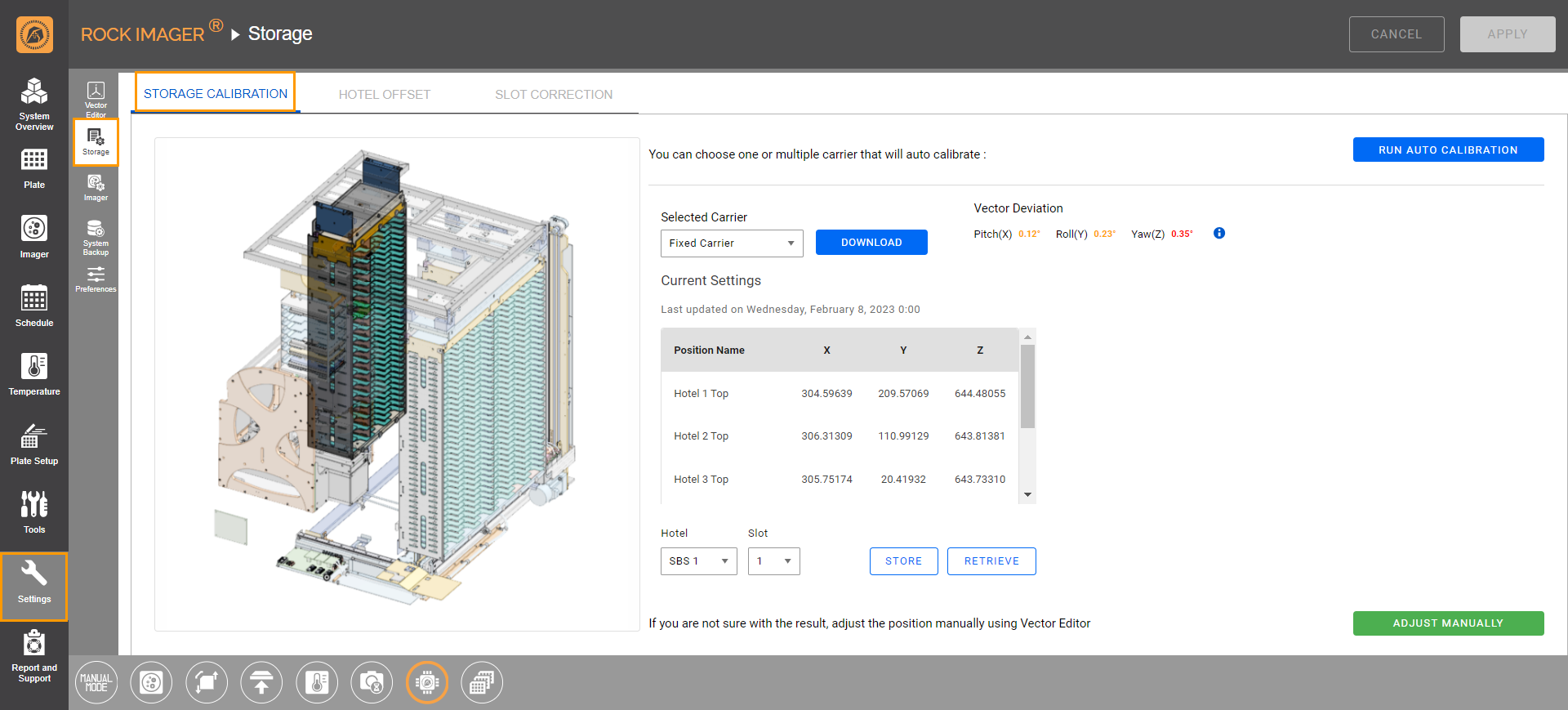

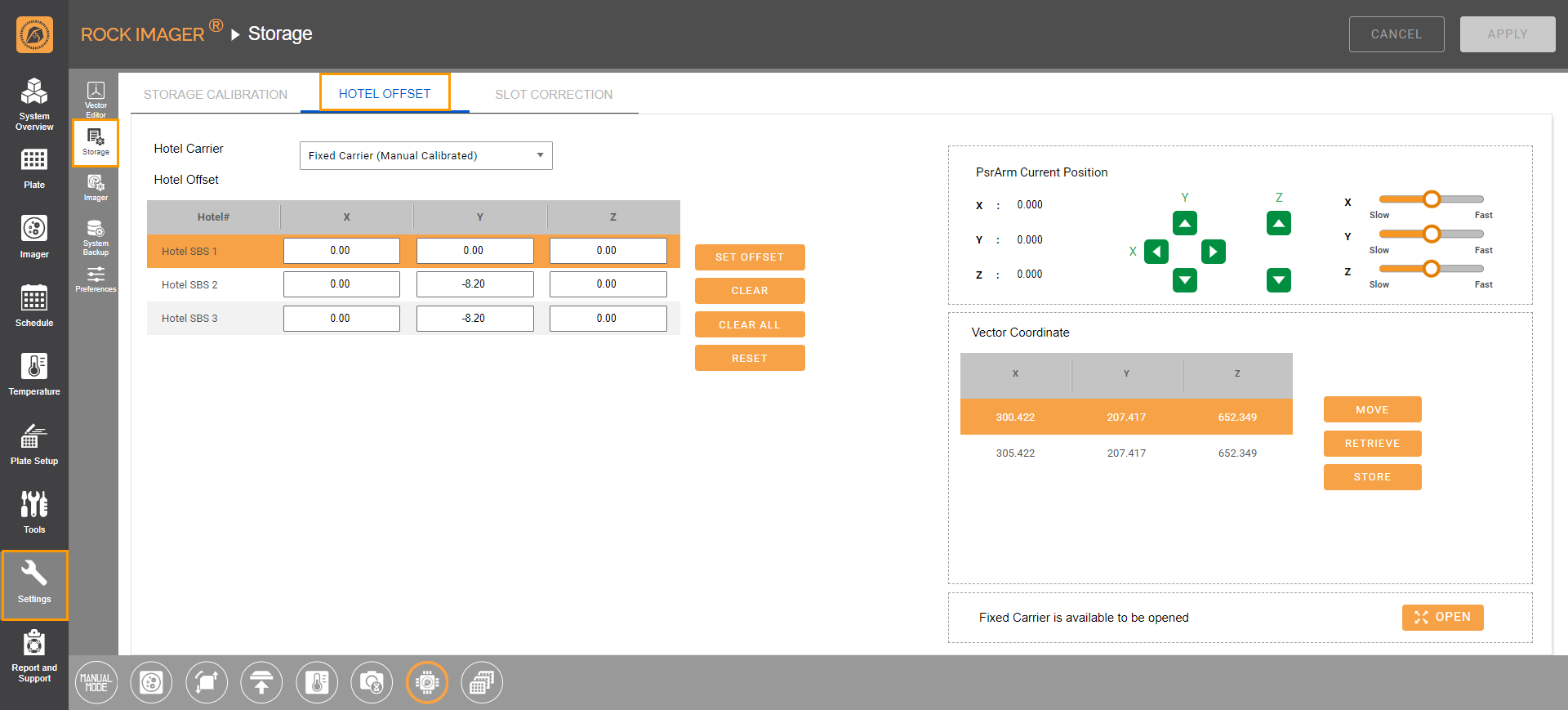

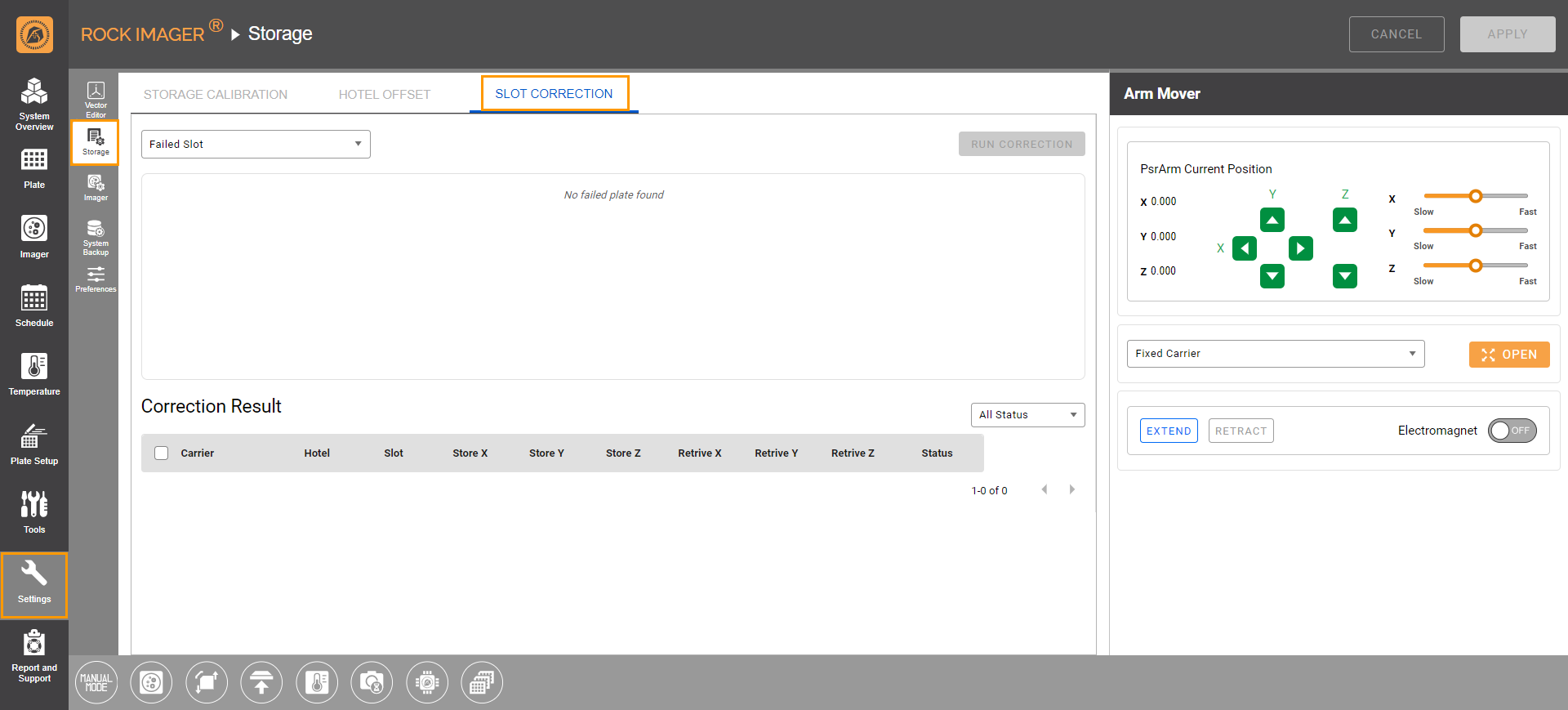

Storage Sub-menu
This sub-menu comprises Storage Calibration, Hotel Offset, and Slot Correction tabs.
| Tab | Description |
|
Storage Calibration |
Runs auto calibration or allows manual adjustment of hotel positions for storage accuracy. Manually adjusting the storage redirects you to the Vector Editor. |
|
Hotel Offset |
Sets offset values to adjust PSR arm positioning for shifted hotels. |
|
Slot Correction |
Fixes the PSR arm position toward failed slots identified during plate movement or certain slots within hotels. |
Imager
Imager sub-menu manages settings for camera and motor calibration to optimize the image capture process.

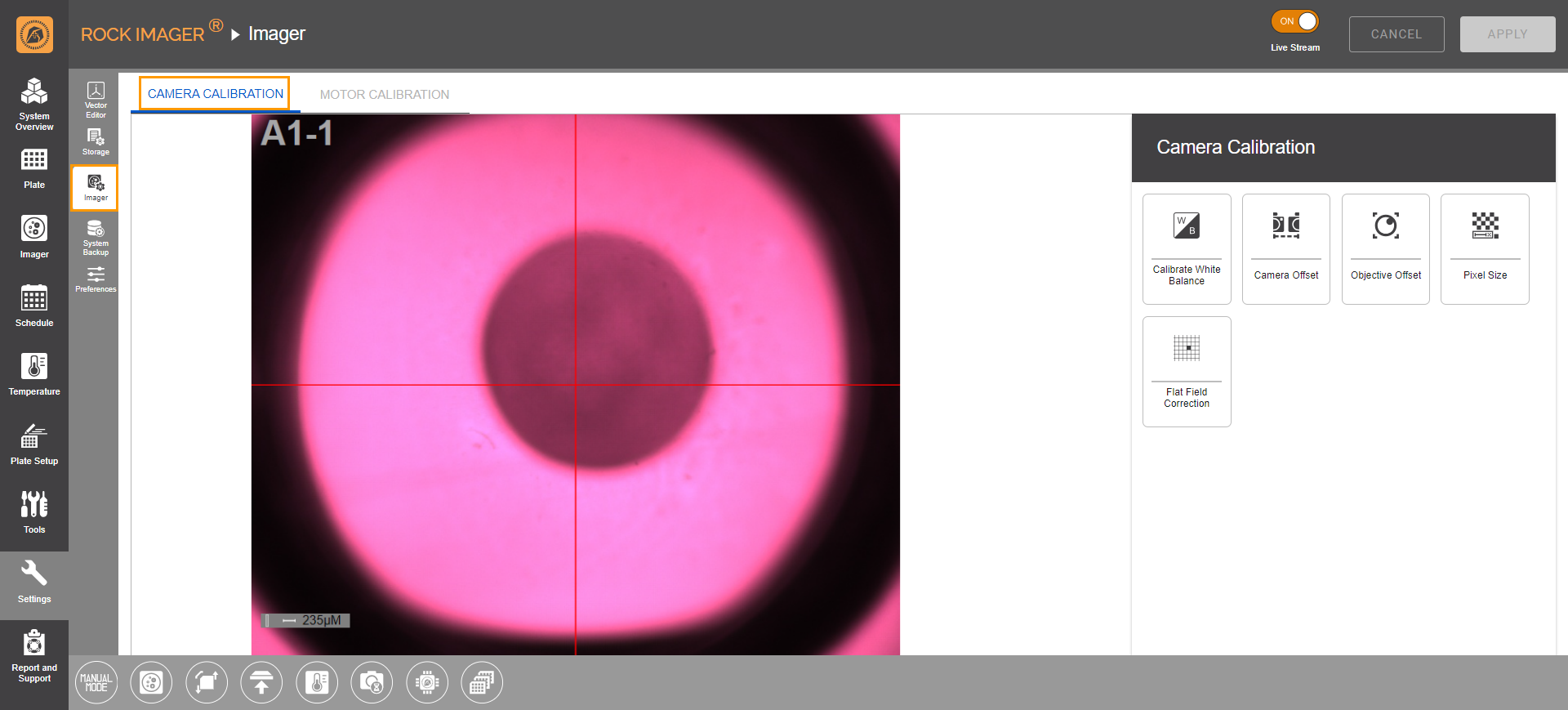

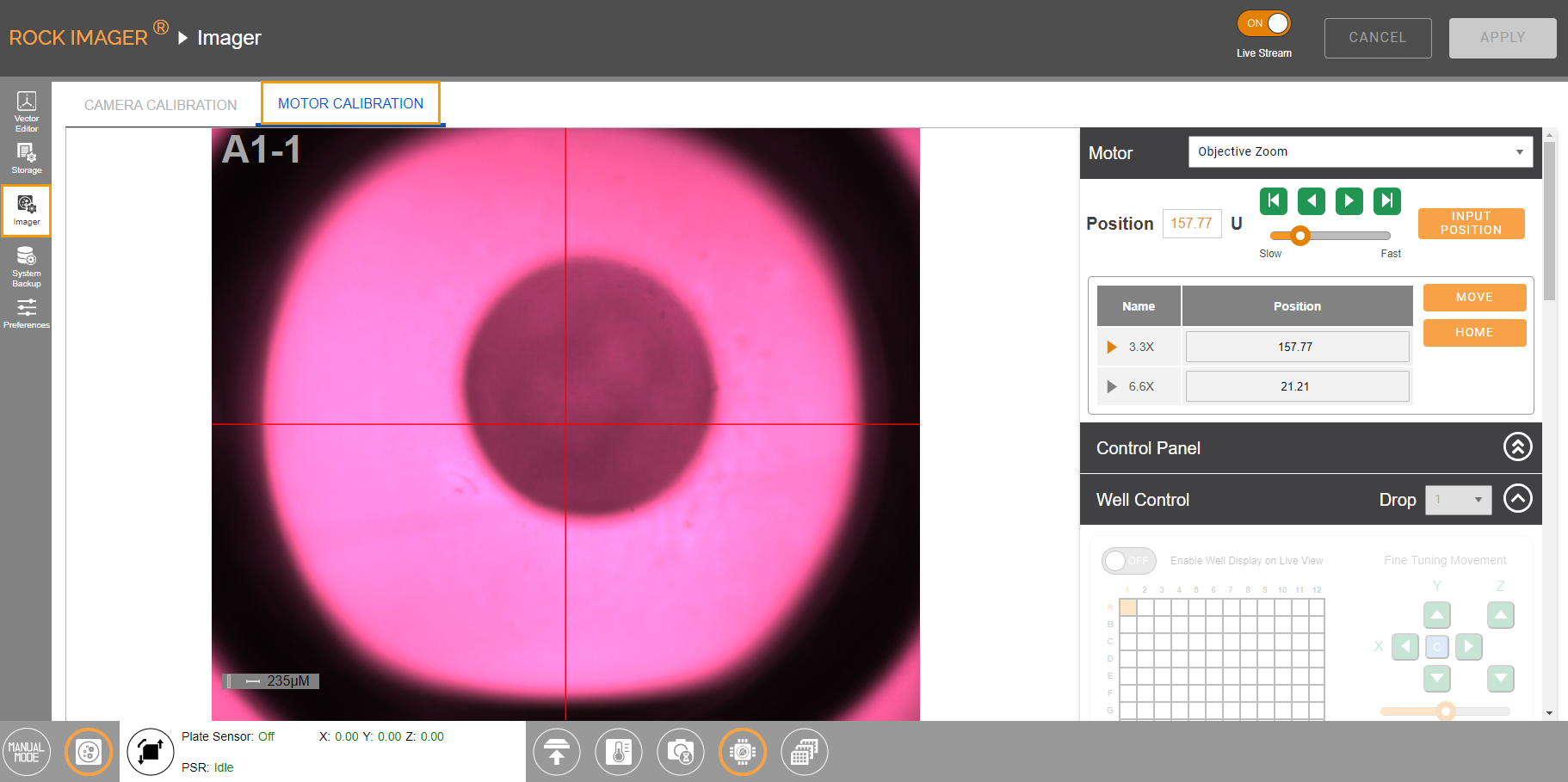

Imager Sub-menu
This sub-menu consists of Camera Calibration and Motor Calibration tabs.
| Tab | Description |
|
Camera Calibration |
Sets various camera parameters to capture high-quality images. |
|
|
Fine-tunes the objective zoom motor to the center position, enabling the objective lens to achieve precise magnification at various zoom levels. |
System Backup
System Backup sets interval backup schedules to facilitate efficient data recovery.

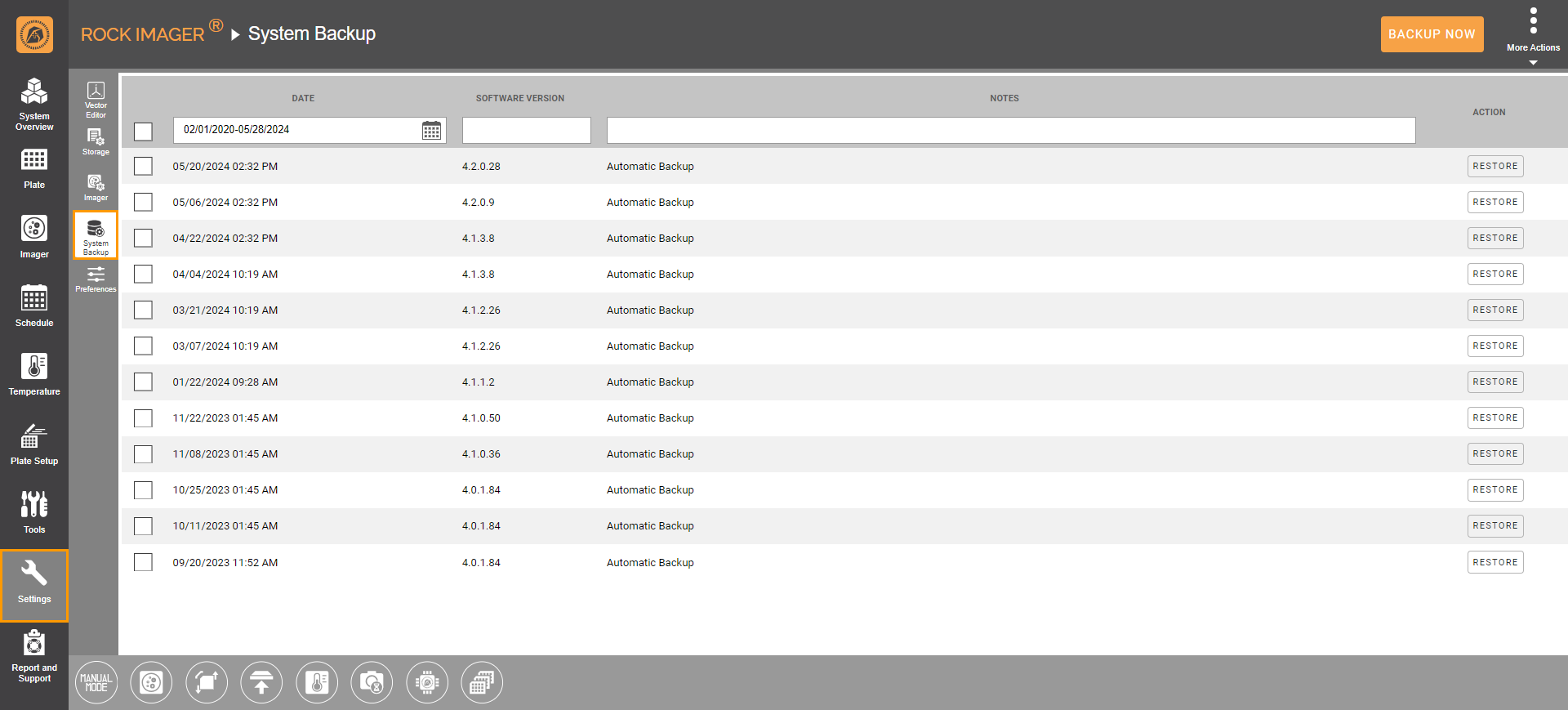

System Backup Sub-menu
Preferences
Preferences sub-menu allows users to customize the following system configurations to suit users' needs.
- Notification
- Imaging Scheduler
- Diagnostic
- Storage
- Resource Monitor
- Imaging
- Drop Location
- Lightpath Auto Exposure
- Plate Store and Retrieve

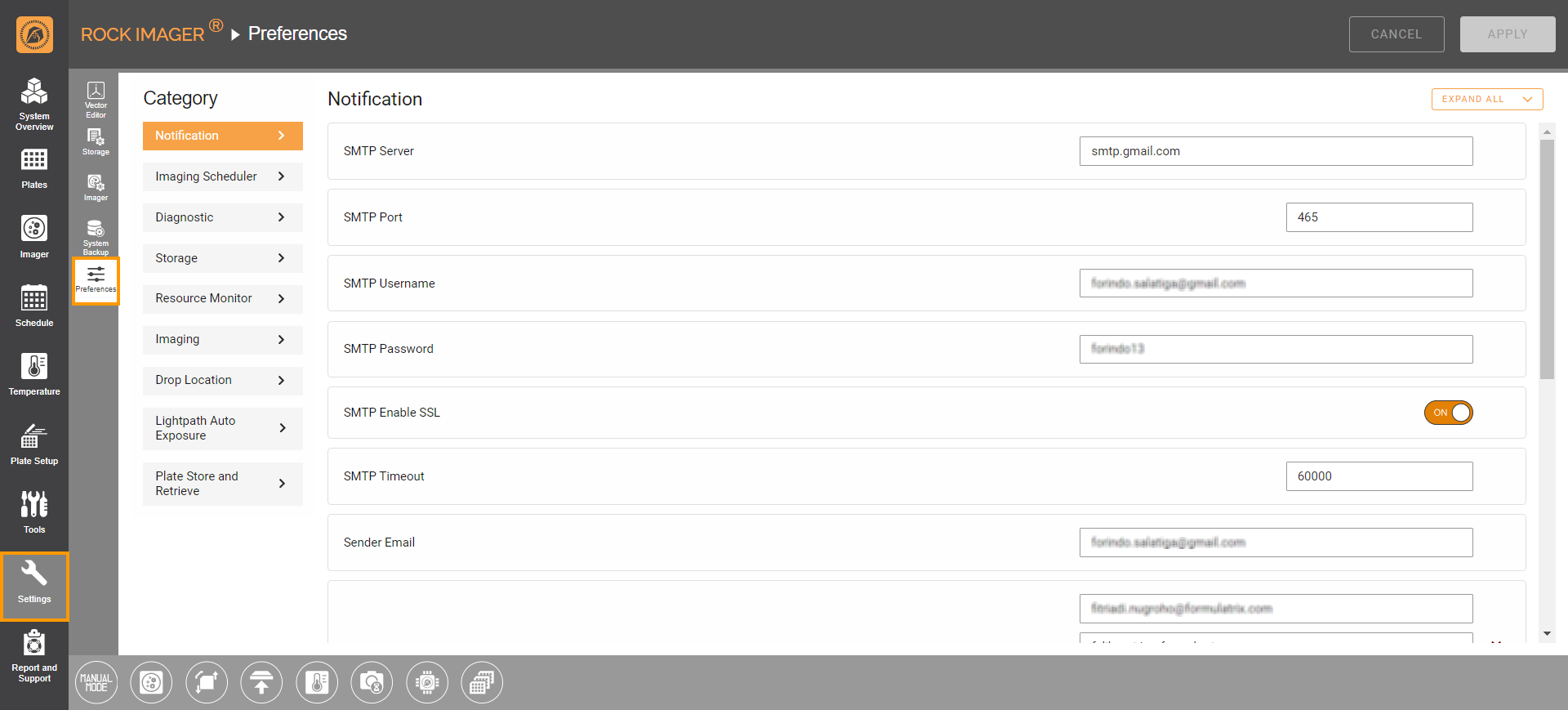

Preferences Sub-menu
