Here are the specifications for your FLO i8 system:
F20 Tip Type
| Target Volume (µL) | CV (%) | Relative Inaccuracy (%) |
| 20 | 2 | 1 |
| 5 | 3 | 5 |
| 1 | 5 | 5 |
| 0.5 | 10 | 10 |
F200 Tip Type
| Target Volume (µL) | CV (%) | Relative Inaccuracy (%) |
| 200 | 1 | 1 |
| 50 | 2 | 3 |
| 20 | 3 | 5 |
| 5 | 5 | 5 |
F1000 Tip Type
| Target Volume (µL) | CV (%) | Relative Inaccuracy (%) |
| 1000 | 1 | 1 |
| 250 | 1 | 1 |
| 100 | 1 | 1 |
| 10 | 3.5 | 7.5 |

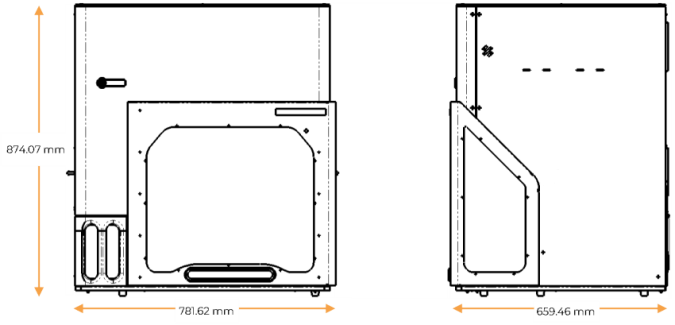

FLO i8 Front and Side Views
| FLO i8 Web V2 | ||
|---|---|---|
| Minimum | Recommended | |
| Browser | Google Chrome Version 69 | Google Chrome Version 70 or the latest version |
| Screen Resolution | 1280 x 768 pixels | 1366 x 768 pixels |
| Screen Size | 13.3 inch | 14 inch |
Input
Power Cord
| FLOi8Q-V20R021
|
