Monitoring the µPULSE Status from an External Device

Prerequisites:

You have plugged in the ethernet cable to the ethernet port on the back of the µPULSE instrument.
You have connected your external device to the same network as the µPULSE instrument.
Your device meets the Specifications.

On the Home Screen, tap the INFO AND SUPPORT menu.
Copy the IP address located under the QR code to your browser or scan the QR code from your smartphone or tablet.

On the Home Screen, tap the WIFI SETTINGS button located at the top-right of the screen.

The WIFI SETTINGS Button on the Home Screen

OR

Tap the SYSTEM SETTINGS menu and select .

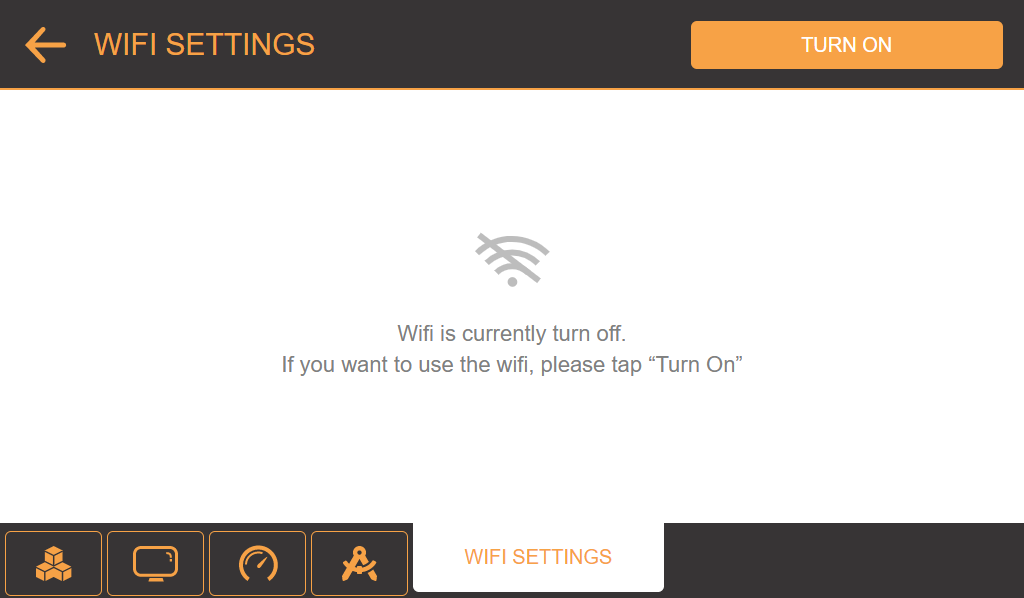

The WIFI SETTINGS Page
Tap the TURN ON button to activate the WiFi. The system will automatically scan the available WiFi network.

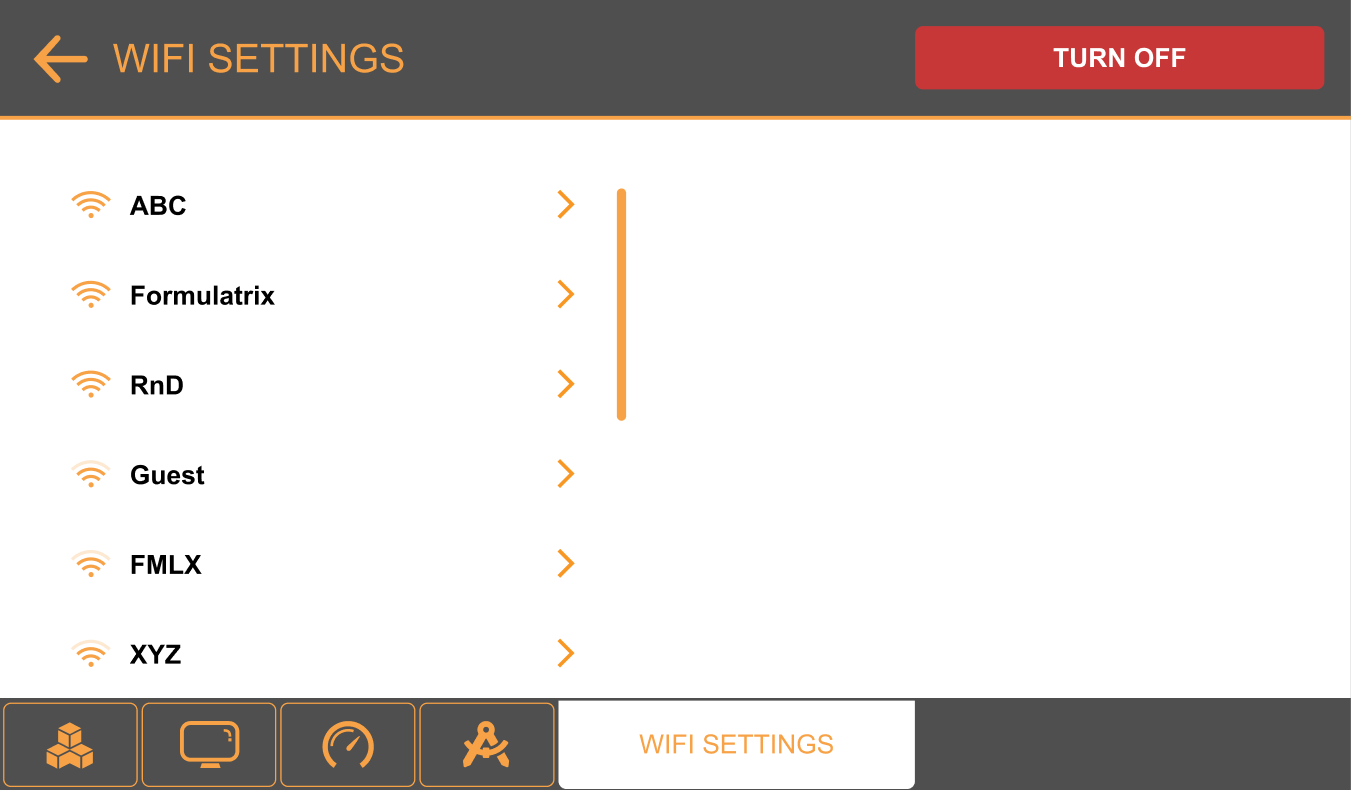

A List of the Available WiFi Network
Select the desired WiFi network from the list.
Optional: Tick the Connect Automatically checkbox to automatically connect to this network in the future.

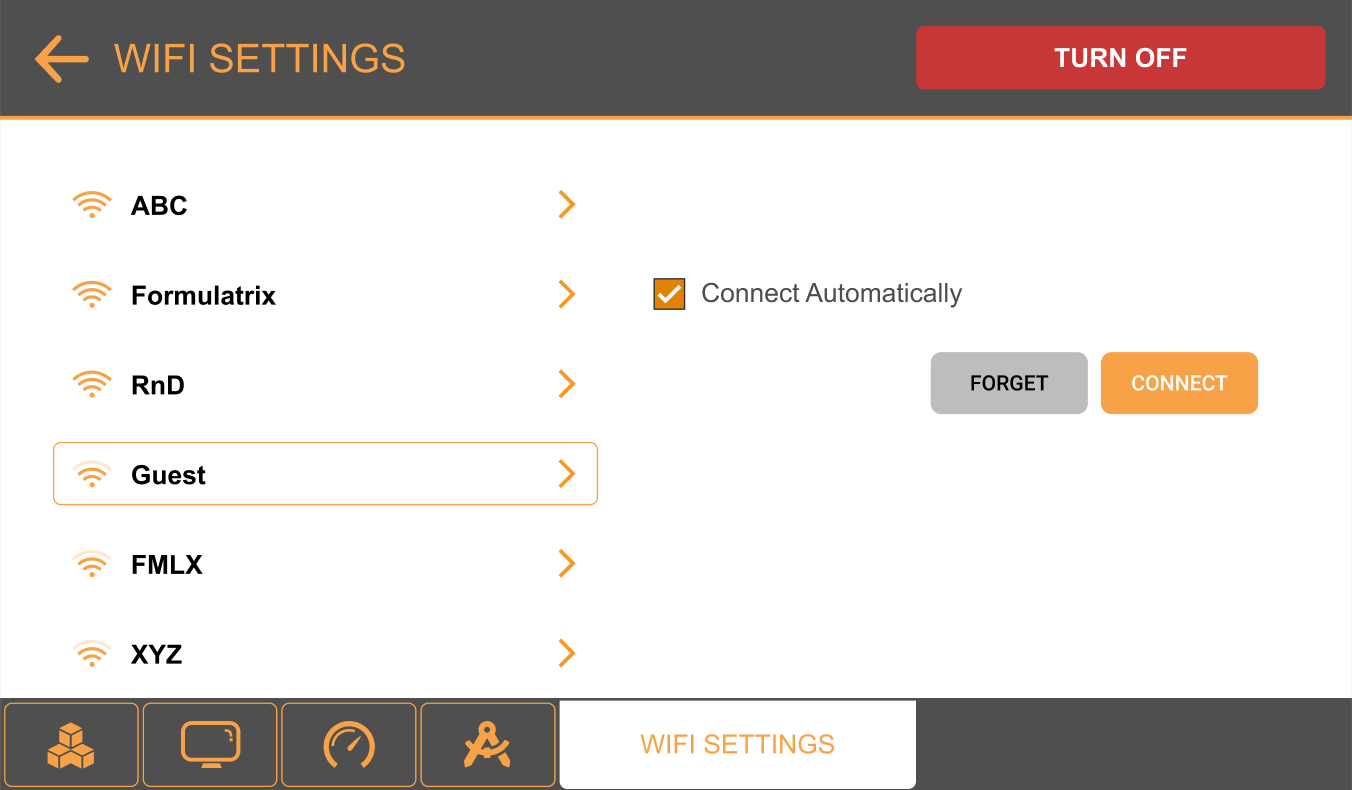

Connecting to a WiFi Network
Then, tap CONNECT.
Enter the password in the available field. Make sure that the password you entered is correct.

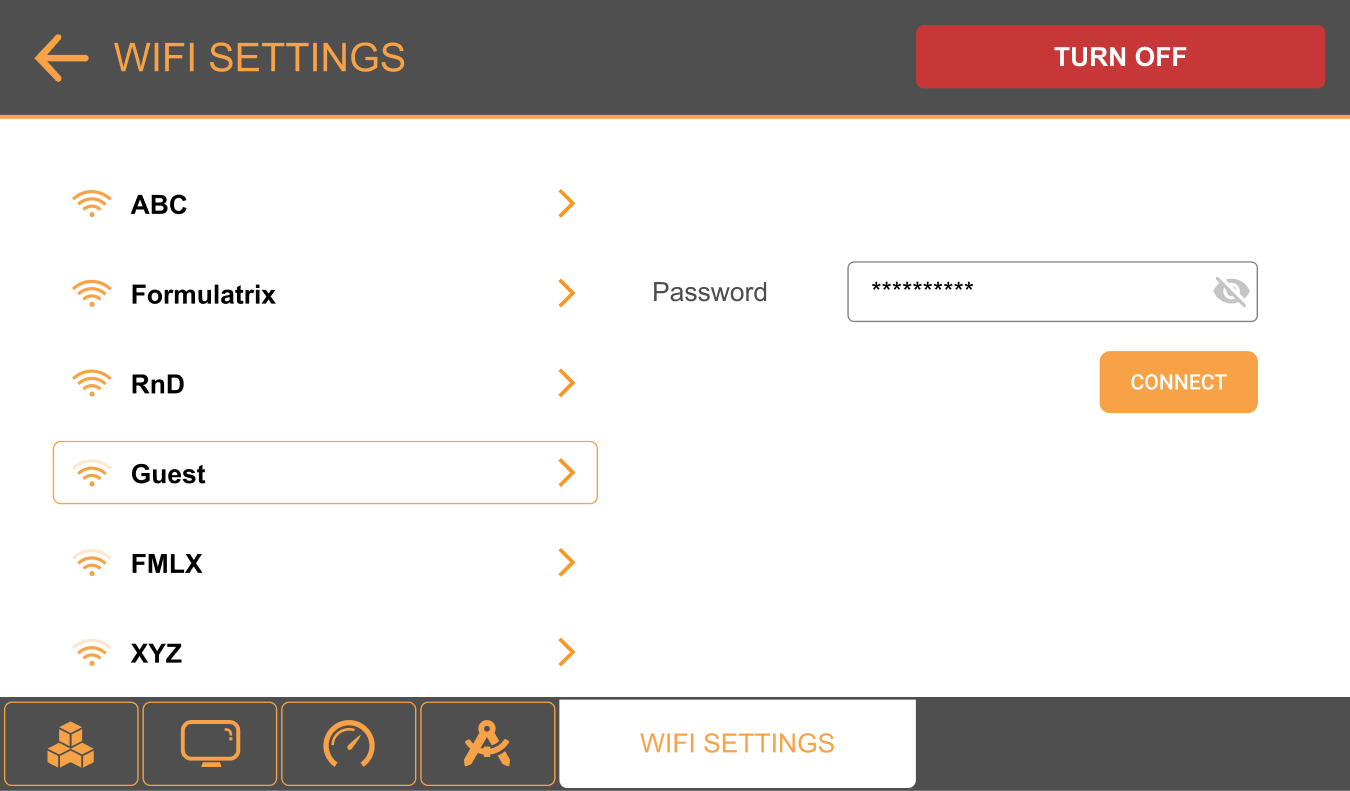

Typing the Password

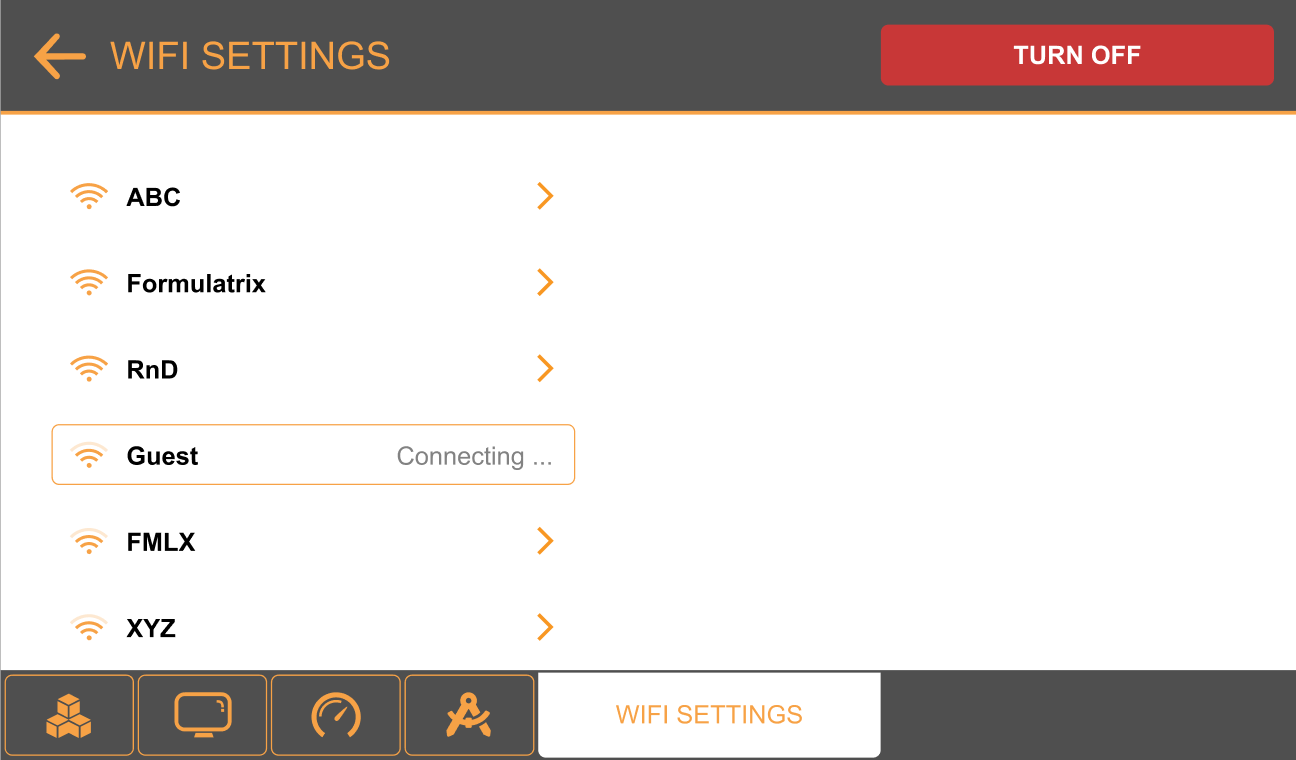

Tap the CONNECT button and wait while the system connects to the WiFi network.

Note: If the password is incorrect, the software will show an error notification and clear the password field.

Success to Connect to a WiFi Network
When the system is connected to the WiFi network, a green Connected indicator will be displayed next to the selected WiFi network.

Connected to the WiFi Network

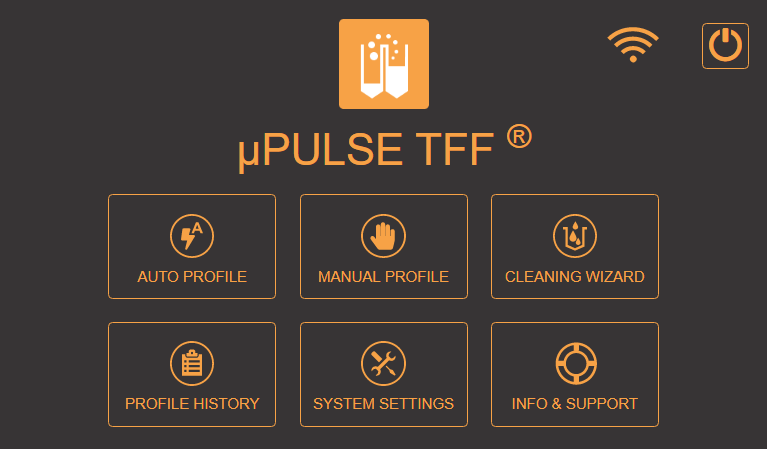

On the Home Screen, the WIFI SETTINGS button will turn to orange.

The WIFI SETTINGS button Turns Orange

On the Home Screen, tap the INFO AND SUPPORT menu.
Copy the IP address located under the QR code to your browser or scan the QR code from your smartphone or tablet.
