Specifications

Here are the specifications for the µPULSE instrument.

Dimensions

Width: 263 mm (10.4”)
Height: 318 mm (12.5”)
Depth: 323 mm (12.7”)
Weight: 6.8 kg (15 lbs)

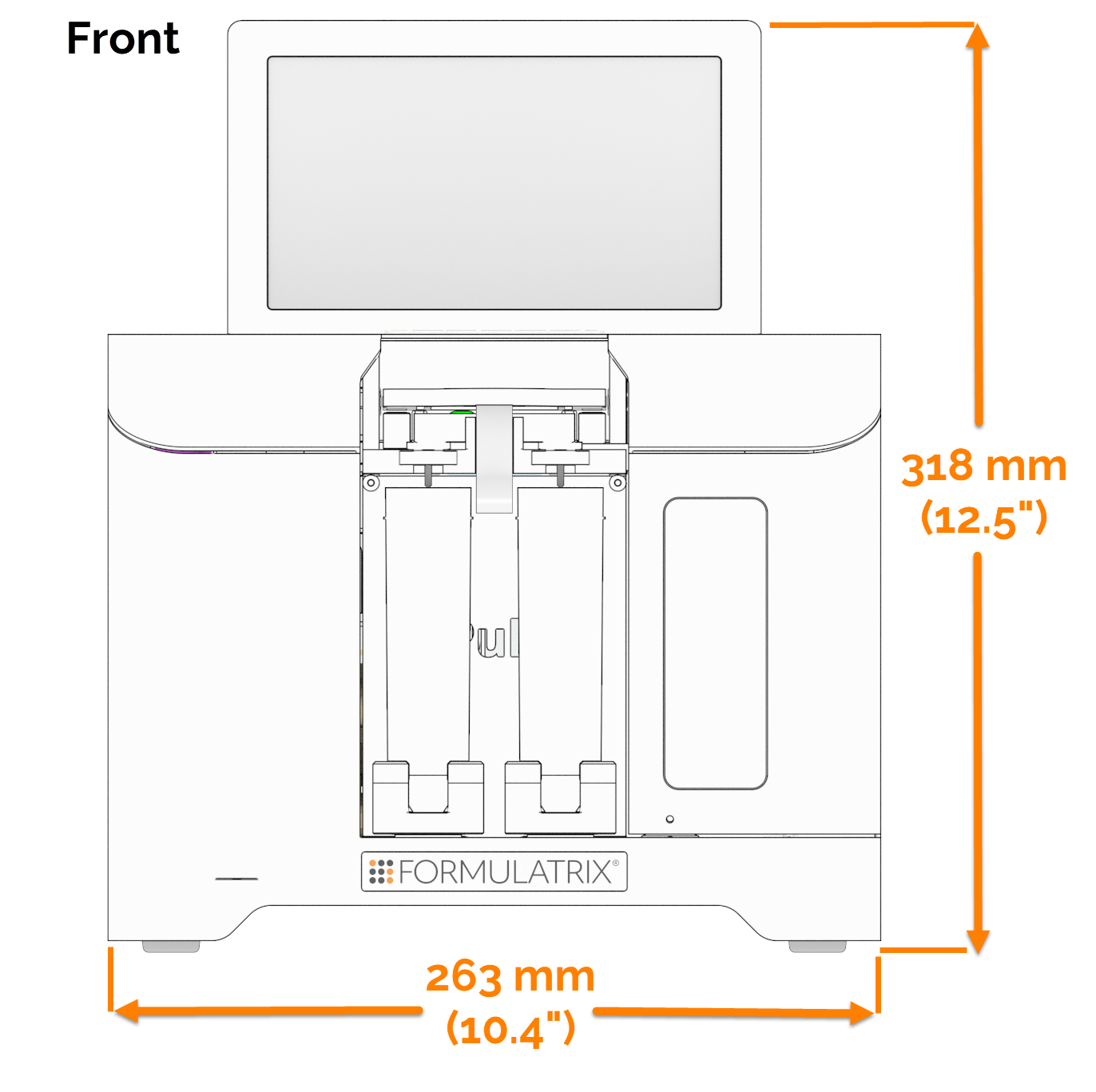

µPULSE Front View µPULSE Side View

µPULSE Front and Side Views

System Requirements

The following minimum requirements are required if you want to monitor µPULSE from an external device, such as a personal computer, laptop, or smartphone.

Device	Operating Systems	Browser	Version
Desktop	Windows	Internet Explorer	N/A
		Chrome	15++
		Edge	54++
		Firefox	52++
	MacOS	Safari	11++
Tablet	iOS (iPad)	Safari	11++
Tablet	Android	Chrome	52++
Mobile	iOS (iPhone)	Safari	9++
Mobile	Android	Chrome	45++

Electrical Requirements

Input

Voltage: 100 - 240 V AC
Frequency: 50 / 60 Hz

Output

Voltage 24 VDC
current: 11.9 A
Power: 250 W

Power Cord

PC power cord with a 3-pin shroud power connector
