Click EDIT to change settings.
-

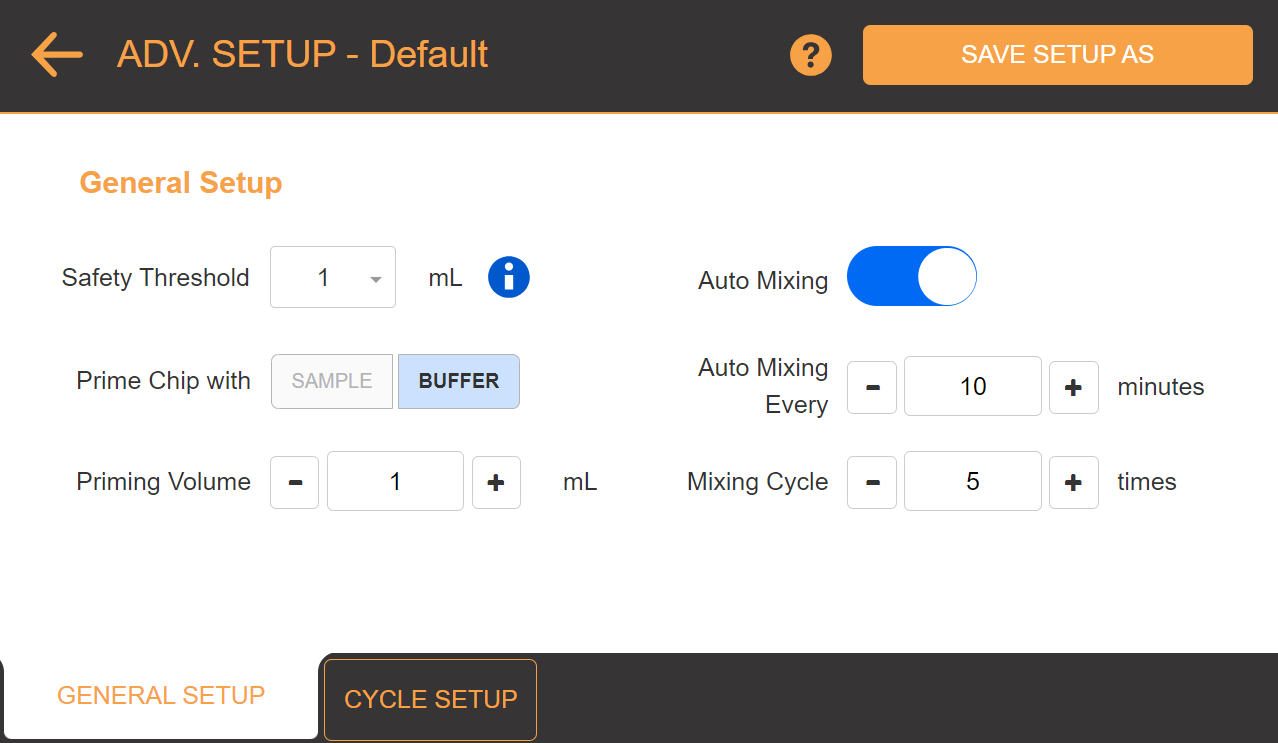

In the General Setup tab, adjust the Safety Threshold, choose the priming option between BUFFER or SAMPLE, and define the Priming Volume. Then, define the Mixing Cycle for manual mixing.
Note: For auto mixing sequence, switch on the Auto Mixing slider, and set the Auto Mixing Every Minute and Mixing Cycle.
General Setup in Advanced Setup Menu
-

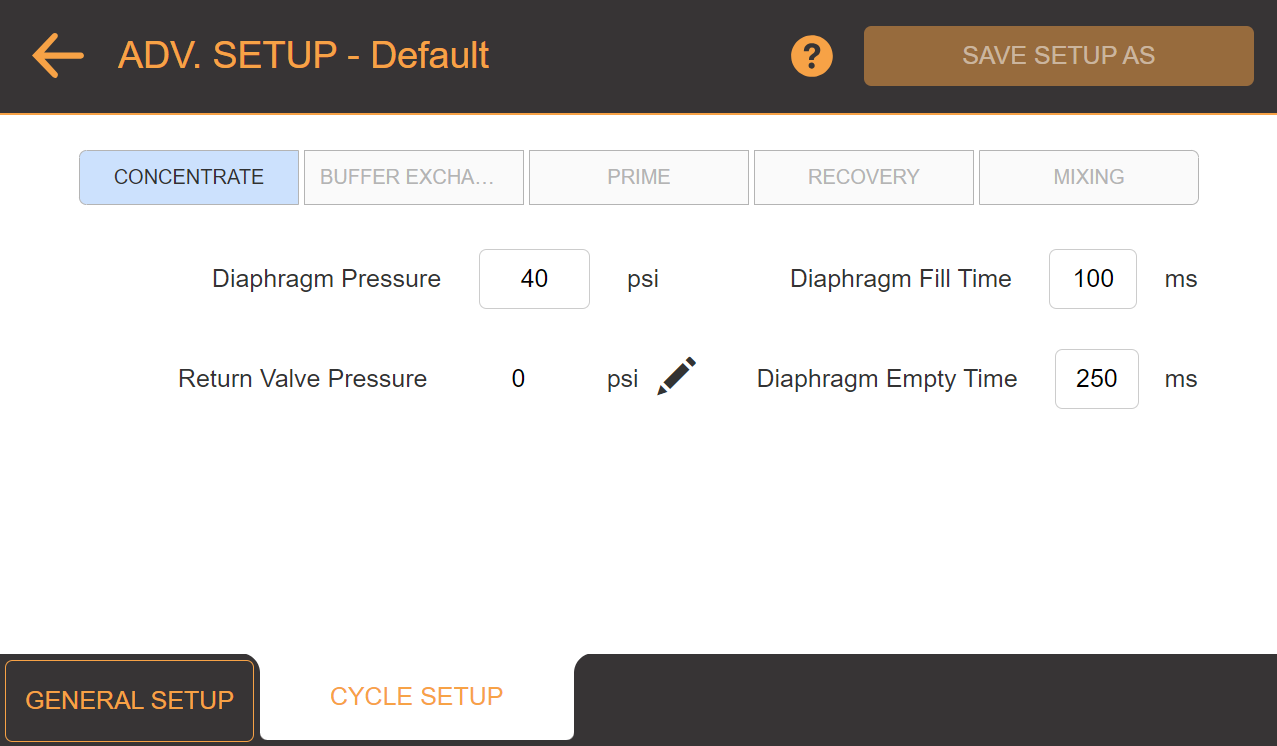

Click the CYCLE SETUP tab to adjust the Diaphragm Pressure, Return Valve Pressure, and fill/empty time.
Note: Tap the
button to adjust Return Valve Pressure.
Cycle Setup in Advanced Setup Menu
