Viewing a Plate's Schedule

Automatic imaging schedules are set in the ROCK MAKER software, but you can verify a plate's schedule or view it from ROCK IMAGER.

To view a plate's imaging schedule and information, right-click a plate on any of the Plates sub-tabs and select Plate Information.

Prerequisites

• The plate is inside the imager.
• You know the plate's project name, experiment name, plate number, dispense date, user name/owner, plate type, plate ID, barcode, location, and/or state.


To View a Plate's Automatic Imaging Schedule:

1. Use the Plates tab to locate your plate inside the imager. See Searching for Plates if you need additional assistance.

2. Right-click on the name of your plate and select Plate Information. A new window opens that contains two tabs: Schedule and Information. The Schedule tab contains the plate's entire automatic imaging schedule.

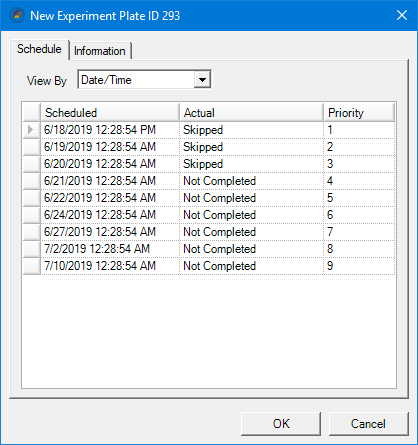

A Plate's Schedule

3. When you're done, click OK.

Related Topics

• Searching for Plates
• Automatic Mode
• Plates Tab
