ROCK MAKER enables you to centralize your synchrotron trip documentation, from marking a crystal as harvested, to storing it in a particular puck or dewar, to annotating whether or not the diffraction data has already collected and to what resolution. This centralization of your records helps you design future experiments. To track your crystals effectively, you should understand the process of documenting your crystal harvests and synchrotron trips. The flowchart below gives you a basic idea of the crystal tracking process.

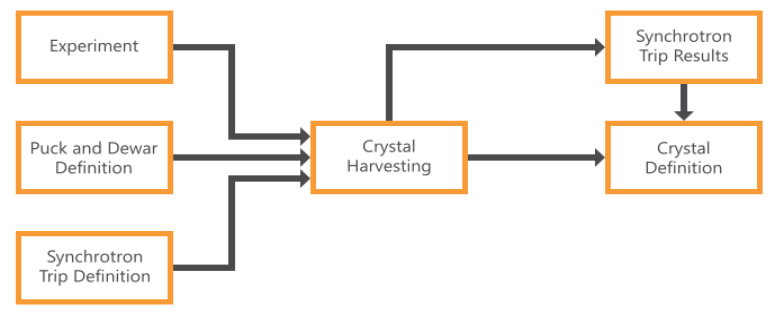

Crystal Management Chart
In this topic, you will learn about:
A Puck is where you will store the harvested crystal. Each Puck has multiple pins to put crystals in and a unique barcode for easy identification. There are four Puck types available in ROCK MAKER: Spine Puck, Uni Puck, ALS Puck and ACTOR Puck. For more information, read Creating a Puck Definition.
A Dewar is a double-walled flask of metal or silvered glass with a vacuum between the walls, that is used to hold liquids at well below temperature. It can hold multiple Pucks to be sent to a Synchrotron facility. For more information, read Creating a Dewar Definition.
In ROCK MAKER, you can document the Synchrotron Trips that your crystals take. ROCK MAKER enables you to document the pucks and dewars you've sent, or that you are going to send to a Synchrotron facility, and the data received after your crystals have been analyzed. For more information, read Creating a Synchrotron Trip.
In ROCK MAKER, a crystal definition panel will appear when you harvest your crystal from a drop. You can define any important information about the harvested crystal, such as: which puck the crystal will be stored in, which dewar the puck will be stored in, which synchrotron trip the dewar will be included in, and the owner of the harvested crystal. After the Synchrotron Trip is completed, you can attach your output.sca and scale.log files, along with documenting the resolution to which the crystal data was collected. For more information, read Harvesting Crystals.
|
|
