Two plate definitions are available in the Labware List to get you started with F.A.S.T. You can add more labware for your experiments in the Labware Manager.
Note: Currently, the Labware Manager cannot measure common protein crystallization microplates with the combination of protein wells and reagent reservoir.

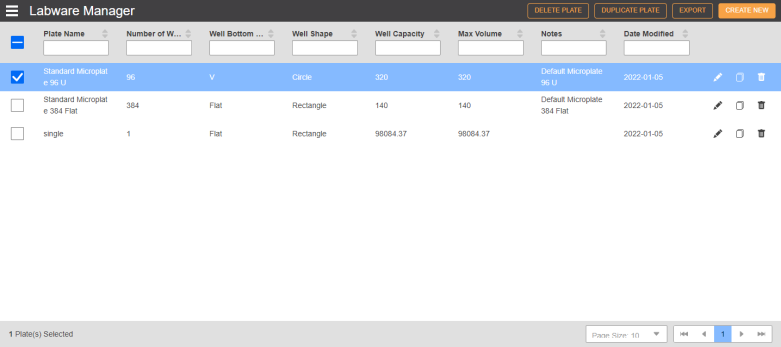

The Labware Manager page consists of a list of plates with Plate Name, Number of Well, Well Bottom Profile, Well Shape, Well Capacity, Max Volume, Notes, Date Modified, and Search fields.
The following table describes the options available in the Labware Manager.
Labware Manager
| Button/Icon | Description |
|
DELETE PLATE button Or Delete icon |
Click this button/icon to delete the selected plate definition. Warning! After removing the plate definition, the system will not be able to run the related protocols. This action cannot be undone. |
|
DUPLICATE PLATE button
Or
Duplicate icon |
Click this button/icon to duplicate the selected plate definition. |
EXPORT button |
Click this button to export the selected plate definition to be used for future reference across the F.A.S.T. instruments. |
IMPORT button |
Click this button to import a plate definition file in .json format from your drive. |
CREATE NEW button |
Click this button to create a new plate definition. See Creating a New Plate Definition for more information. |
Edit icon |
Click this icon to edit the selected plate definition. You will be directed to the Plate Editor page. |
Use the Search field under the column definition to find a specific plate.
Searching a Specific Plate
|
|
