Software Overview

The µPULSE - TFF System control software comprises six menus, a WIFI SETTINGS button , and a Shutdown button.

µPULSE Software Home Screen



Menu/Button Description - What To Do
WIFI SETTINGS BUTTON

Tap the WIFI SETTINGS button to activate the WIFI connection and connect to a network. You can now monitor your µPULSE status remotely from an external device by following these steps.
SHUTDOWN BUTTON

Tap the SHUTDOWN BUTTON to shutdown the instrument. Please make sure that the tubes are removed before shutting down.

AUTO PROFILE

The AUTO PROFILE menu allows you to create and run a profile, as well as set up advanced settings that you can save and re-use. Tap AUTO PROFILE to see more options from the menu. To find out more, see Setting Up Auto Profile.

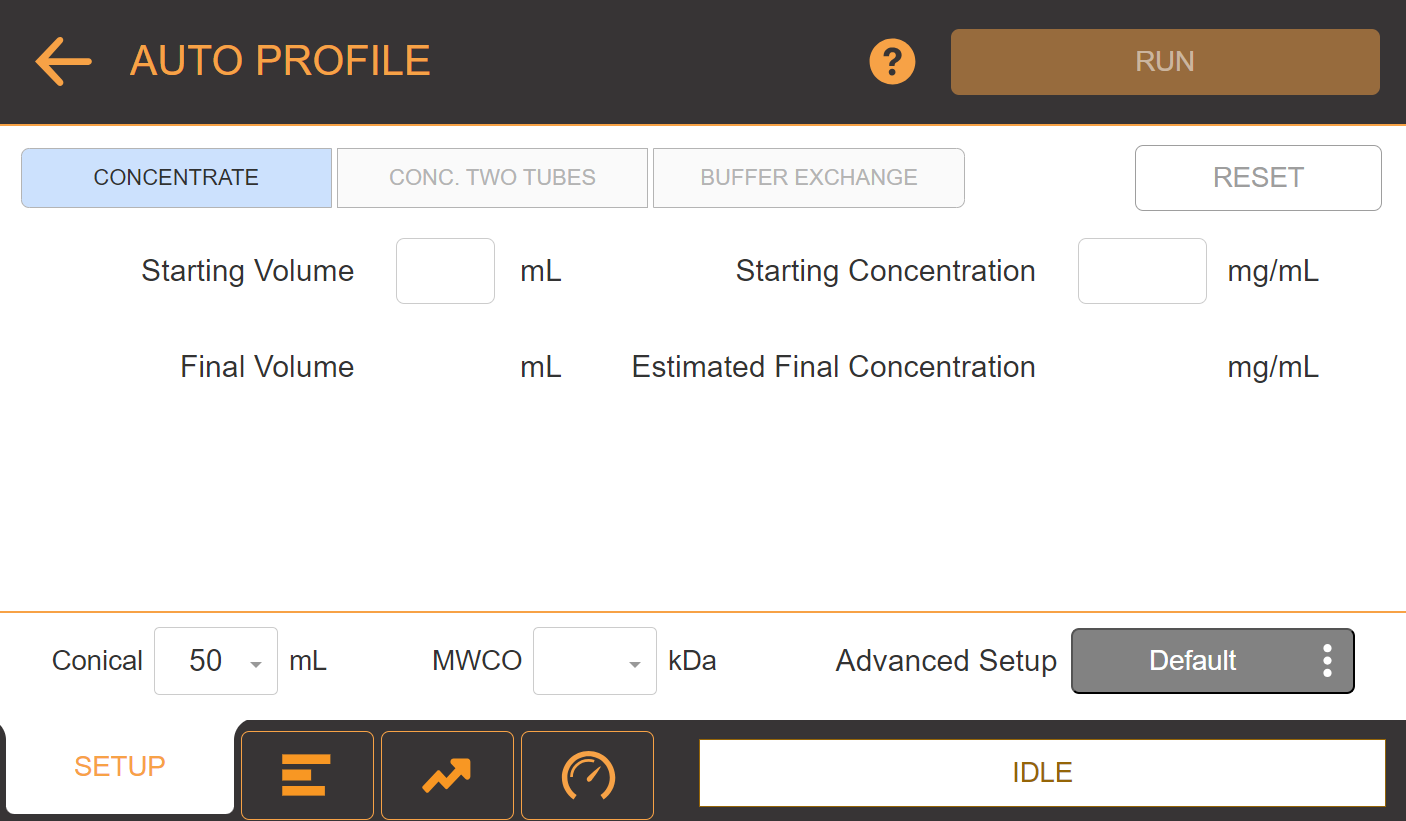

The AUTO PROFILE Menu

MANUAL PROFILE

In MANUAL PROFILE, you can create your own profile sequence based on the number of pumps or cycle time (in minutes). See Setting Up Manual Profile to configure more features.

The MANUAL PROFILE Menu

CLEANING WIZARD

The CLEANING WIZARD menu provides you with an on-screen tutorial to clean the µPULSE liquid path. See Cleaning and Storing Filtration Chip for more information.

The CLEANING WIZARD Menu

LOGS

The LOGS menu provide you with two types of features:

  • PROFILE HISTORY — Stores error log files and complete protocol data whenever PULSE executes.

  • COMPLETE LOGS — — Store all instrument activities. You can open and export all logs from here.

For more information, see Downloading LOGS.

The PROFILE HISTORY Menu

SYSTEM SETTINGS

The SYSTEM SETTINGS menu consists of five sections:

  • DEVICE SETTINGS — Configures the µPULSE instrument settings such as Device Name, Organization name, and Device Date and Time settings.

  • DISPLAY SETTINGS — Configures the font size of the touch screen.

  • CALIBRATION WIZARD — Checks and/or calibrates the volume sensor.

  • WIFI SETTINGS — Connects the instrument to a WiFi network and monitor the µPULSE status remotely using your external device.

The SYSTEM SETTINGS Menu

INFO & SUPPORT

In the INFO AND SUPPORT menu you can view information such as:

  • Device Serial Number

  • Firmware Version

  • Software Version

  • Build Date — Shows the exact date of the µPULSE software build.

  • Host Name

  • IP Address — Type the IP address into the address bar of your browser to monitor the concentration progress on your external device.

  • License Status — Shows the status of the license whether it is Activated or Not Activated.

  • License Type — Shows the current license, whether it is Temporary or Perpetual.

  • License Modified Date — Shows the date when the license was last modified.

  • Eligible for Updates Through

  • Client ID

  • UPDATE — Update the µPULSE software if a new version is available.

  • QR Code — Scan the QR Code from your smartphone or tablet to monitor the µPULSE from your device.

  • ACTIVATE — Tap the ACTIVATE button to activate the license.

  • Contact — Shows the FORMULATRIX contact information.

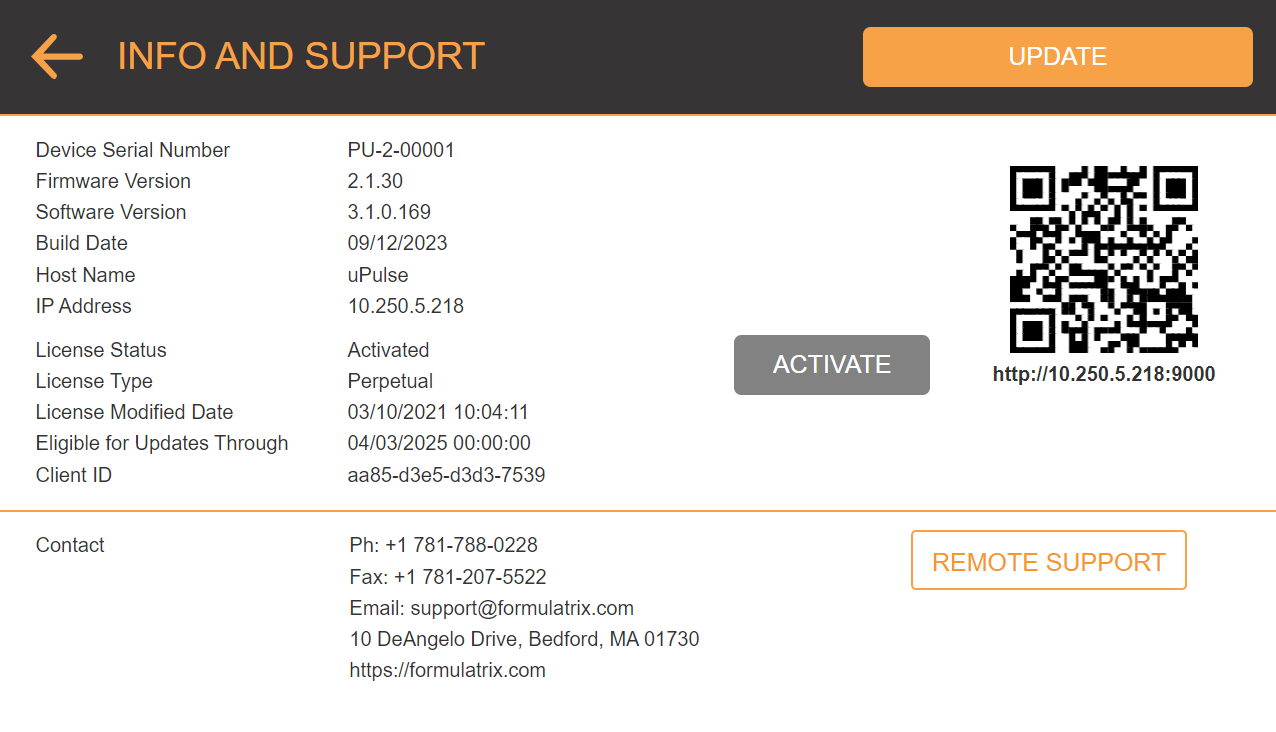

The INFO AND SUPPORT Menu
