Event Log Table

Track your plate activity over time in the Event Log Table. It's easily accessible through the Report and Support menu.

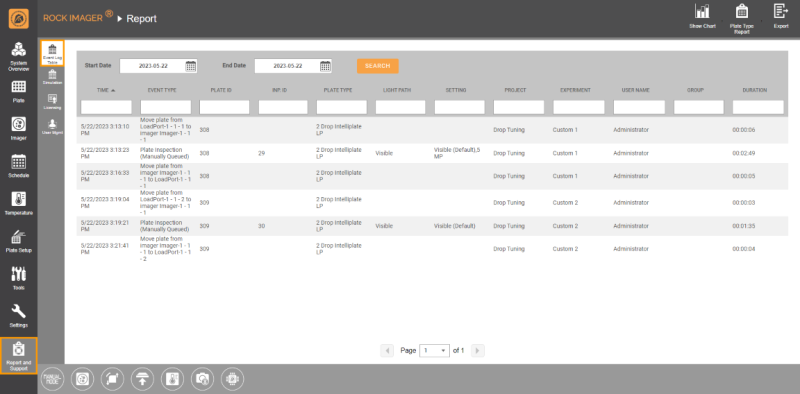

Event Log Table

Item	Description
Start Date	Defines the first day of your event within a certain period.
End Date	Defines the last day of your event within a certain period.
Time	Specifies the date and time of your event.
Event Type	Shows the activity in a certain period. It can be MovePlate, ImagePlate, OverviewPlate, ReserverModules, ReleaseModules, Scan, EjectLoadport, or Diagnose.
Plate ID	Informs the plate ID of an event.
Inspection ID	Informs the inspection ID of an event.
Plate Type	Informs the plate type used in an event.
Light Path	Defines the optical pathway used in an event.
Setting	Shows the imaging setting used in an event.
Project	Describes the project name imported from the ROCK MAKER Software or another LIMS.
Experiment	Shows the experiment name imported from the ROCK MAKER Software or another LIMS.
User Name	Shows which user creates the experiment.
Group	Shows which group the user belongs to in the ROCK MAKER Software or another LIMS.
Duration	Defines how long an event occurs.

There are three icons on the upper-right corner of the screen:

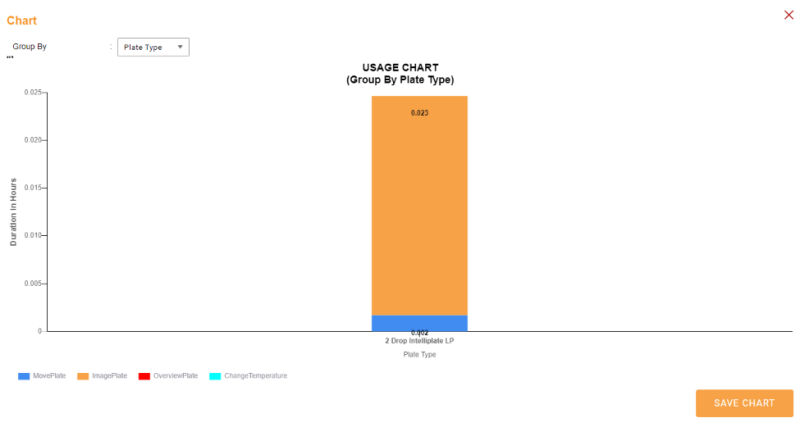

The Show Chart icon displays the event log in a chart. The chart provides visual feedback about how the imager is used. The X-axis can be set to Plate Type, User Name, or Group, and the Y-axis displays Duration in Hours. The chart can be saved as an image, and data can be exported as a txt file. If you have ROCK IMAGER with multiple light paths, you can further organize data by light path.

Event Log Chart

The Plate Type Report icon presents a list of plate types in a txt file.
The Export icon functions to export your event log to a txt file.
