Importing Labware and Profile CSV

You can externally generate Labware and Profile data in CSV format and upload them to the aμtoPULSE software using the Import feature in the Editor page. This streamlines protocol design, as the software will convert the CSV files into:

  • Labware CSV: The deck configuration containing labware and sample definitions

  • Profile CSV: The filtration settings defining each profile

Ready-to-use templates are available for you to fill out, upload, and modify as needed.

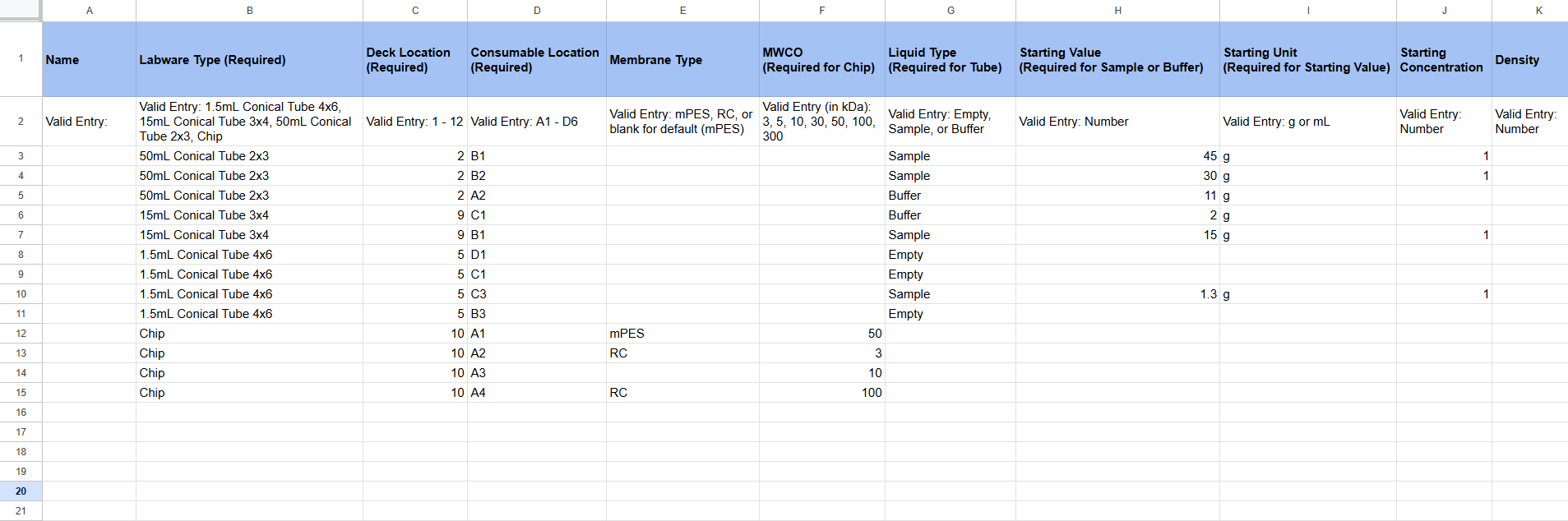

Labware CSV File Template

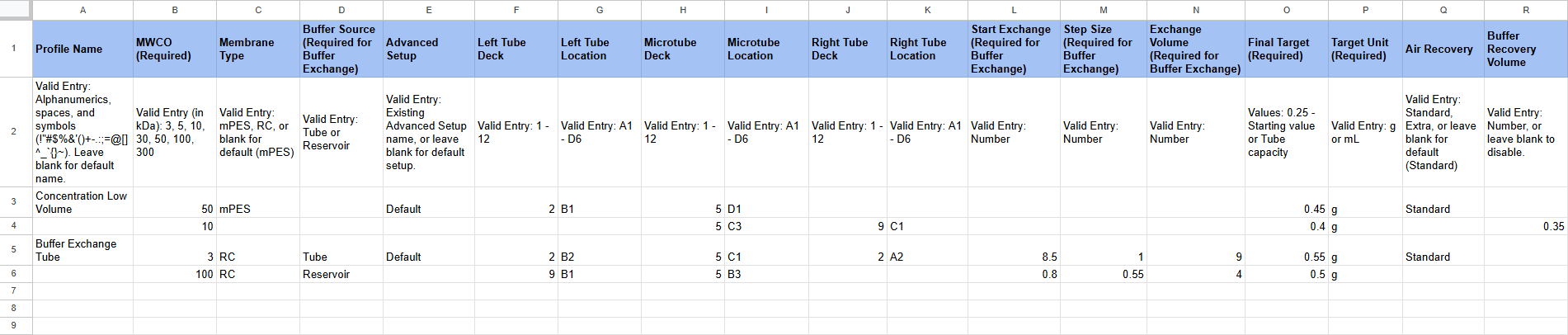

Profile CSV File Template

CSV Entry Guidelines

Always use the provided templates for initial imports and keep an original copy for future use. To download the templates:

  1. Go to the Editor page, and click Import importbutton.

  2. In the Import CSV dialog, select Get Profile Template or Get Labware Template.

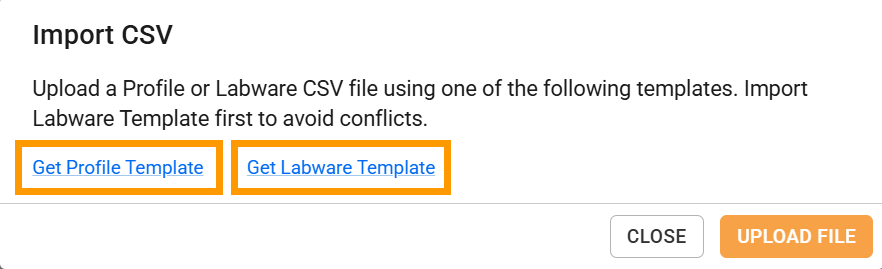

    Select the Template

Template and Header Rules

  • The headers in the template are required. Do not change, remove, or rename them.

  • The second row contains details on the accepted values for each header column. Do not modify or delete this information.

  • Follow the format in the second row and verify the values to prevent invalid entries. For example, the MWCO column must be a whole number without “kDa”.

  • Ensure you fill all required fields in each row used.

  • Some fields have additional rules, see the headers below:

    Template

    Header

    Required Entry

    Labware

    Starting Value (Required for Sample or Buffer)

    Enter a valid value between 0.1-50.

    Starting Concentration

    Value: ≥ 0.001

    Profile

    Start Exchange (Required for Buffer Exchange)

    Final Target ≤ value ≤ total Starting Sample Value

    Step Size (Required for Buffer Exchange)

    0.1 mL ≤ value ≤ (tube capacity - Start Exchange)

    Exchange Volume (Required for Buffer Exchange)

    0.1 ≤ value ≤ total Starting Buffer Value

    Final Target

    0.25 - Starting Value or Tube

Before Importing

  • Maintain template column order. Do not rearrange or remove any headers.

  • Review all data entries before importing. If errors occur during upload, check the error messages and correct the CSV file before re-importing. See step 2 below.

  • Ensure modified files are saved in .CSV format.

  • When importing Labware and Profile files together, upload the Labware file first.

    Note

    If any entry in the Profile template contains an invalid value, the profile will be imported with a warning icon warningicon. Review and correct the values before running the profile.

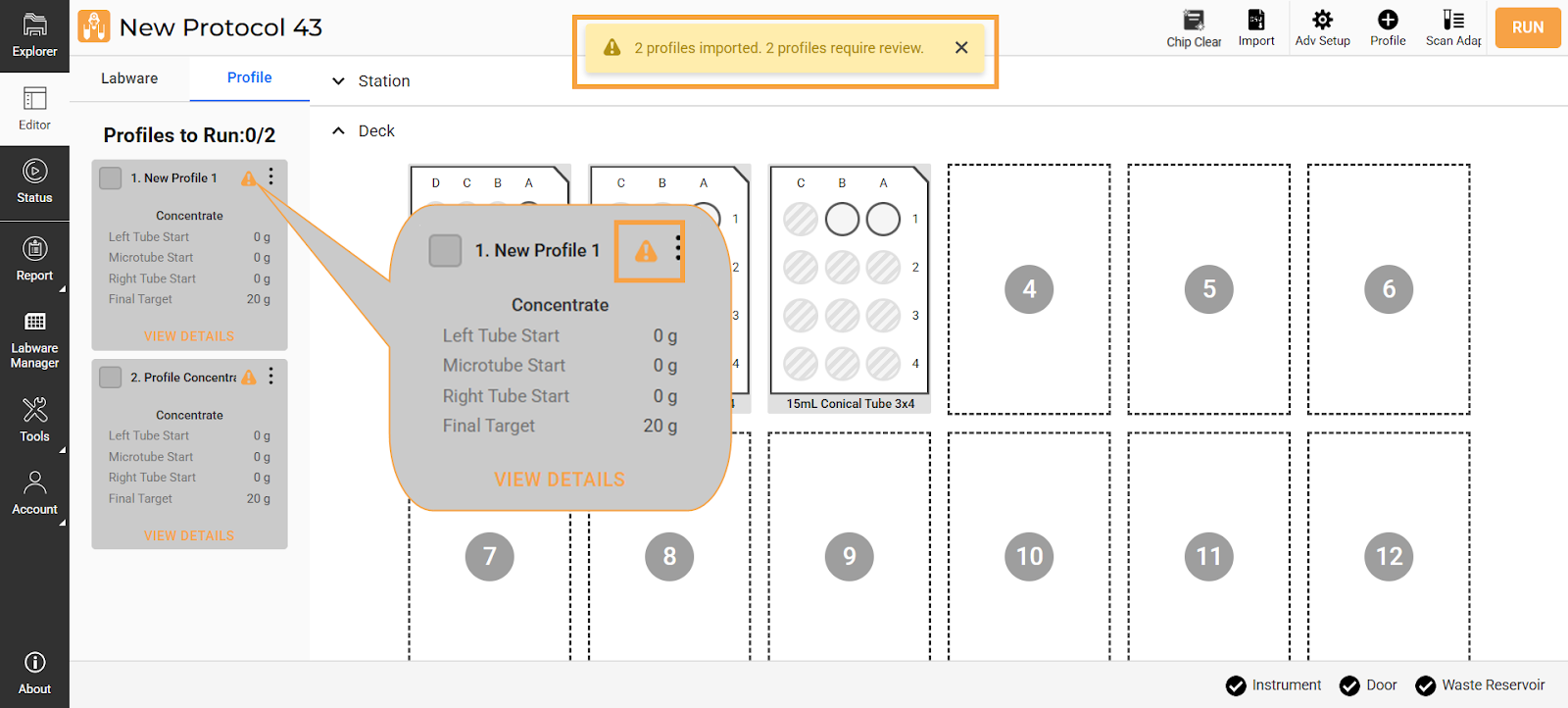

    Profile Imported with Warning Icon

Importing the CSV Files

Prerequisites:

To import the CSV file:

  1. In the Editor page, click the Import button importbutton on the Command Bar.

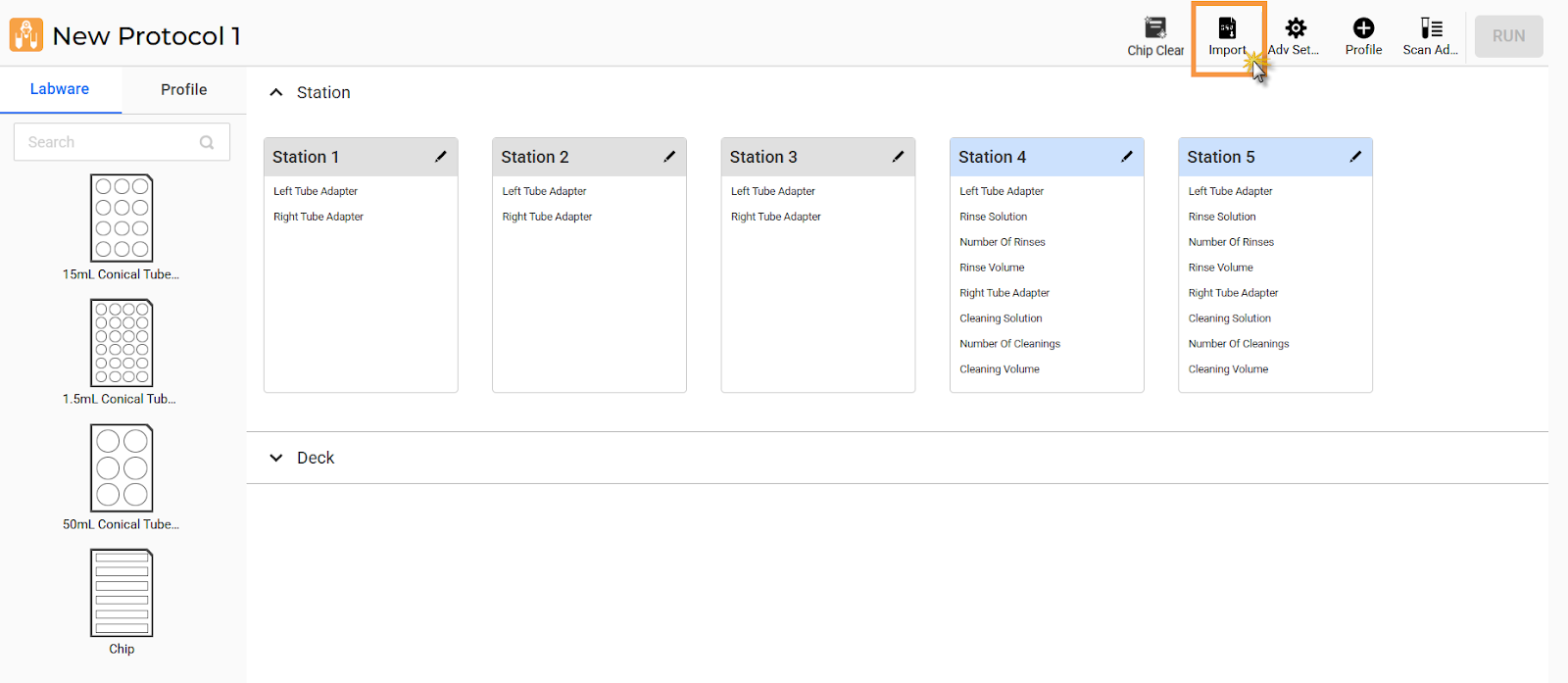

    Import Button in the Editor Page

  1. Click UPLOAD FILE and select the CSV file from your computer. If you want to upload the Labware and Profile files at the same time, upload them accordingly.

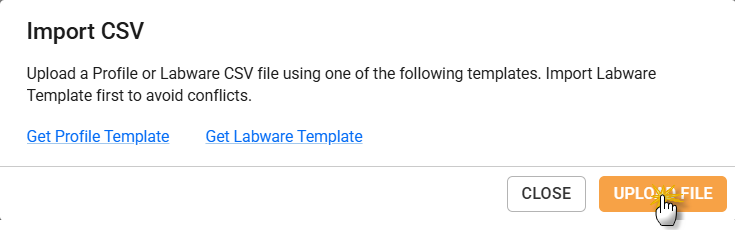

    Click UPLOAD FILE

Important

When uploaded, invalid values or conflicting data will prompt an error message listing all errors with the imported file. Correct the displayed errors in your CSV file before re-uploading.

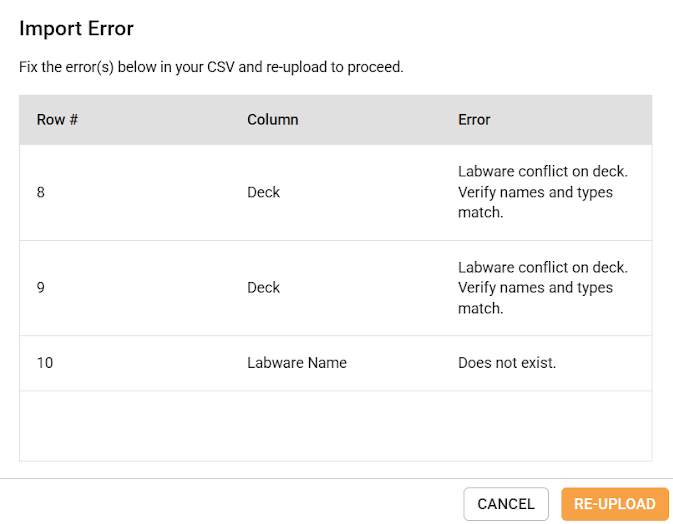

Labware Import Error

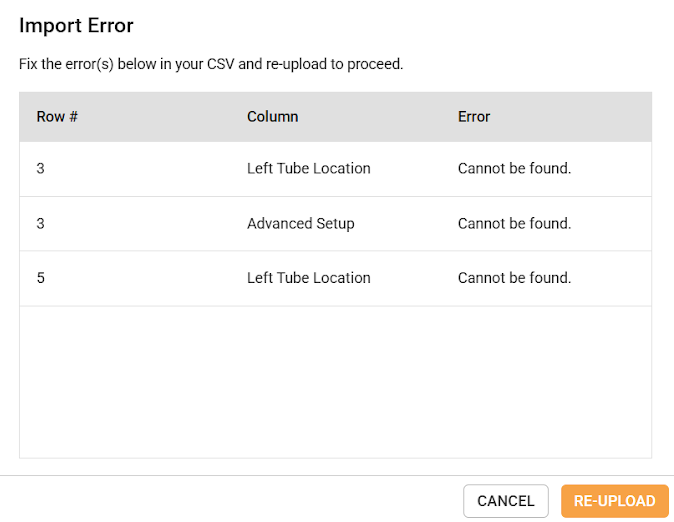

Profile Import Error

  1. Once the upload is successful, the labware/deck and profile configuration will be automatically created on the Editor page. Be sure to review the imported labware and profile data settings before running the protocol.

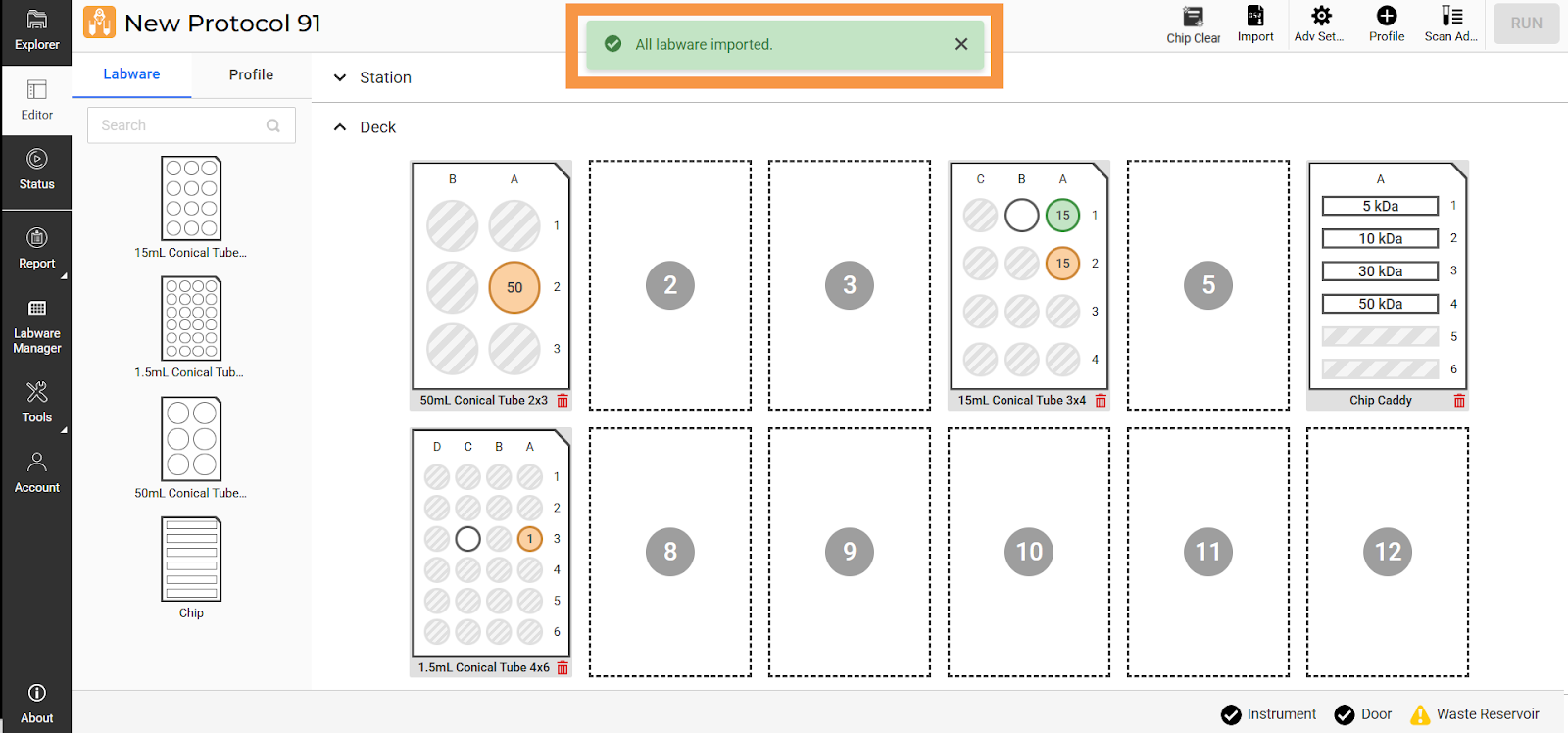

    Labware Successfully Imported
